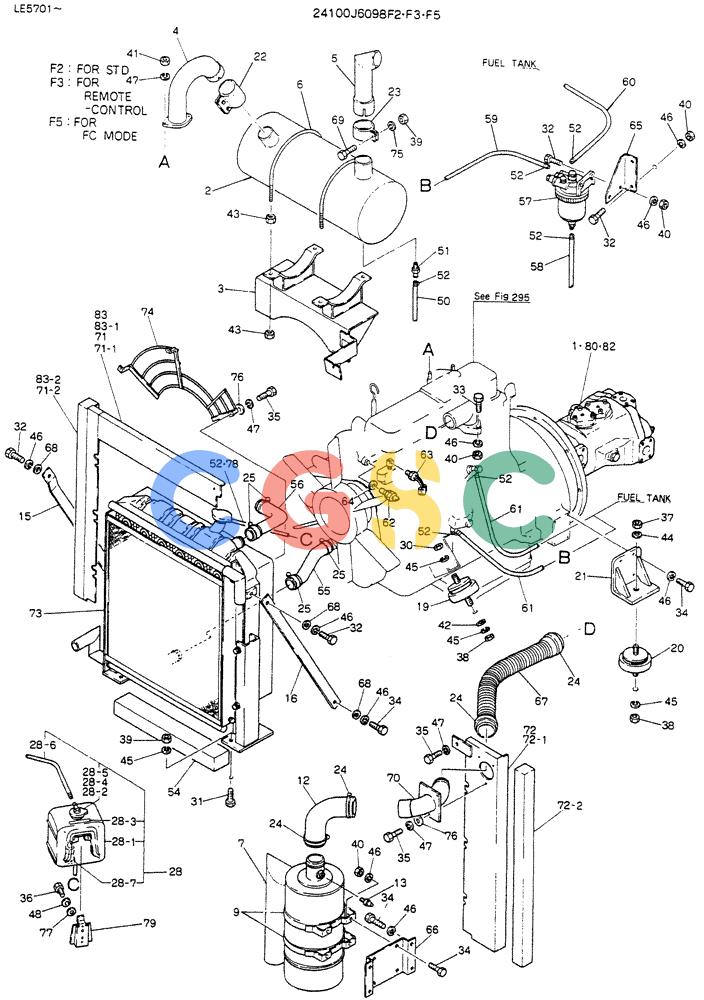

| . . | 24100J6098F3 | [1] | POWER-PLANT | |
| 2. | 2427U314F1 | [1] | MUFFLER | KOB |
| 3. | 2416N322S | [1] | BRACKET | |
| 4. | 2427P1849 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 5. | 2418P1I778 | [1] | PIPE,TAIL | |
| 6. | 2420T4491 | [2] | U-BOLT | KOB |
| 7. | 2446U240F1 | [1] | CLEANER,AIR,P.318-01,LE5701-5856 | |
| . . | 2446U240F2 | [1] | AIR CLEANER | KOB |
| 9. | 2432Z162D3 | [2] | BAND ASSY | BAND ASSY |
| 12. | 2444Z2103 | [1] | ELBOW | KOB |
| 13. | 2450U5D3 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 15. | 2416T13052 | [1] | STAY | |
| 16. | 2416T13214 | [1] | STAY | |
| 19. | 2416R222 | [2] | RUBBER SLEEVE | KOB |
| 20. | 2416U23D3 | [2] | RUBBER SLEEVE | KOB |
| 21. | 2416P8677 | [2] | BRACKET | |
| 22. | 2432T812F1 | [1] | CLAMP | KOB |
| 23. | 2432T2279 | [1] | CLAMP | KOB |
| 24. | ZC15X06000 | [4] | CLIP | KOBCLAMP,HOSE |
| 25. | ZC15X04000 | [4] | CLIP | KOB |
| 28. | 2427U334F1 | [1] | TANK | KOB |
| 28-1. | 2427U334S1 | [1] | RESERVE | |
| 28-2. | 2427U334S2 | [1] | HYD CONNECTOR | KOBCONTROL ASSY |
| 28-3. | 2427U203S3 | [1] | LABEL | KOB |
| 28-4. | 2427U334S4 | [1] | CAP | KOB |
| 28-5. | 2427U334S5 | [1] | PACKING | KOBPACKING |
| 28-6. | 2427U334S6 | [1] | PIPE | KOB |
| 28-7. | 2427U203S7 | [1] | RESERVE | |
| 30. | 2420Z993 | [2] | NUT | HIT |
| 31. | ZS13C12035 | [4] | CAPSCREW | KOBSCREW M12x1.75x35mm Superseded by part number: ZS18C12035 |
| 32. | ZS13C10030 | [8] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| . . | ZS13C10030 | [4] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 33. | ZS13C10035 | [2] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 34. | ZS13C10025 | [16] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 35. | ZS13C08020 | [7] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| . . | ZS13C08020 | [4] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 36. | ZS18C06012 | [2] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
| 37. | ZN16F16013 | [2] | NUT | |
| 38. | ZN13F12010 | [4] | NUT | KOB Superseded by part number: ZN18F12010 |
| 39. | ZN13C12010 | [5] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 40. | ZN13C10008 | [10] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| . . | ZN13C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 41. | ZN13F08007 | [2] | NUT | NUT |
| 42. | R16T0152D1 | [2] | WASHER | KOBFlat -- ID 13 x OD 24 x Th 3.2mm |
| 43. | ZN12C08007 | [8] | NUT | KOBM08x1.25mm Superseded by part number: 77278252, ZN18C08007 |
| 44. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 45. | ZW22X12000 | [11] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 46. | ZW22X10000 | [26] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| . . | ZW22X10000 | [22] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 47. | ZW22X08000 | [9] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| . . | ZW22X08000 | [6] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 48. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 50. | 2420Z795D3 | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 51. | 2444Z1293D8 | [1] | LUBE NIPPLE | KOB1/4"PTx43mm Long Superseded by part number: R44T0022 |
| 52. | ZC15X01000 | [9] | CLIP | KOB |
| . . | ZC15X01000 | [6] | CLIP | KOB |
| 54. | 2416Z459 | [1] | INSULATOR | KOB |
| 55. | 2444Z2357 | [1] | FLEXIBLE HOSE | KOB |
| 56. | 2444R944 | [1] | FLEXIBLE HOSE | KOB |
| 57. | 2446U234 | [1] | FILTER | KOB Superseded by part number: 2446U234F3 |
| 58. | 4018Z1D13 | [1] | TUBE | TUBE |
| 59. | 4018Z1D4 | [1] | TUBE, VINYL | TUBE, VINYL |
| 80. | 4018Z1D33 | [1] | FLEXIBLE HOSE | KOB |
| 61. | 4018Z1D34 | [1] | HOSE | KOB |
| . . | 4018Z1D34 | [2] | HOSE | KOB |
| 62. | 2489R148 | [1] | SENDER UNIT | KOB |
| 63. | 2479R546 | [1] | THERMOSTAT | KOB |
| 64. | 2418T17274 | [1] | SPACER | KOB |
| 65. | 2416T13219 | [1] | BRACKET,LE5701-5703 | |
| 66. | 2416T13254 | [1] | BRACKET | |
| 67. | 2444Z2363 | [1] | FLEXIBLE HOSE | KOB |
| 68. | ZW11X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 69. | ZS18C12040 | [1] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 70. | 2418P12086 | [1] | CAPSCREW,LE5701-5970 | |
| 71. | 2414T2759 | [1] | COVER ASSY | |
| 71-1. | 2414T2760 | [1] | COVER | |
| 71-2. | 2416Z502 | [1] | CUSHION | KOB |
| 72. | 2414T2761 | [1] | COVER ASSY | |
| 72-1. | 2414T2762 | [1] | COVER | |
| 72-2. | 2416Z502 | [1] | CUSHION | KOB |
| 73. | 2452U377F2 | [1] | RADIATOR,P.321-01,LE5701-5910 | |
| . . | 2452U377F3 | [1] | RADIATOR,P.321-01,,LE5911- | |
| 74. | 2414P3901 | [1] | GUARD,FAN,LE5701-5910 | |
| 75. | ZW16X12000 | [6] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 76. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| . . | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 77. | ZW16X06000 | [1] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 78. | 2420Z912D7 | [1] | FLEXIBLE HOSE | KOB |
| 79. | 2416Z519 | [1] | U-BRACKET | KOB |
| 80. | 24100N2972F2 | [1] | PUMP CONNECT,P.301-01 | |
| 83. | 2414T2813F1 | [1] | COVER ASSY,LE5971- | |
| 83-1. | 2414T2814 | [1] | COVER | |
| 83-2. | 2416Z502 | [1] | CUSHION | KOB |
