神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (04-010) - CONTROL ASSY, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
206 次

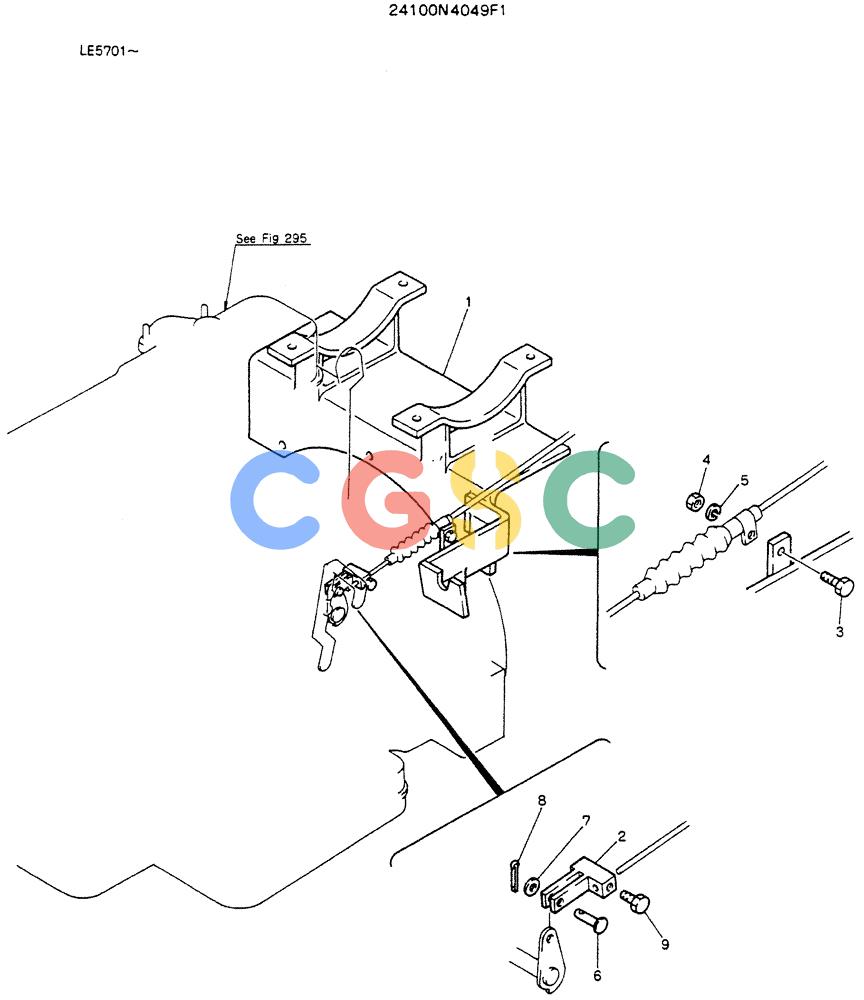

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4049F1 | [1] | CONTROL ASSY,ENGINE | |
| 1. | 2416P8766 | [1] | REWORK,BRACKET | |
| 2. | 2406T2370 | [1] | YOKE | |
| 3. | ZS18C06016 | [1] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 4. | ZN18C06005 | [1] | NUT | KOBM06x1.0mm |
| 5. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 6. | ZP45X06020 | [1] | PIN | KOBOD 06 x 20mm Long |
| 7. | ZW16X06000 | [1] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 8. | ZP15K01610 | [1] | COTTER PIN | KOB Superseded by part number: ZP15K01615 |
| 9. | ZS18C06012 | [1] | SCREW,Hex, M6 x 12mm | KOBM06x1.0x12mm |
