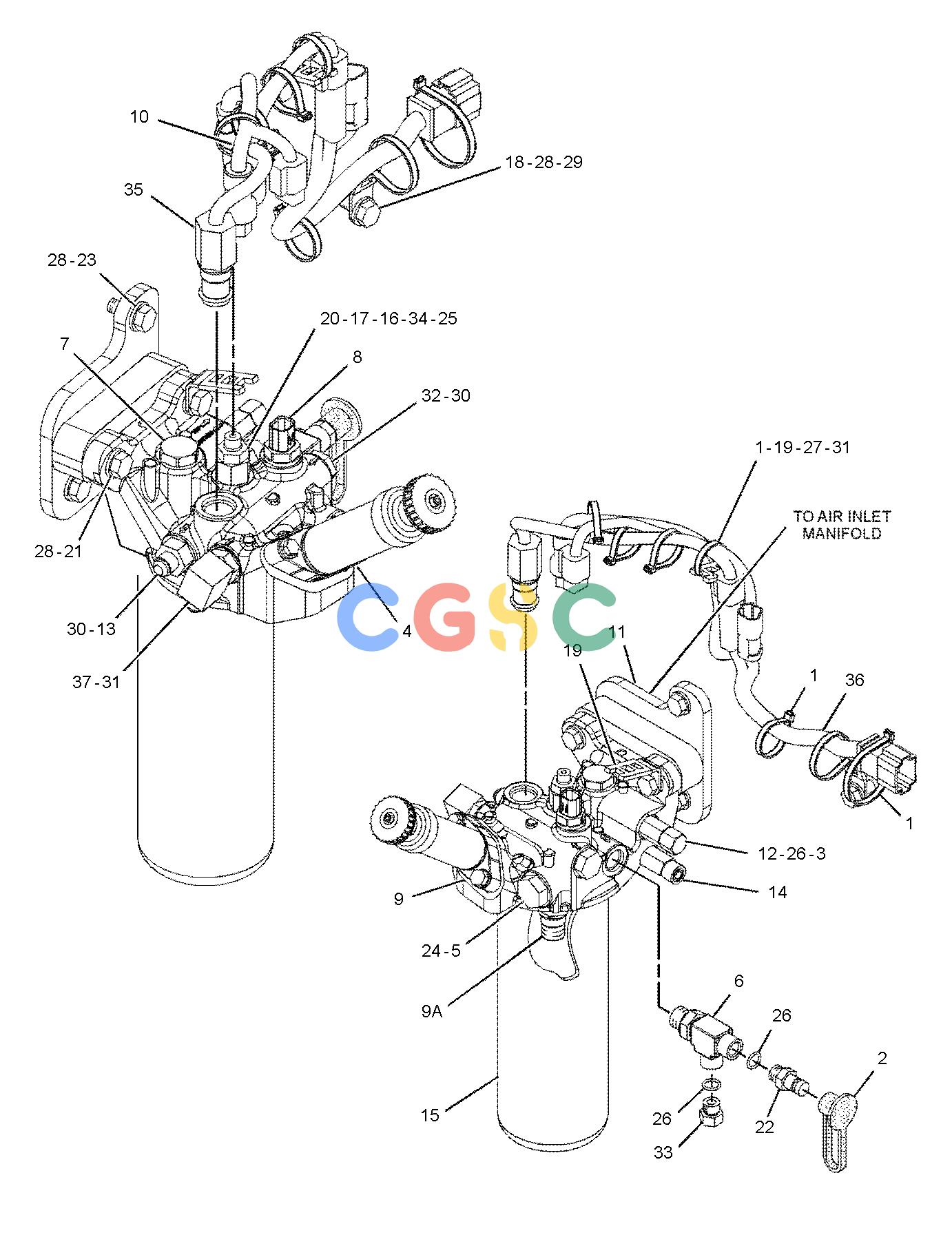

卡特零件查询（730） 240-2631: PUMP GP-FUEL PRM & PRIM FILTER
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [7] | STRAP-CABLE | |
| 2. | 6V-0852 | [1] | CAP-DUST | |
| 3. | 8S-4950 | [1] | CAP(FLARED 37-DEG) | |
| 4. | 116-5411Y | [1] | PUMP GP-FUEL PRIMING(HAND) | |
| 5. | 139-6873Y | [1] | VALVE GP-FUEL BYPASS(FILTER) | |
| 6. | 171-6718 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 105-7704 | [1] | TEE | |
| 7. | 233-6742Y | [1] | VALVE GP-CHECK(FUEL)(FUEL INJECTOR BACK PRESSURE) | |
| 8. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(FUEL) | |
| 9. | 237-9314 | [1] | BASE AS(FUEL FILTER) | |
| 9A. | 9S-4167 | [1] | STUD-HOLLOW(1-14X1.47-IN) | |
| 10. | 239-2396Y | [1] | SENSOR GP-PRESSURE(FUEL) | |
| 11. | 240-2630 | [1] | BRACKET AS | |
| 12. | 030-7936 | [1] | CONNECTOR | |
| 13. | 030-8188C | [1] | CONNECTOR | |
| 14. | 148-8338 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-0075 | [1] | CONNECTOR | |
| 15. | 1R-0762 | [1] | FILTER-FUEL(ADVANCED EFFICIENCY) | |
| 16. | 3J-1907 | [1] | SEAL-O-RING | |
| 17. | 3K-0360 | [1] | SEAL-O-RING | |
| 18. | 4P-7581 | [1] | CLIP(LADDER) | |
| 19. | 4P-8134 | [2] | CLIP(LADDER) | |
| 20. | 5P-6944 | [1] | ADAPTER | |
| 21. | 6V-1820M | [2] | BOLT(M10X1.5X30-MM) | |
| 22. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 23. | 6V-4248M | [3] | BOLT(M10X1.5X25-MM) | |
| 24. | 6V-4589 | [1] | SEAL-O-RING | |
| 25. | 6V-5048 | [1] | SEAL-O-RING | |
| 26. | 6V-5049 | [3] | SEAL-O-RING | |
| 27. | 6V-5215M | [1] | BOLT(M8X1.25X16-MM) | |
| 28. | 6V-5839 | [6] | WASHER(11X21X2.5-MM THK) | |
| 29. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 30. | 8L-2786 | [3] | SEAL-O-RING | |
| 31. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 33. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 34. | 9X-0261 | [1] | ADAPTER | |
| 35. | 275-1253Y | [1] | SWITCH GP-PRESSURE(FUEL FILTER, DIFFERENTIAL) | |
| 36. | 276-3091C | [1] | HARNESS AS-SENSOR(FUEL FILTER) | |
| | 180-9340 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 9X-3401 | [12] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 114-8843E | | SLEEVE-PLASTIC(60-CM) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 114-8843E | | SLEEVE-PLASTIC(60-CM) | |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 230-4012 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 37. | 005-4362C | [1] | ELBOW | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
