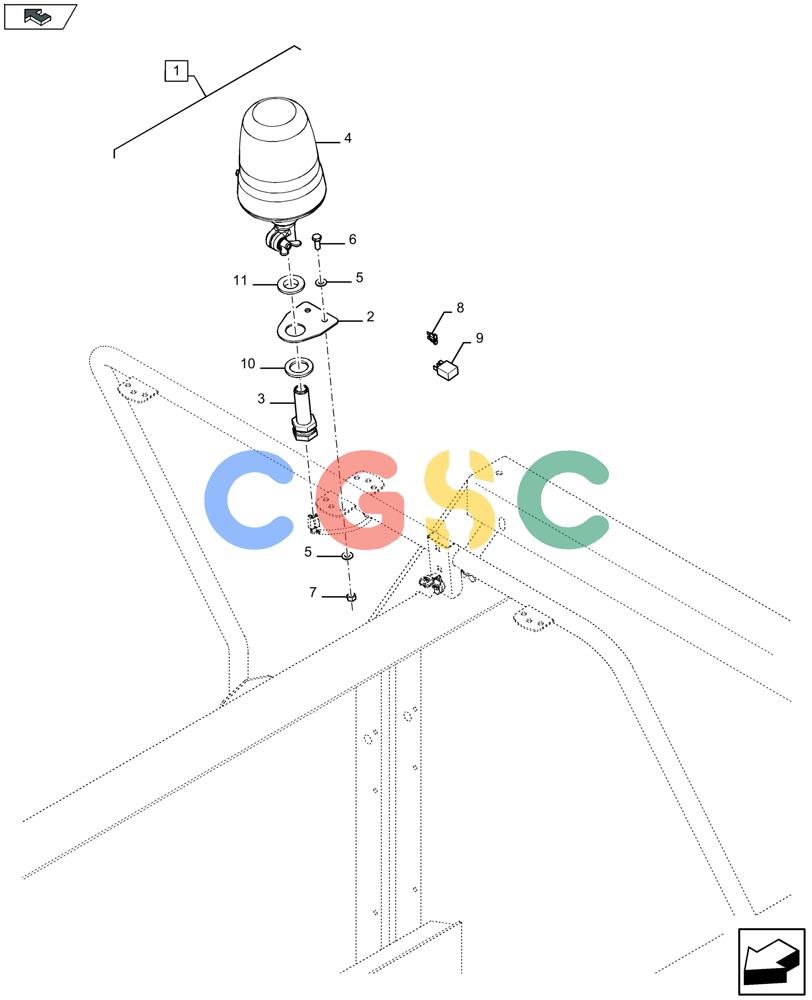

凯斯零件查询(LB424S) - BALER (9/12-) (88.055.005[01]) - DIA KIT: REVOLVING FLASHLIGHT - C144 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
531 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84483311
|
[1] |
DIA KIT, HARVESTER
|
ZED
Incl 2 - 11
|
| 2. |
47768700
|
[1] |
SUPPORT
|
ZED
|
| 3. |
9513422
|
[1] |
BASE
|
ZED
|
| 4. |
84337818
|
[1] |
BEACON
|
BRR
|
| 5. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 6. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 7. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 8. |
83933689
|
[1] |
FUSE,10A, Red
|
ZED
Superseded by part number: 9811773
|
| 9. |
86509590
|
[1] |
RELAY
|
NH
Superseded by part number: 87414866
|
| 10. |
47729252
|
[1] |
BUSHING
|
ZED
|
| 11. |
47729255
|
[1] |
BUSHING
|
ZED
|
