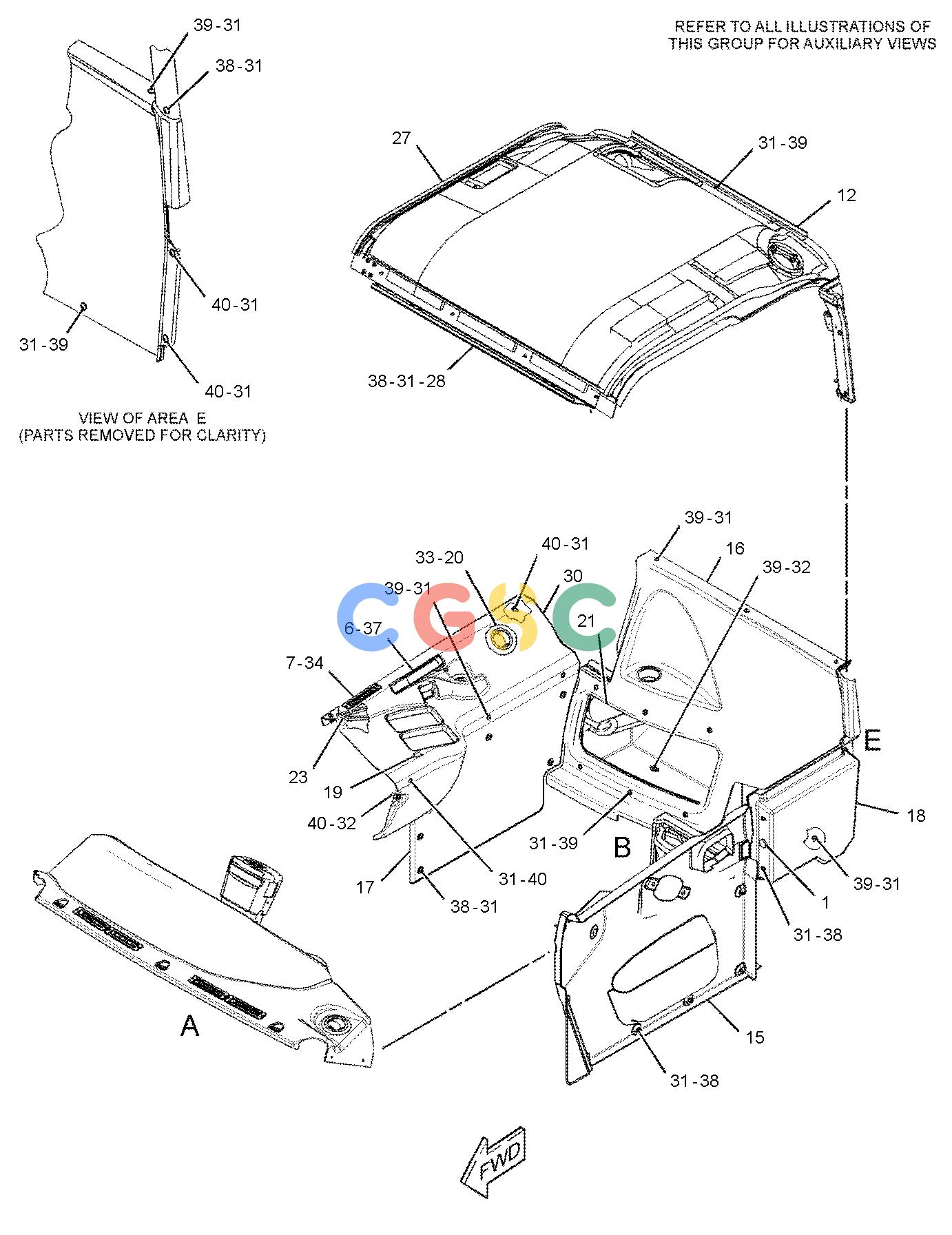

卡特零件查询（730） 378-0260: LINER GP-CAB
广数供应链运营团队, 15 02月, 2025，浏览：
820 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0292 | [1] | PLUG | |
| 2. | 6V-8928 | [1] | HOOK-COAT | |
| 4. | 8Y-6388 | [1] | LOUVER AS-VENT | |
| 5. | 9U-8263 | [1] | COVER | |
| 6. | 126-2373 | [2] | HANDLE AS-PULL | |
| 7. | 151-5715 | [5] | LOUVER AS-VENT | |
| 8. | 154-7468 | [1] | COVER AS | |
| 9. | 154-7470 | [1] | COVER | |
| 10. | 155-9708 | [1] | COVER AS | |
| 11. | 155-9709 | [1] | COVER(BOTTOM) | |
| 12. | 160-8686 | [1] | CHANNEL-REAR | |
| 13. | 160-8687 | [1] | COVER(REAR, LH) | |
| 14. | 160-8688 | [1] | COVER(REAR, RH) | |
| 15. | 160-8718 | [1] | PANEL AS-DOOR | |
| 16. | 160-8723 | [1] | TRIM AS | |
| | 114-9125 | [1] | HOLDER-CUP | |
| 17. | 160-8724 | [1] | TRIM AS | |
| 18. | 160-8728 | [1] | TRIM | |
| 19. | 161-1168 | [1] | FILM-INSTRUCTION(TRANSMISSION) | |
| 20. | 164-8473 | [2] | LOUVER AS | |
| 21. | 170-6019 | [1] | STORAGE AS | |
| 22. | 170-7656 | [2] | GASKET | |
| 23. | 172-6030 | [1] | GASKET | |
| 24. | 185-9793 | [1] | FILM-INSTRUCTION(RETARDER) | |
| 25. | 228-7260 | [1] | DOOR AS | |
| | 3H-0240 | [11] | WASHER(5X9.7X0.8-MM THK) | |
| | 9M-5733 | [11] | RIVET-POP | |
| | 165-0399 | [1] | HINGE AS | |
| | 228-7261 | [1] | TRIM-SEAT | |
| | 302-4764 | [1] | LATCH AS | |
| 26. | 240-8432 | [1] | DASH AS | |
| 27. | 274-8266 | [1] | LINER AS-CAB | |
| | 9X-1046M | [8] | SCREW(M4X0.7X18-MM) | |
| | 9X-2045M | [4] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| | 124-6047 | [2] | COVER-SPEAKER | |
| | 160-8684 | [1] | COVER | |
| 28. | 289-8726 | [1] | PLATE AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 247-5834 | [1] | PLATE | |
| 29. | 354-0742 | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| 30. | 375-7130 | [1] | COVER AS-CONSOLE | |
| | 240-2169 | [1] | RETAINER | |
| 31. | 114-6658 | [62] | WASHER(6.5X17X1-MM THK) | |
| 32. | 101-2867 | [6] | WASHER-HARD(7.2X25X2-MM THK) | |
| 33. | 104-2091 | [8] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 34. | 118-5619 | [14] | SCREW-FLAT HEAD(6-20X1-IN) | |
| 35. | 3E-4313M | [10] | SCREW-BUTTON HEAD(M4X0.7X8-MM) | |
| 36. | 8T-0267M | [2] | BOLT-SOCKET HEAD(M6X1X12-MM) | |
| 37. | 8T-0269M | [2] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 38. | 9X-2042M | [29] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 39. | 9X-2044M | [30] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 40. | 9X-2045M | [10] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 41. | 148-7361E | | FASTENER-HOOK & LOOP(ADHESIVE BACKED)(8-CM) | |
| 42. | 148-7362E | | FASTENER-HOOK & LOOP(ADHESIVE BACKED)(5-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
