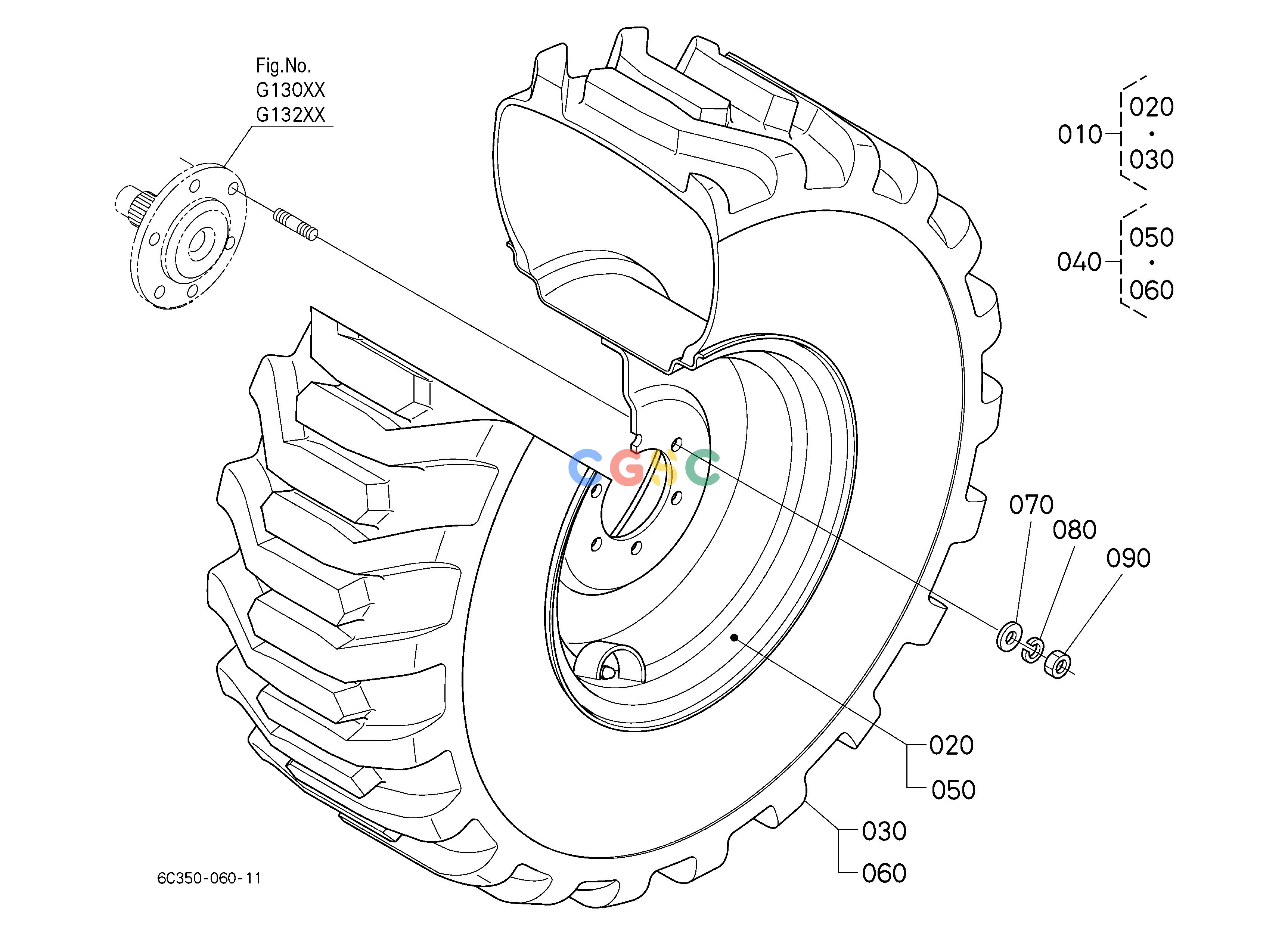

久保田零件查询R10104 FRONT WHEEL (25 8.5-14) FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C36050010
|
[1] |
ASSY TIRE, LH
|
0.0000(lbs); 0.000
|
| 020. |
6C36050030
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 030. |
6C36050040
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
6C36050020
|
[1] |
ASSY TIRE, RH
|
0.0000(lbs); 0.000
|
| 050. |
6C36050030
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 060. |
6C36050040
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 070. |
0401350120
|
[12] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 080. |
0451250120
|
[12] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 090. |
0217650120
|
[12] |
HEX.NUT
|
0.0220(lbs); 0.010
|
