凯斯零件查询(LB424S) - BALER (9/12-) (88.055.012[01]) - DIA KIT: COLOUR MONITOR - INTELLIVIEW™ IV / AFS PRO 700 & TRACTOR WIRING - C071 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
611 次

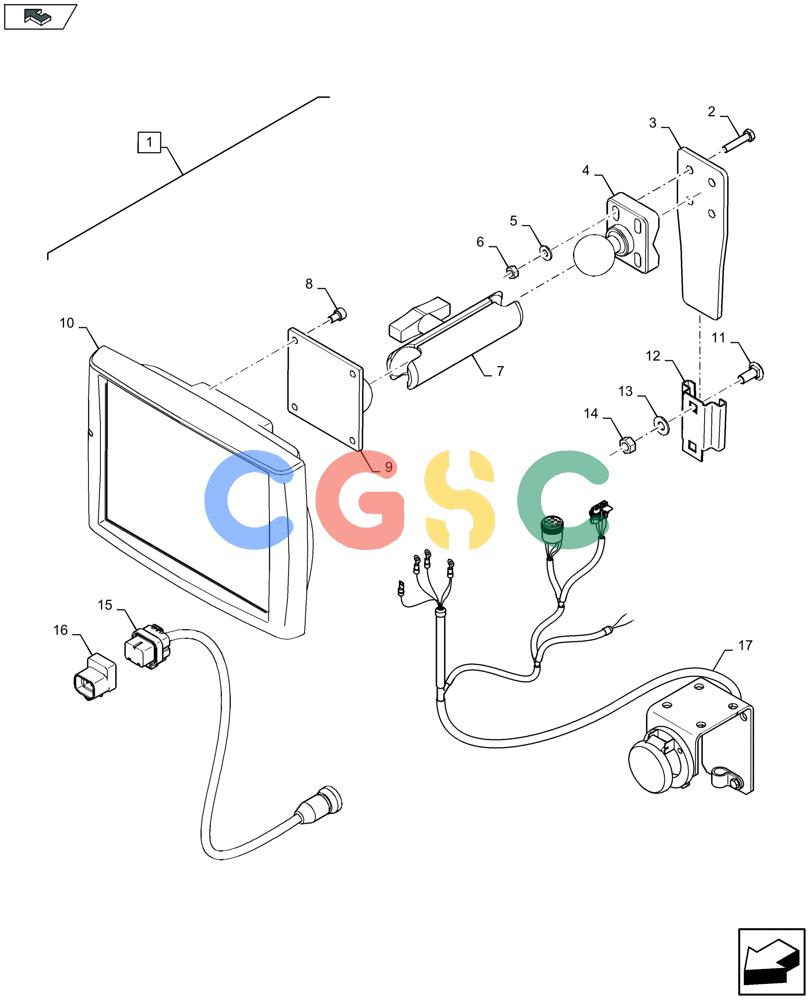

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47374155
|
[1] |
DIA KIT, HARVESTER
|
ZED
Incl 2 - 17 Superseded by part number: 47455159
|
| 2. |
120101
|
[4] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 3. |
84348886
|
[1] |
MOUNTING PLATE
|
ZED
|
| 4. |
87284259
|
[1] |
PLATE
|
GI
|
| 5. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 6. |
9706755
|
[4] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 7. |
87284257
|
[1] |
ARM
|
GI
|
| 8. |
87016470
|
[4] |
HEX SOC SCREW,M6 x 1 x 10mm, Cl 8.8
|
ZED
|
| 9. |
87386398
|
[1] |
SUPPORTING ARM
|
GI
|
| 10. |
84518934
|
[1] |
DISPLAY
|
FAR
Superseded by part number: 47514045
|
| 10. |
84546676R
|
[1] |
REMAN-ELECT MONITOR
|
BRR
LB324P, LB324R,LB324S, LB334P, LB334R, LB334S, LB424R, LB424S, LB434R, LB434S, All (9/12), Reman for New P/N 84518934
|
| 10. |
84546676C
|
[1] |
CORE-MONITOR
|
BRR
Return Number
|
| 11. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 12. |
9837606
|
[1] |
CLIP
|
ZED
Superseded by part number: 847590
|
| 13. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 14. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 15. |
84574876
|
[1] |
WIRE HARNESS
|
PLO
Superseded by part number: 47441308
|
| 16. |
87601142
|
[1] |
ELEC CONNECTOR,Female, 6 Cavities
|
PLO
|
| 17. |
87526033
|
[1] |
WIRE HARNESS
|
PLO
|
