神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (06-003) - BUCKET ASSY, 0.3 M3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
311 次

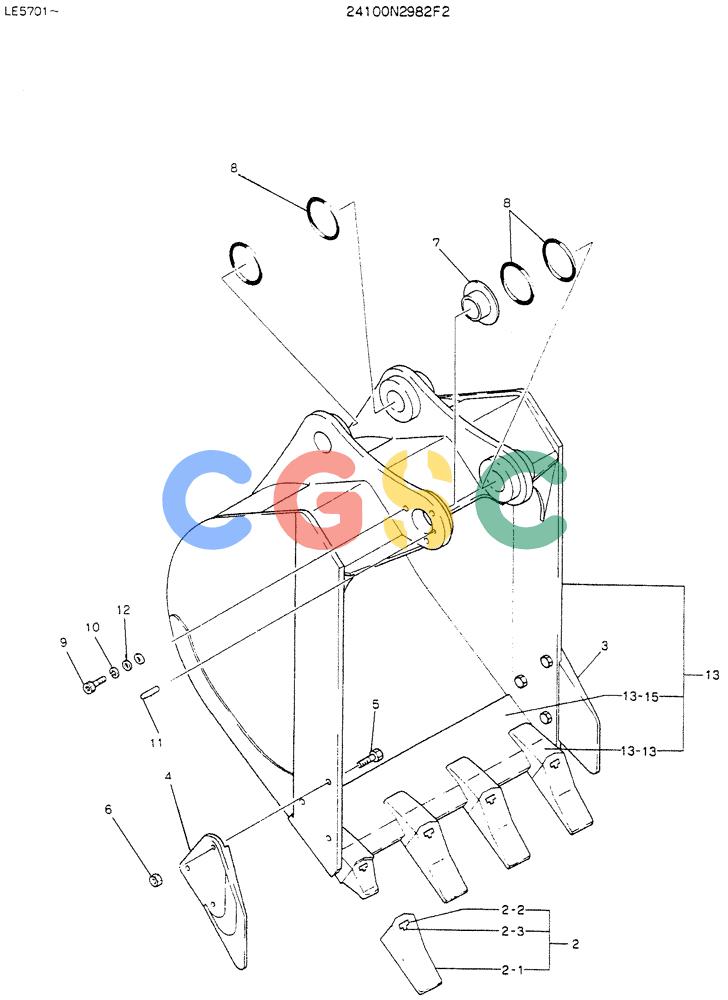

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2982F2 | [1] | BUCKET ASSY | |
| 2. | B12P0015F1 | [4] | TOOTH | KOB |
| 2-1. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOBRUBBER Superseded by part number: B12P0015E3MK |
| 3. | 2412N279D1 | [1] | BLADE | KOB |
| 4. | 2412N279D2 | [1] | BLADE | KOB |
| 5. | ZS13C20045 | [6] | SCREW | KOBM20x2.50x45mm |
| 6. | ZN12C20016 | [6] | NUT | KOBM20x2.50mm |
| 7. | 2405T1059 | [1] | BUSHING | KOB |
| 8. | 2445Z912 | [4] | O-RING | KOBID 90 ± 0.40 x OD 108mm |
| 9. | ZS23C10035 | [3] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 10. | ZW22K10000 | [3] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 11. | 2419T3820 | [1] | PIN | KOB |
| 12. | 2418T12415 | [21] | SHIM | KOB |
| 13. | 2412J711 | [1] | BUCKET | |
| 13-13. | 2412N214 | [4] | ADAPTER | KOB |
| 13-15. | 2412P529D4 | [1] | EDGE, CUTTING | |
