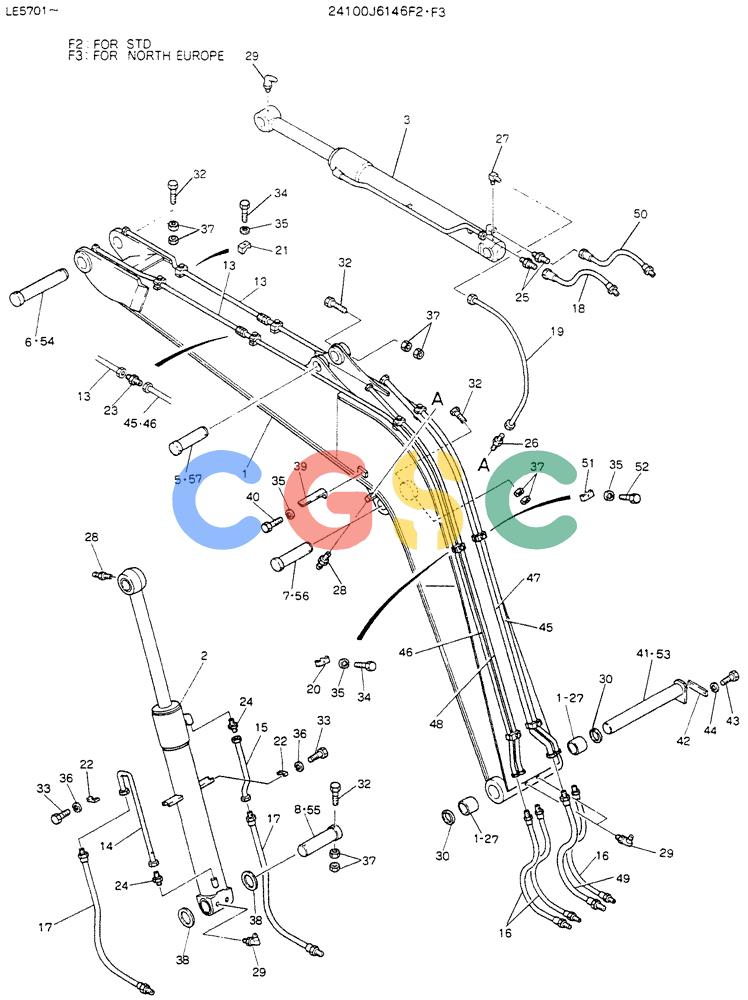

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (06-001[01B]) - BOOM ASSY, 3.65M (11FT 11IN), P/N 24100J6146F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6146F3 | [1] | | |
| 1. | 2411J1770F1 | [1] | BOOM | BOOM |
| 1-27. | 2405T985 | [2] | BUSHING | KOB |
| 2. | 2438U721F1 | [1] | BOOM | KOB |
| 3. | 2438U716F1 | [1] | LINK CHAIN | LINK CHAIN |
| 13. | 2418T17338 | [2] | RIGID TUBE | KOB |
| 14. | 2418T12622 | [1] | TUBE | |
| 15. | 2418T12623 | [1] | TUBE | KOB |
| 16. | 2444R950D4 | [3] | HOSE | KOB |
| 17. | 2444R950D5 | [2] | HOSE | KOB |
| 18. | 2444R950D2 | [1] | FLEXIBLE HOSE | KOB400mm Long (15-3/4 in) |
| 19. | 2420R349D14 | [1] | FLEXIBLE HOSE | KOB140mm Long (5-1/2 in) Superseded by part number: HX21E04100DX |
| 20. | ZC36X18011 | [3] | CLAMP | KOB |
| 21. | ZC26X18011 | [4] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 22. | 2416T3204 | [2] | CLAMP | KOB |
| 23. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| 24. | ZF23E18008 | [2] | HYD CONNECTOR | KOB |
| 25. | ZF23G18008 | [2] | GASKET | KOB |
| 26. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 27. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 28. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 29. | ZG91V02000 | [5] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
| 30. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 32. | ZS13C12110 | [4] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 33. | ZS13C08030 | [4] | SCREW | KOBM08x1.25x30mm Superseded by part number: ZS18C08030 |
| 34. | ZS13C10040 | [7] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 35. | ZW22X10000 | [11] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 36. | ZH22X08000 | [4] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 37. | ZN12C12010 | [8] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 38. | B16T0442D19 | [2] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| 39. | 2416T13056 | [1] | BRACKET | KOB |
| 40. | ZS13C10018 | [1] | SCREW | KOBM10x1.50x18mm |
| 42. | 2418T12645D2 | [1] | PLATE | KOB125 x 261 x Th 9.0mm |
| 43. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 44. | ZW22X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 45. | 2418N2309D1 | [1] | TUBE | KOB |
| 46. | 2418N2309D2 | [1] | TUBE | TUBE |
| 47. | 2418P12094 | [1] | TUBE | KOB |
| 48. | 2418P12125 | [1] | TUBE | TUBE |
| 49. | 2444R951D4 | [1] | HOSE | KOBHOSE |
| 50. | 2444R951D5 | [1] | FLEXIBLE HOSE | KOB |
| 51. | 2416T13272 | [3] | CLAMP | KOB |
| 52. | ZS13C10045 | [3] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 53. | 2419T4701 | [1] | PIN | |
| 54. | 2419P1690 | [1] | PIN | |
| 55. | 2419P1692D1 | [1] | PIN | |
| 56. | 2419P1700 | [1] | PIN | |
| 57. | 2419P1724 | [1] | PIN | KOB |
