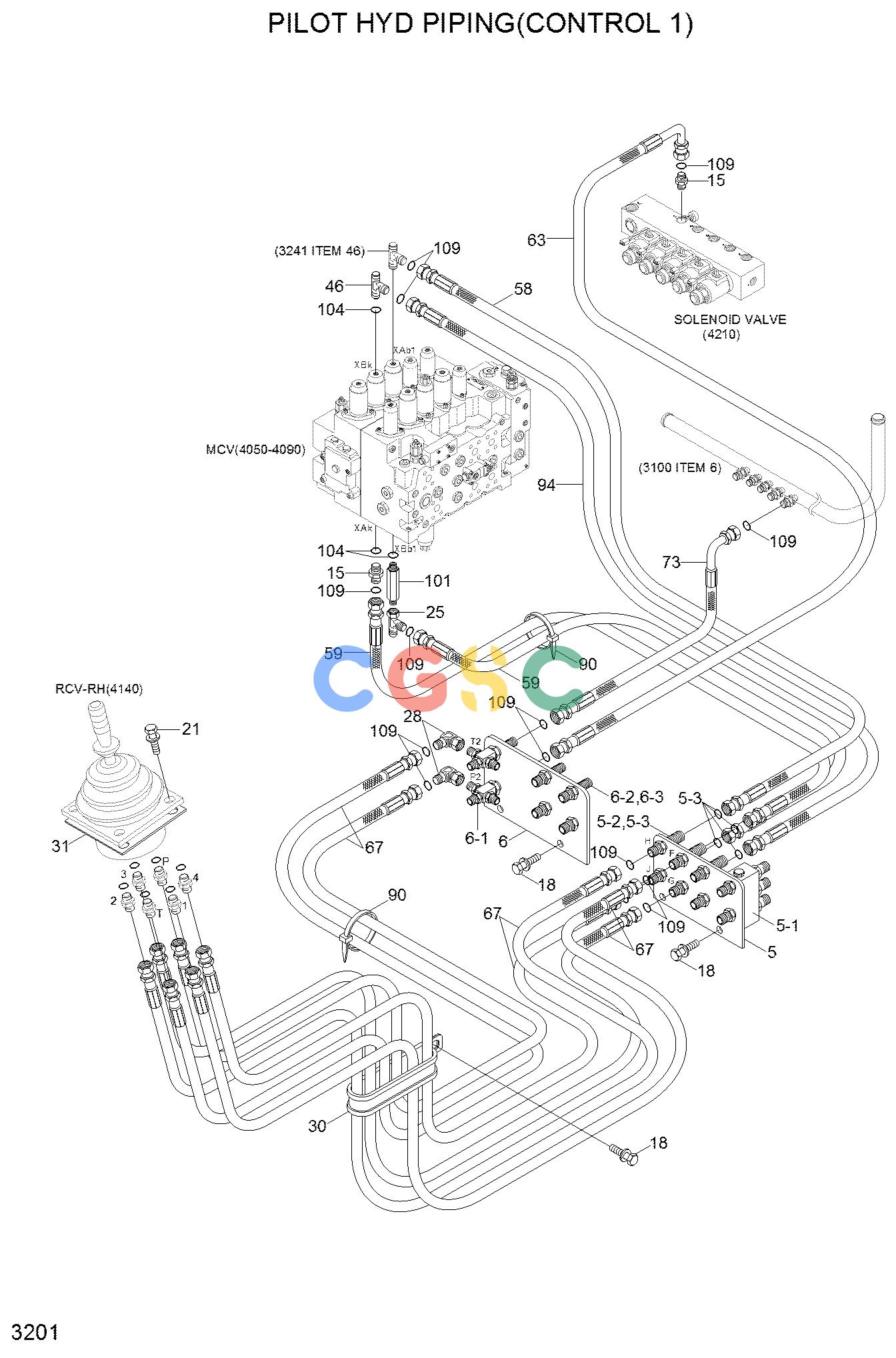

现代零件查询R360LC-7A PILOT HYD PIP(CNTL 1,MCV TYPE 2,#0170-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
710 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31NA-26100
|
[1] |
BOTTOM SUB ASSY-HYD
|
|
| 4. |
31NB-20022
|
[1] |
CROSS ASSY
|
|
| 4-1. |
31N8-24040
|
[1] |
CROSS-BULK HEAD TYPE
|
|
| 5. |
31M6-51061
|
[2] |
SHIM(3.2T)
|
|
| 6. |
31E7-0310
|
[2] |
CLAMP-HOSE
|
|
| 7. |
X500-110011
|
[1] |
CONNECTOR-ORFS
|
|
| 8. |
31N6-25070
|
[1] |
FILTER-LAST GUARD
|
|
| 9. |
X520-110011
|
[2] |
ELBOW-90,ORFS
|
|
| 10. |
31N7-22100
|
[2] |
ELBOW-90,ORFS,LONG
|
|
| 11. |
X400-062019
|
[2] |
HOSE ASSY-SYNFLEX,ORFS
|
|
| 12. |
P920-062026
|
[2] |
HOSE ASSY-ORFS 0X45
|
|
| 13. |
P920-062028
|
[2] |
HOSE ASSY-ORFS 0X45
|
|
| 14. |
X410-062041
|
[4] |
HOSE ASSY-ORFS 0X45
|
|
| 15. |
S035-063046
|
[8] |
BOLT-W/WASHER
|
|
| 16. |
S037-102526
|
[4] |
BOLT-W/WASHER
|
|
| 17. |
S037-103026
|
[4] |
BOLT-W/WASHER
|
|
| 18. |
S621-012001
|
[24] |
O-RING
|
|
| 19. |
S631-012001
|
[18] |
O-RING
|
|
| 20. |
X410-062044
|
[4] |
HOSE ASSY-ORFS 0X45
|
|
| 101. |
31N6-22050
|
[1] |
SELECTOR VLV-MULTIMODE
|
|
| 102. |
31NB-22110
|
[1] |
TERMINAL ASSY
|
|
| 103. |
31N9-22120
|
[1] |
BRACKET-WA
|
|
| 105. |
X500-110011
|
[3] |
CONNECTOR-ORFS
|
|
| 106. |
X520-110011
|
[1] |
ELBOW-90,ORFS
|
|
| 107. |
S037-103026
|
[2] |
BOLT-W/WASHER
|
|
| 108. |
S015-080806
|
[2] |
BOLT-HEX
|
|
| 109. |
S411-080006
|
[2] |
WASHER-SPRING
|
|
| 110. |
S631-011004
|
[4] |
O-RING
|
|
| 111. |
S621-012001
|
[5] |
O-RING
|
|
| 112. |
X850-525200
|
[1] |
ELBOW-90,SWIVEL,ORFS
|
|
