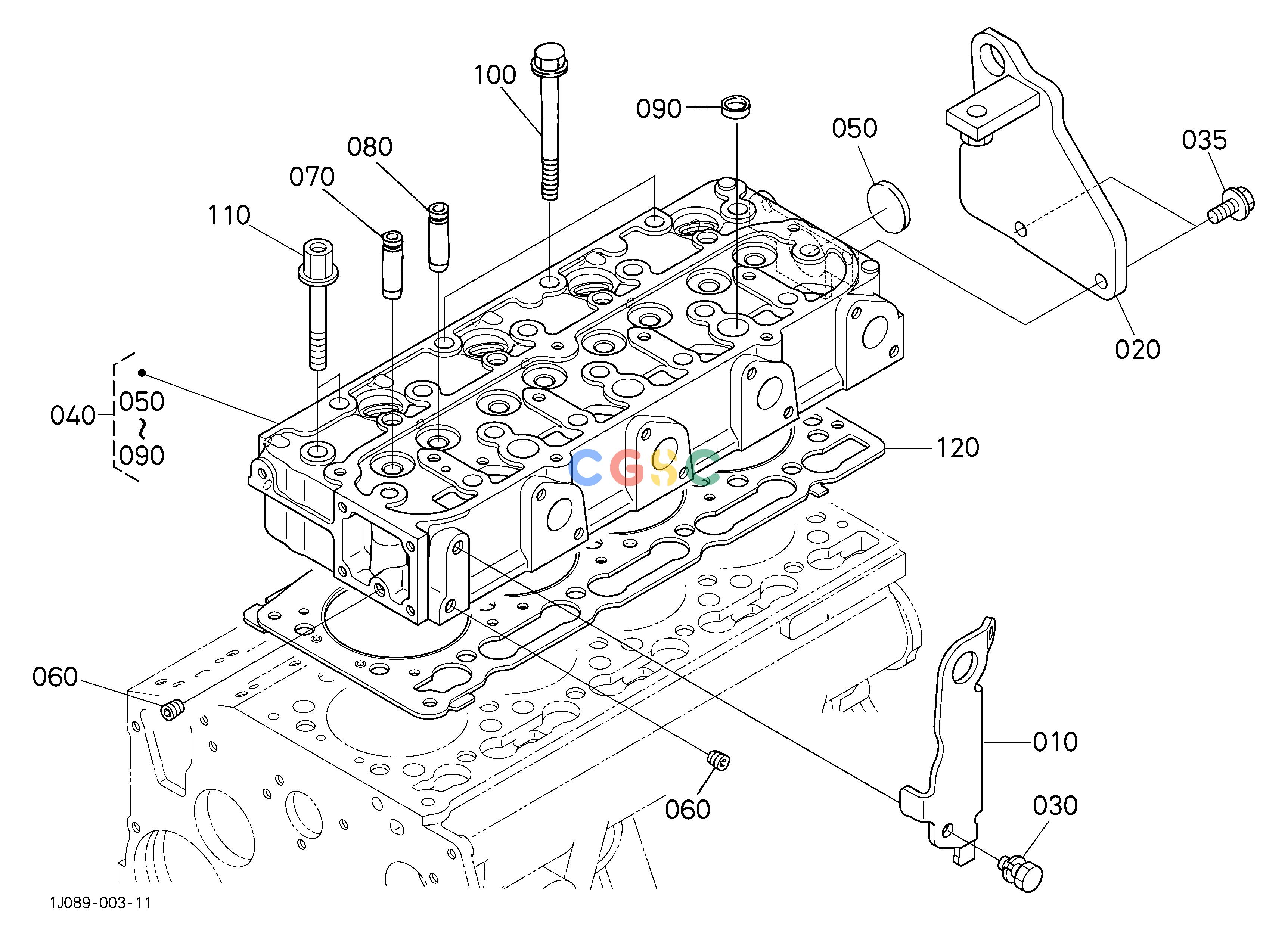

久保田零件查询502000 CYLINDER HEAD ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J05001752
|
[1] |
HOOK(ENGINE,1)
|
0.4180(lbs); 0.190
|
| 020. |
6C43058994
|
[1] |
HOOK(ENGINE,2)
|
1.9360(lbs); 0.880
|
| 030. |
0112350814
|
[1] |
BOLT,SEMS
|
0.0220(lbs); 0.010
|
| 035. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 040. |
1J05003040
|
[1] |
HEAD,CYLINDER(COMP)
|
25.9600(lbs); 11.800
|
| 050. |
1532196260
|
[1] |
CAP,SEALING
|
0.0308(lbs); 0.014
|
| 060. |
1526196010
|
[2] |
PLUG
|
0.0044(lbs); 0.002
|
| 070. |
1626113540
|
[4] |
GUIDE,INLET VALVE
|
0.0440(lbs); 0.020
|
| 080. |
1626113560
|
[4] |
GUIDE,EXHAUST VALVE
|
0.0418(lbs); 0.019
|
| 090. |
1526103370
|
[3] |
CAP,SEALING
|
0.0110(lbs); 0.005
|
| 100. |
1624103450
|
[16] |
BOLT,HEAD(CYLINDER)
|
0.1100(lbs); 0.050
|
| 110. |
1627103450
|
[2] |
BOLT,CYLINDER HEAD
|
0.1650(lbs); 0.075
|
| 120. |
1639403313
|
[1] |
GASKET,CYLINDER HEAD
|
0.4400(lbs); 0.200
|
