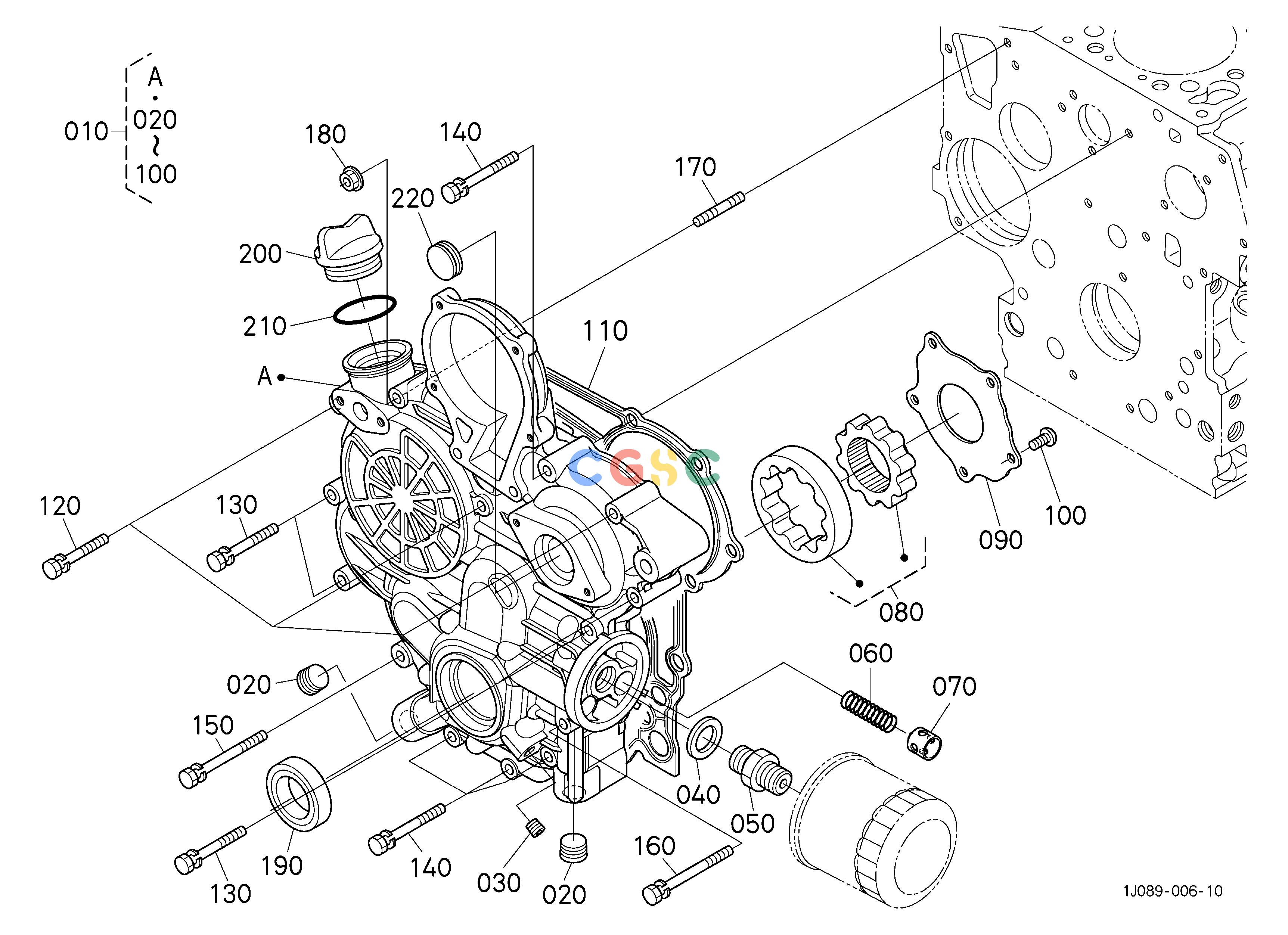

久保田零件查询508000 GEAR CASE ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
171 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J08904022
|
[1] |
CASE,GEAR,COMP
|
5.1920(lbs); 2.360
|
| 020. |
1624196020
|
[2] |
PLUG
|
0.0330(lbs); 0.015
|
| 030. |
1552196020
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 040. |
0401150180
|
[1] |
WASHER,PLAIN
|
0.0264(lbs); 0.012
|
| 050. |
1524132290
|
[1] |
JOINT,PIPE
|
0.1166(lbs); 0.053
|
| 060. |
1J05036950
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 070. |
1J05036930
|
[1] |
VALVE(RELIEF)
|
0.0110(lbs); 0.005
|
| 080. |
1J05035070
|
[1] |
ROTOR,ASSY(OIL PUMP)
|
0.5368(lbs); 0.244
|
| 090. |
1J05035132
|
[1] |
COVER(OIL PUMP)
|
0.1870(lbs); 0.085
|
| 100. |
0301750614
|
[5] |
SCREW,BINDING(PHILLIPS)
|
0.0110(lbs); 0.005
|
| 110. |
1626404132
|
[1] |
GASKET,GEAR CASE
|
0.0220(lbs); 0.010
|
| 120. |
0102350645
|
[3] |
BOLT,SEMS
|
0.0220(lbs); 0.010
|
| 130. |
0102350650
|
[4] |
BOLT,SEMS
|
0.0264(lbs); 0.012
|
| 140. |
0102350655
|
[4] |
BOLT,SEMS
|
0.0264(lbs); 0.012
|
| 150. |
0102350665
|
[1] |
BOLT,SEMS
|
0.0330(lbs); 0.015
|
| 160. |
1624191040
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 170. |
1624591530
|
[1] |
STUD
|
0.0220(lbs); 0.010
|
| 180. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 190. |
1624104212
|
[1] |
SEAL,OIL
|
0.0264(lbs); 0.012
|
| 200. |
E915133140
|
[1] |
PLUG(OIL FILLER)
|
0.0374(lbs); 0.017
|
| 210. |
1J00196770
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 220. |
1626483342
|
[1] |
COVER,GEAR CASE
|
0.0220(lbs); 0.010
|
