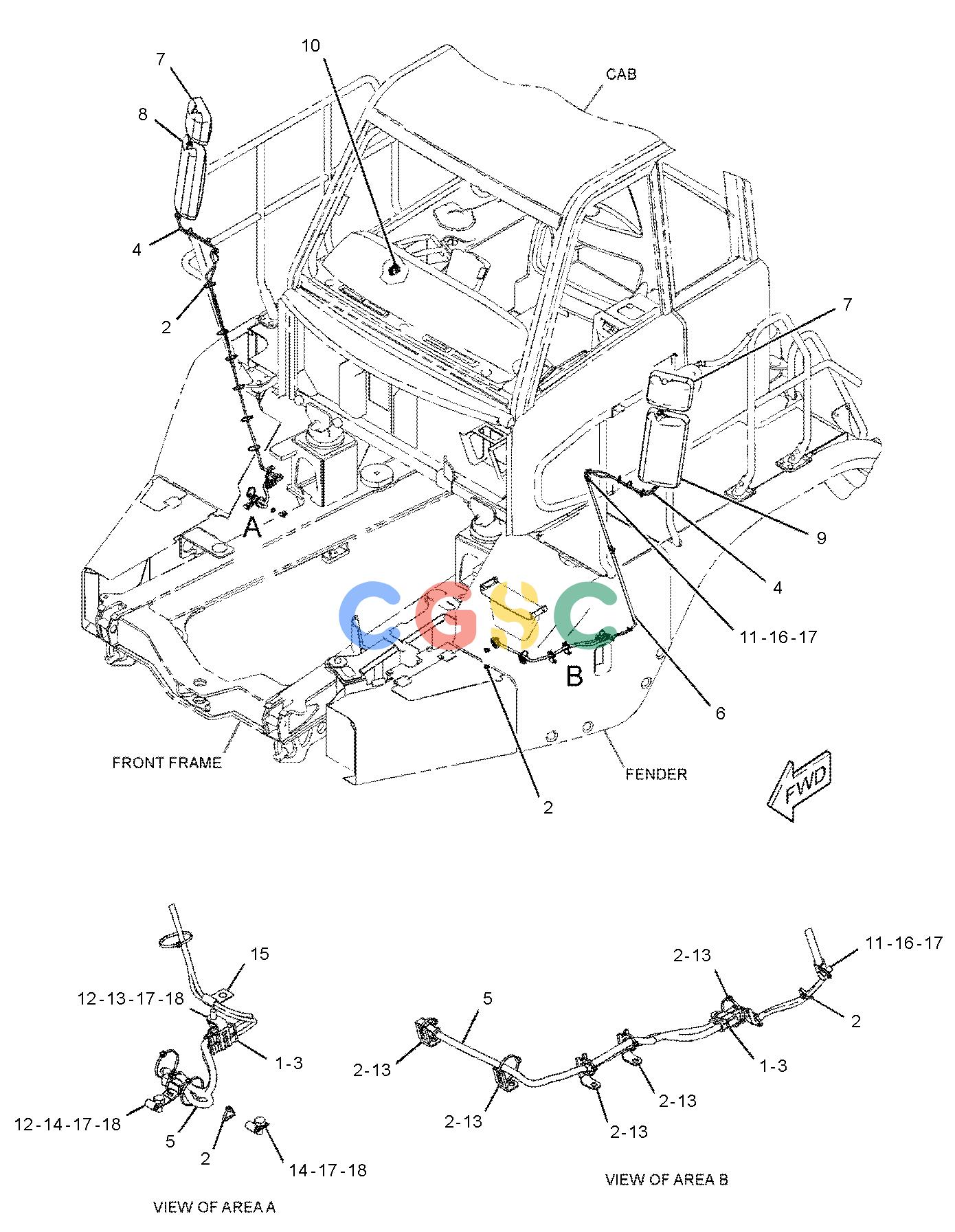

卡特零件查询（730） 315-5306: MIRROR GP-REAR VIEW
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8802 | [4] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 3S-2093 | [30] | STRAP-CABLE | |
| 3. | 186-3735 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 4. | 236-5334 | [4] | WIRE AS(MIRROR) | |
| 5. | 315-5477 | [2] | HARNESS AS-SWITCH(MIRROR) | |
| | | | (EACH INCLUDES) |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9W-0844 | [4] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 6. | 315-8111 | [1] | TUBE-NYLON | |
| 7. | 319-6786 | [2] | MIRROR AS-CONVEX(HEATED) | |
| | | | (EACH INCLUDES) |
| | 308-3843 | [1] | REFLECTOR | |
| | 319-6784 | [1] | COVER AS | |
| 8. | 319-6790 | [1] | MIRROR AS(HEATED, RH) | |
| 9. | 319-6791 | [1] | MIRROR AS(HEATED, LH) | |
| | | | (EACH MIRROR AS INCLUDES) |
| | 294-1993 | [1] | REFLECTOR | |
| | 319-6787 | [1] | COVER AS | |
| 10. | 271-2824 | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| 11. | 8T-4191M | [3] | BOLT(M10X1.5X16-MM) | |
| 12. | 4P-7581 | [2] | CLIP(LADDER) | |
| 13. | 4P-8134 | [5] | CLIP(LADDER) | |
| 14. | 5P-9085 | [2] | CLIP(LOOP) | |
| 15. | 6V-2383 | [1] | CLIP | |
| 16. | 8M-2770 | [3] | CLIP(LOOP) | |
| 17. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
