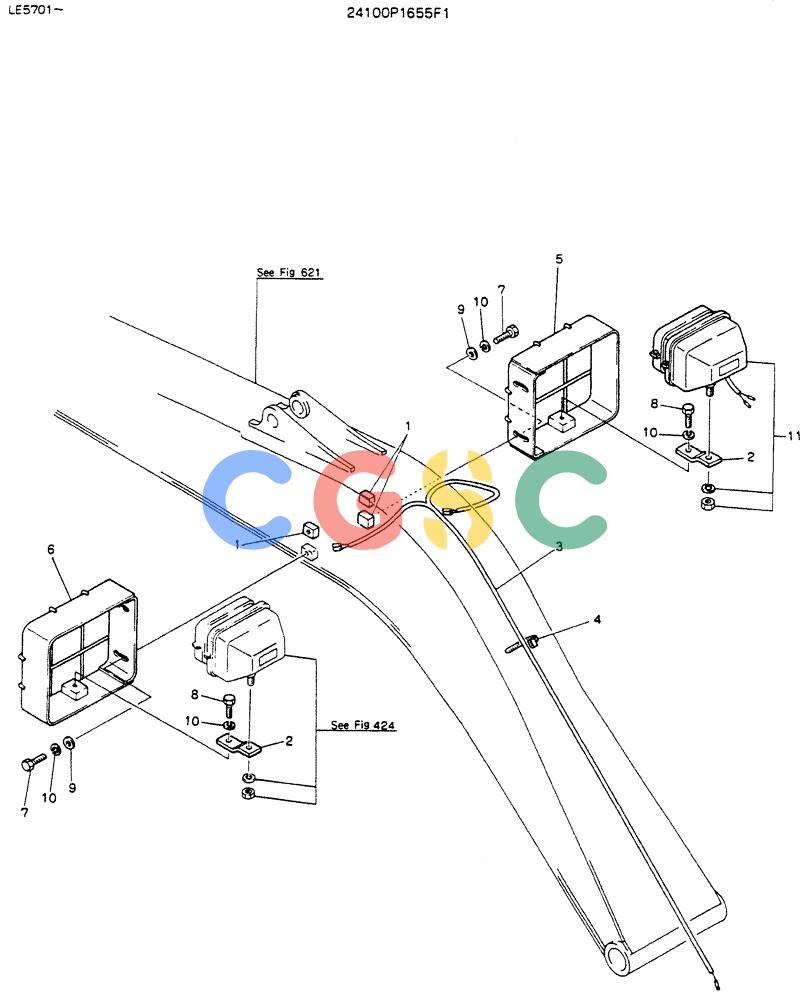

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (07-014) - LIGHT, BOOM (2-LIGHT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1665F1 | [1] | LIGHT,BOOM | |
| 1. | 2416T9878 | [3] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTAPPED |
| 2. | 2416T13218 | [2] | U-BRACKET | KOB |
| 3. | 2479Z1023 | [1] | HARNESS | HARNESS |
| 4. | 2432Z290D3 | [2] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 5. | 2414P4100D1 | [1] | COVER | KOB |
| 6. | 2414P4100D2 | [1] | COVER | KOB |
| 7. | ZS13C12020 | [4] | SCREW | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| S. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 9. | ZW11X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 10. | ZW22X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 11. | 2456R229F2 | [1] | LIGHT | LIGHT |
