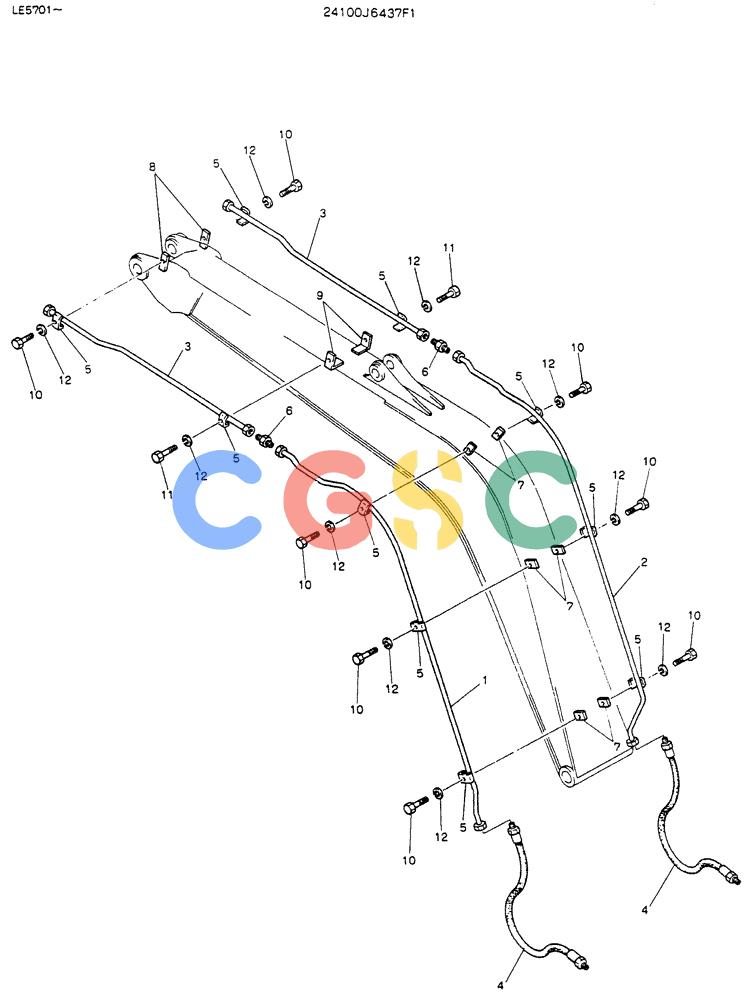

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (08-001) - HYDR LINES, EXTRA BOOM 3.65M (11FT 11IN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
604 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6437F1 | [1] | HYDR LINES,EXTRA BOOH | |
| 1. | 2418P19380 | [1] | TUBE | |
| 2. | 2418P19379 | [1] | TUBE | |
| 3. | 2418P17575 | [2] | TUBE | |
| 4. | ZX28N08060 | [2] | HOSE | |
| 5. | 2432T1773 | [10] | CLAMP | KOB |
| 6. | ZA23B1S000 | [2] | CONNECTOR | |
| 7. | 2416T10888D3 | [5] | BLOCK, TAPPED | |
| 3. | 2416T10903 | [2] | BLOCK, TAPPED | |
| 9. | 2416T11067 | [2] | BRACKET | |
| 10. | ZS13C08038 | [8] | SCREW | KOBM08x1.25x38mm Superseded by part number: ZS18C08040 |
| 11. | ZS13C08032 | [2] | CAPSCREW | |
| 12. | ZW22X08000 | [10] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
