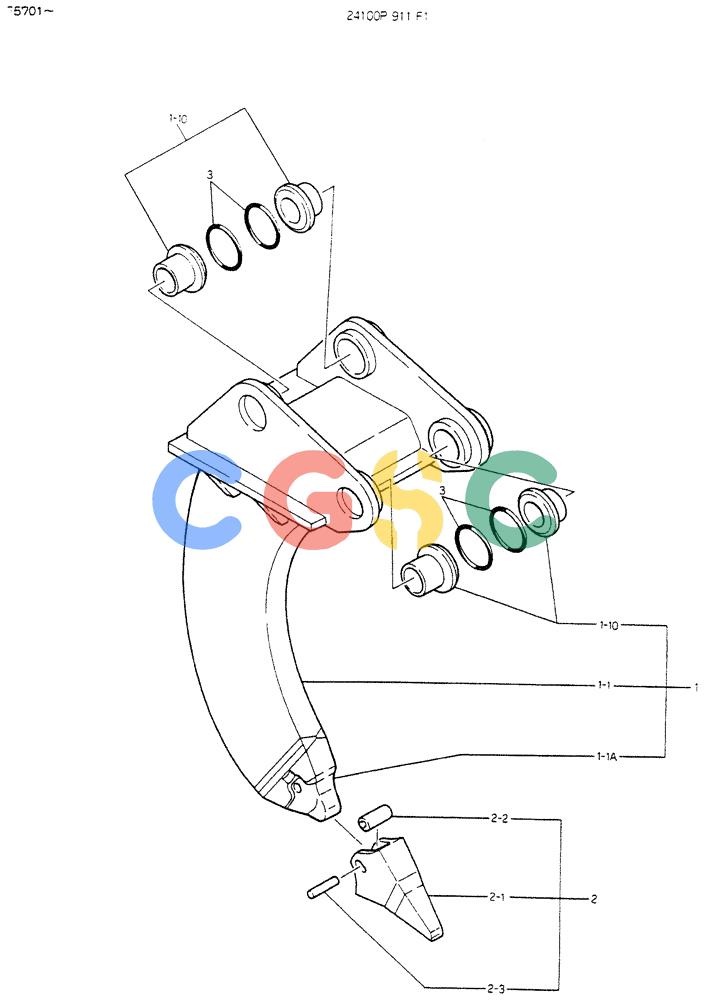

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 24100P911F1 | [1] | RIPPER ASSY | |
| . . | 24I2J336F1 | [1] | RIPPER | |
| 1-1. | 2412J336 | [1] | RIPPER | |
| 1-1A. | B12N0054 | [1] | NOSE | |
| 1-10. | 2405T873 | [4] | BUSHING | KOB |
| 2. | B12N0055F1 | [1] | TOOTH ASSY | |
| 2-1. | B12N0055S1 | [1] | POINT | KOB |
| 2-2. | B12N0055S2 | [1] | BUSHING | BUSHING |
| 2-3. | B12N0055S3 | [1] | PIN | PIN |
| 3. | 2445Z912 | [4] | O-RING | KOBID 90 ± 0.40 x OD 108mm |
