神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-004) - FLY WHEEL HOUSING & OTHER PARTS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
904 次

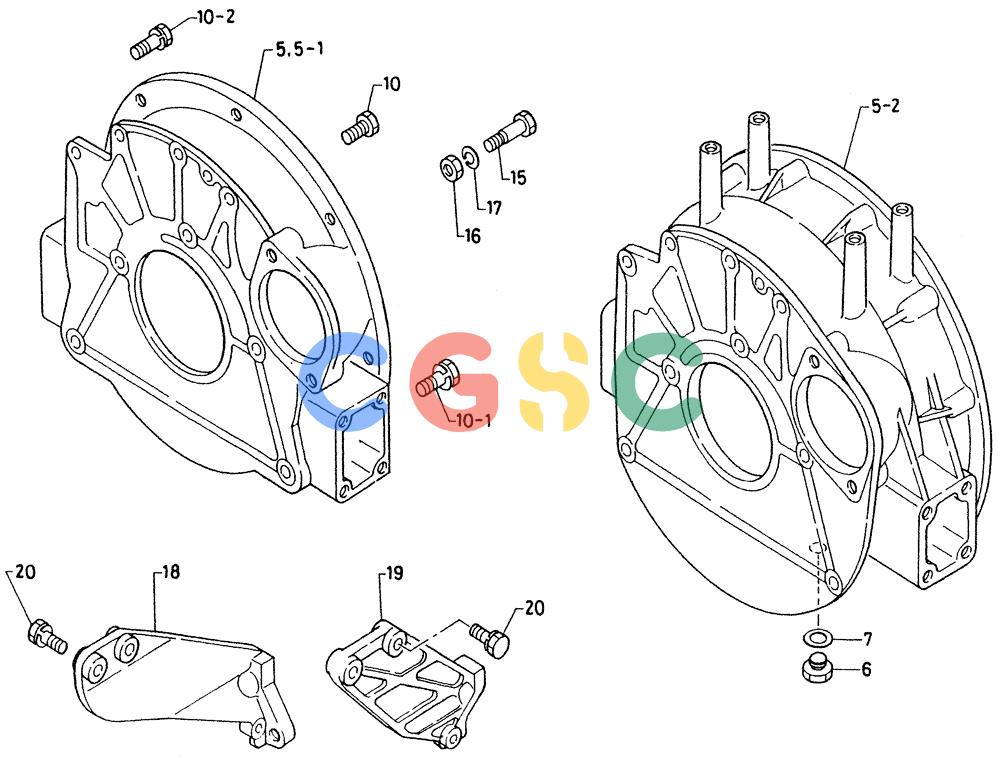

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 5. | VI8944228782 | [1] | HOUSING, FLYWHEEL | |
| 5-1. | VI8944104112 | [1] | HOUSING, FLYWHEEL | |
| 5-2. | VI9113416300 | [1] | HOUSING, FLYWHEEL | |
| 6. | VI9992023160 | [1] | PLUG | KOBPLUG, SCREW Superseded by part number: VI0920024160 |
| 7. | VI9095714160 | [1] | SEAL | KOBGASKET |
| 10. | VI5090002270 | [3] | BOLT | KOBBOLT, HOUSING FIX. |
| 10-1. | VI9019112300 | [2] | BOLT, HOUSING FIX. | |
| 10-2. | VI9019110300 | [3] | BOLT, HOUSING FIX. | |
| 15. | VI9096065350 | [1] | BOLT | KOBBOLT, REAMER |
| 16. | VI9091104100 | [1] | NUT | KOBREAMER Superseded by part number: VI9091105100 |
| 17. | VI9091505100 | [1] | WASHER | KOBWASHER, SPR. Superseded by part number: VI1099853450 |
| 18. | VI8941222562 | [1] | STIFFNER, RH | |
| 19. | VI8941222552 | [1] | STIFFNER, LH | |
| 20. | VI9019110250 | [4] | BOLT | KOBBOLT, STIFFNER Superseded by part number: VI0500410250 |
