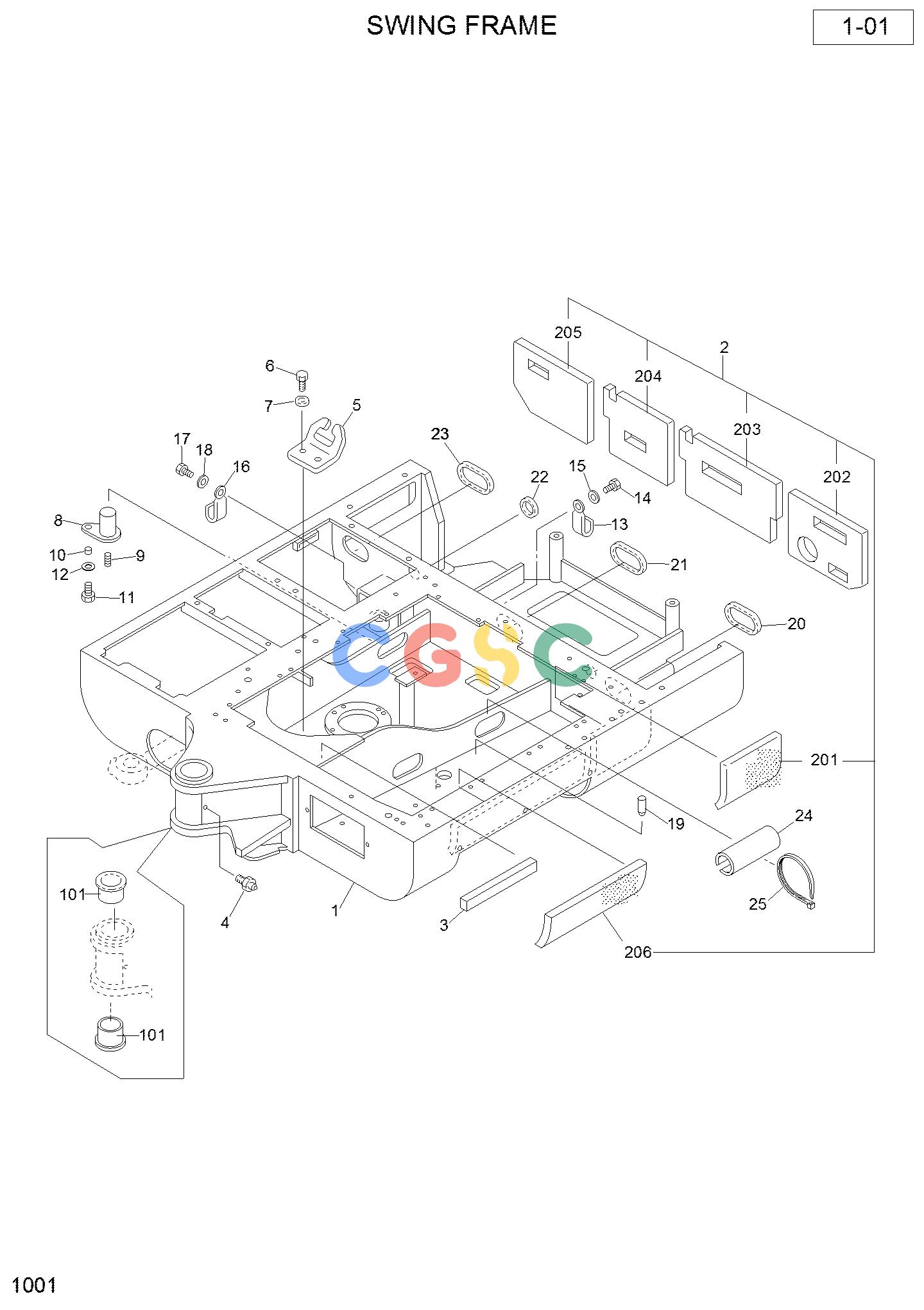

现代零件查询R36N-7 SWING FRAMEEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03394
|
[1] |
SWING FRAME
|
|
| 101. |
XJDH-01462
|
[2] |
BUSHING
|
|
| 2. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
| 3. |
XJDH-01133
|
[1] |
PLATE
|
|
| 4. |
XJDH-00071
|
[2] |
BOLT
|
|
| 5. |
XJDH-00280
|
[2] |
WASHER
|
|
| 6. |
XJDH-03395
|
[1] |
COVER(L)
|
|
| 7. |
XJDH-00035
|
[4] |
BOLT
|
|
| 8. |
XJDH-00262
|
[4] |
WASHER
|
|
| 9. |
XJDH-03396
|
[1] |
COVER(R)
|
|
| 10. |
XJDH-00035
|
[5] |
BOLT
|
|
| 11. |
XJDH-00262
|
[5] |
WASHER
|
|
| 12. |
XJDH-03397
|
[1] |
COVER
|
|
| 13. |
XJDH-00034
|
[4] |
BOLT
|
|
| 14. |
XJDH-00276
|
[4] |
WASHER
|
|
| 15. |
XJDH-00001
|
[2] |
LATCH
|
|
| 16. |
XJDH-00215
|
[4] |
SCREW-PANHEAD
|
|
| 17. |
XJDH-00253
|
[4] |
WASHER
|
|
| 18. |
XJDH-03398
|
[1] |
PLATE
|
|
| 19. |
XJDH-00035
|
[3] |
BOLT
|
|
| 20. |
XJDH-00276
|
[3] |
WASHER
|
|
| 21. |
XJDH-01254
|
[1] |
COVER
|
|
| 22. |
XJDH-00035
|
[2] |
BOLT
|
|
| 23. |
XJDH-00276
|
[2] |
WASHER
|
|
| 24. |
XJDH-03399
|
[1] |
URETHAN FOAM
|
|
| 25. |
XJDH-03400
|
[1] |
URETHAN FOAM
|
|
| 26. |
XJDH-03401
|
[2] |
URETHAN FOAM
|
|
| 27. |
XJDH-03402
|
[1] |
URETHAN FOAM
|
|
| 28. |
XJDH-03403
|
[1] |
URETHAN FOAM
|
|
| 29. |
XJDH-03404
|
[1] |
URETHAN FOAM
|
|
| 30. |
XJDH-03405
|
[1] |
URETHAN FOAM
|
|
| 31. |
XJDH-03406
|
[1] |
URETHAN FOAM
|
|
| 32. |
XJDH-00807
|
[3] |
PLATE-DEPPING
|
|
| 33. |
XJDH-00034
|
[3] |
BOLT
|
|
| 34. |
XJDH-00276
|
[3] |
WASHER
|
|
| 35. |
XJDH-03484
|
[1] |
STRIP-WEATHER
|
|
| 36. |
XJDH-00715
|
[1] |
STRIP-WEATHER
|
|
| 37. |
XJDH-03485
|
[1] |
STRIP-WEATHER
|
|
| 38. |
XJDH-03486
|
[1] |
STRIP-WEATHER
|
|
| 39. |
XJDH-03487
|
[1] |
GROMMET
|
|
| 40. |
XJDH-03488
|
[1] |
HOSE-RUBBER
|
|
| 41. |
XJDH-03489
|
[1] |
HOSE-RUBBER
|
|
