神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (01-003) - COUNTER-WEIGHT, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
947 次

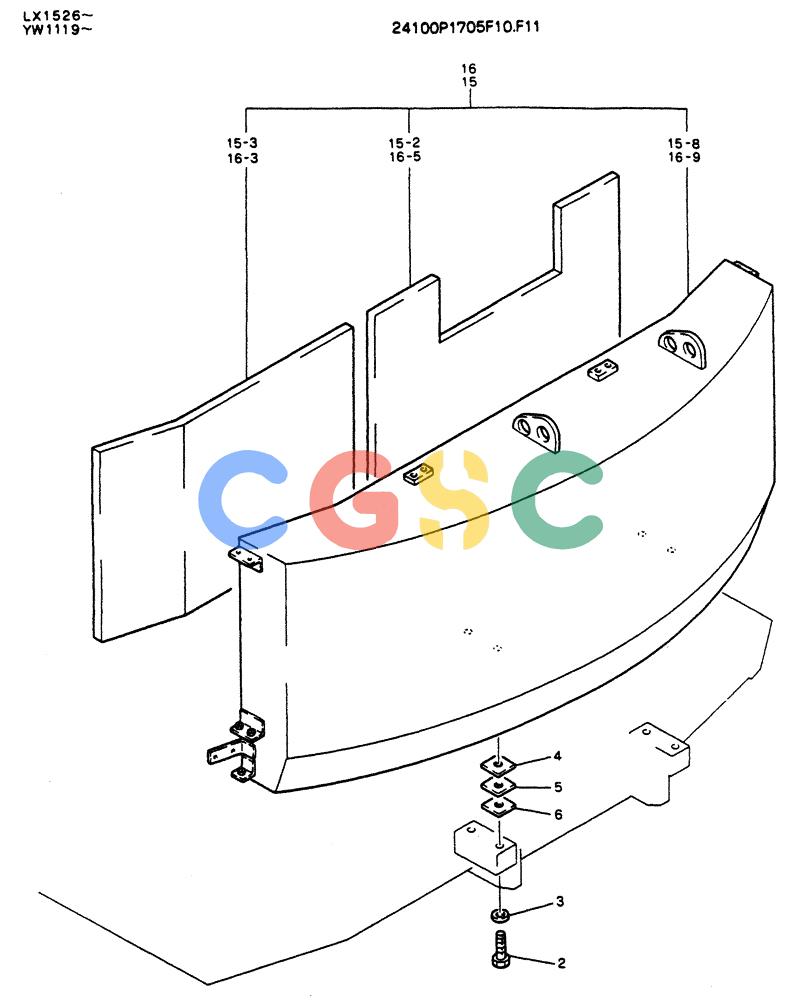

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1705F10 | [1] | COUNTER WEIGHT ASSY | |
| 2. | 2420Z933D3 | [4] | SCREW | KOB |
| 3. | R16T0152D4 | [4] | WASHER | KOBFlat -- ID 24 x OD 44 x Th 4.5mm |
| 4. | 2418T12306D2 | [2] | SHIM | KOB |
| 5. | 2418T12306D3 | [2] | SHIM | KOB |
| 6. | 2418T12306D6 | [2] | SHIM | KOB |
| 15. | 24100P1796F7 | [1] | COUNTER WEIGHT,ASSY | |
| 15-2. | 2427T1807 | [1] | INSULATION,SOUND | |
| 15-3. | 2427T1808 | [1] | FOAM INSULATION | KOB |
| 15-8. | 2422J2433D2 | [1] | COUNTER-WEIGHT | |
| . . | 24100P1705F11 | [1] | COUNTER HEIGHT ASSY | |
| 16. | 24100P1796F8 | [1] | COUNTER WEIGHT,ASSY | |
| 16-3. | 2427T1808 | [1] | FOAM INSULATION | KOB |
| 16-5. | 2427T1876 | [1] | INSULATION,SOUND | |
| 16-9. | 2422J2455D2 | [1] | COUNTER-WEIGHT | |
