神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (02-013) - SUSPENSION, SEAT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
404 次

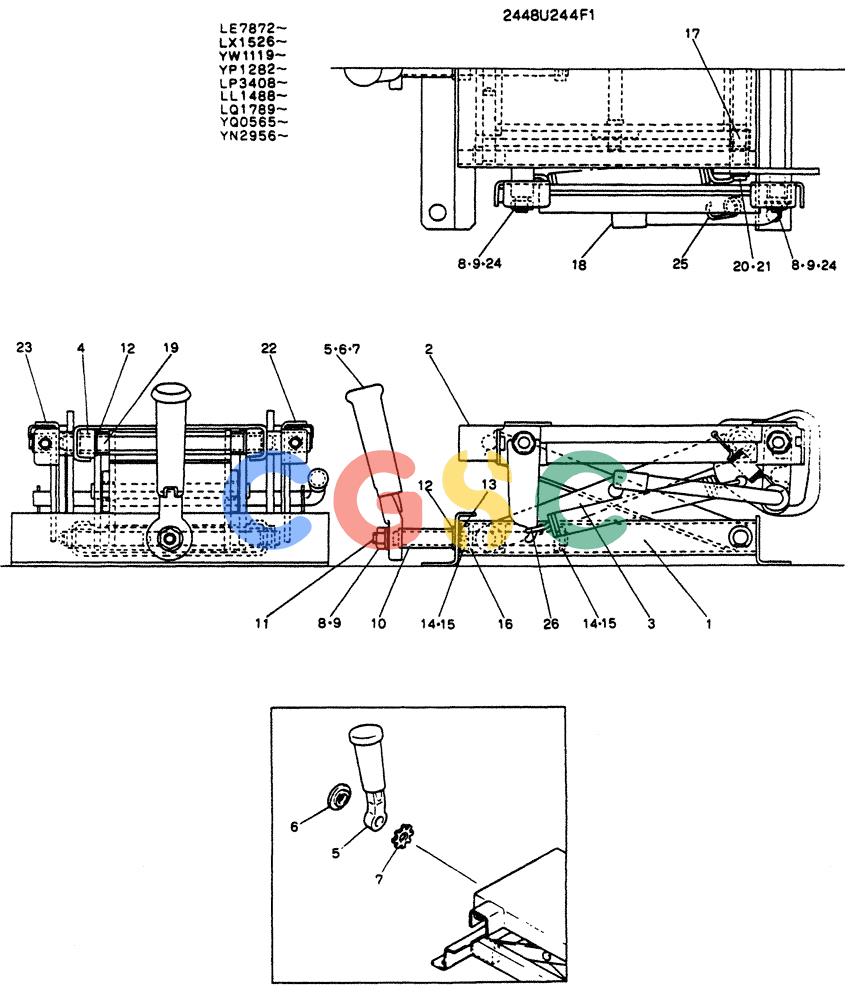

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2448U244F1 | [1] | SUSPENSION, SEAT SUSPENSION,SEAT | SUSPENSION, SEAT SUSPENSION,SEAT |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET ASSY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET ASSY |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONLINK ASSY |
| 4. | NSS | [4] | NOT SOLD SEPARAT | CONBLOCK |
| 5. | 2448U233S1 | [1] | HANDLE | KOBHANDLE,RATCHET |
| 6. | 2448U233S2 | [1] | SPACER | KOBRATCHET |
| 7. | 2448U233S3 | [1] | WHEEL | KOBRATCHET |
| 8. | NSS | [5] | NOT SOLD SEPARAT | CONNUT |
| 9. | NSS | [5] | NOT SOLD SEPARAT | CONLOCK WASHER |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONCOLLAR |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONADJUST SHAFT |
| 12. | NSS | [3] | NOT SOLD SEPARAT | CONWASHER |
| 14. | NSS | [2] | NOT SOLD SEPARAT | CONSHAFT COLLAR |
| 15. | NSS | [2] | NOT SOLD SEPARAT | CONPIN,ROLL |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONSPACER PIPE |
| 17. | NSS | [4] | NOT SOLD SEPARAT | CONBEARING,FLANGE |
| 18. | NSS | [1] | NOT SOLD SEPARAT | CONCAP |
| 19. | NSS | [2] | NOT SOLD SEPARAT | CONCOLLAR,RATCHET |
| 20. | NSS | [2] | NOT SOLD SEPARAT | CONSHAFT,HINGE |
| 21. | NSS | [4] | NOT SOLD SEPARAT | CONE-RING |
| 22. | 2448U244S22 | [1] | SIDE PLATE | KOB |
| 23. | 2448U244S23 | [1] | SIDE PLATE | KOB |
| 24. | NSS | [4] | NOT SOLD SEPARAT | CONWASHER |
| 25. | 2448U244S25 | [2] | LOCK SPRING | |
| 26. | 2448U244S26 | [2] | SPRING | |
