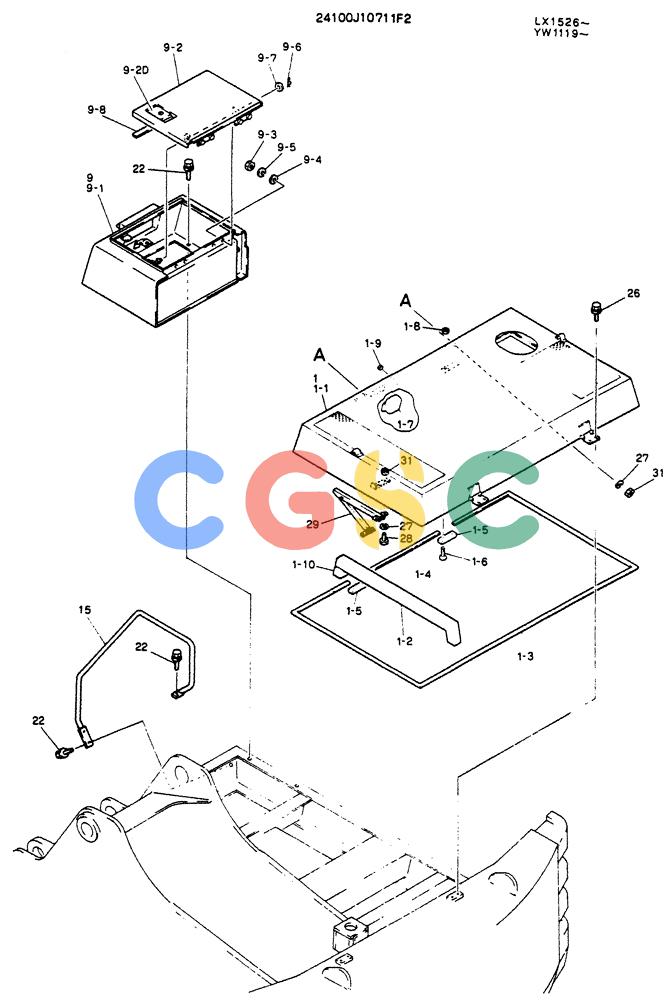

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (02-014[02]) - GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
130 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10711F2 | [1] | GUARD ASSY | |
| 1. | 24100P2554F1 | [1] | COVER ASSY | |
| 1-1. | 2414J1894 | [1] | COVER | |
| 1-2. | 2479T1788 | [1] | FOAM INSULATION | KOB |
| 1-3. | 2416Z570 | [1] | CUSHION | KOB |
| 1-4. | 2416Z485D7 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 1-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOB |
| 1-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 1-7. | 2406Z304 | [1] | HANDLE | KOB |
| 1-8. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 1-9. | 2420R429D14 | [2] | GROMMET | KOB |
| 1-10. | 2416Z599 | [1] | INSULATOR | KOB |
| 2. | 2414T2948F1 | [1] | COVER ASSY | COVER ASSY |
| 2-1. | 2414P6071 | [1] | COVER | COVER |
| 2-1C. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 2-2. | 2479T1239 | [1] | INSULATION,SOUND | |
| 2-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 3. | 2414T3853F1 | [1] | COVER ASSY | COVER ASSY |
| 3-1. | 2414P6081 | [1] | COVER | |
| 3-1C. | 2427R476F2 | [1] | LOCK | KOBLOCK Superseded by part number: 2421R175F1 |
| 3-2. | 2479T1240 | [1] | INSULATION.SOUND | |
| 3-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 4. | 2414P6704 | [1] | COVER | KOB |
| 5. | 2414P6705 | [1] | COVER | COVER |
| 7. | 2414P6070 | [1] | COVER | COVER |
| 8. | 2414T3893F1 | [1] | COVER ASSY | |
| 8-1. | 2414N3955 | [1] | COVER | COVER |
| 8-2. | 2427T1782 | [1] | INSULATION.SOUND | |
| 8-3. | 2427T1783 | [1] | INSULATION,SOUND | |
| 8-4. | 2427T1784 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 9. | 24100N5739F1 | [1] | BOX ASSY, BATTERY | BOX ASSY, BATTERY |
| 9-1. | 2414N3772 | [1] | BOX | KOB |
| 9-2. | 2414P6073 | [1] | COVER | COVER |
| 9-2D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-3. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-7. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 9-8. | 2416Z440D4 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 10. | 2416N3518 | [1] | BRACKET | BRACKET |
| 11. | 2416J880 | [1] | BRACKET | KOB |
| 12. | 2416N3348 | [1] | BRACKET | BRACKET |
| 13. | 2416N3386 | [1] | BRACKET | KOB |
| 14. | 2414T3894F1 | [1] | COVER ASSY | COVER ASSY |
| 14-1. | 2414P6207 | [1] | COVER | |
| 14-2. | 2427T1785 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 15. | 2427P3013 | [1] | HANDRAIL | KOB |
| 16. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 17. | 2427R302D2 | [1] | CATCH | KOB |
| 18. | 2416T6289D2 | [2] | STAY | KOBSTAY |
| 19. | 2420Z1030 | [1] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 20. | 2416T13435 | [2] | RUBBER | KOB |
| 21. | 2416N3387 | [1] | BRACKET | BRACKET |
| 22. | 2420T6787 | [16] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 23. | 2414P6707 | [1] | STAY | |
| 24. | 2416T13007 | [4] | BRACKET | KOB |
| 25. | 2420T6788 | [8] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 26. | 2420T6786 | [33] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 27. | ZW26X08000 | [16] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 28. | ZS18C08020 | [16] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 29. | 2416P8732 | [1] | STAY | KOB |
| 30. | ZN18C10008 | [8] | NUT | KOBM10x1.50mm |
| 31. | ZN18C08007 | [12] | NUT | KOBM08x1.25mm |
| 32. | 2419R9D3 | [2] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 33. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 35. | 2414T3892F1 | [1] | COVER ASSY | |
| 35-1. | 2414T2946 | [1] | COVER | |
| 35-2. | 2427T1781 | [1] | INSULATION, SOUND | |
| 36. | ZW26X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 37. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 49. | 2418T12346 | [8] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
