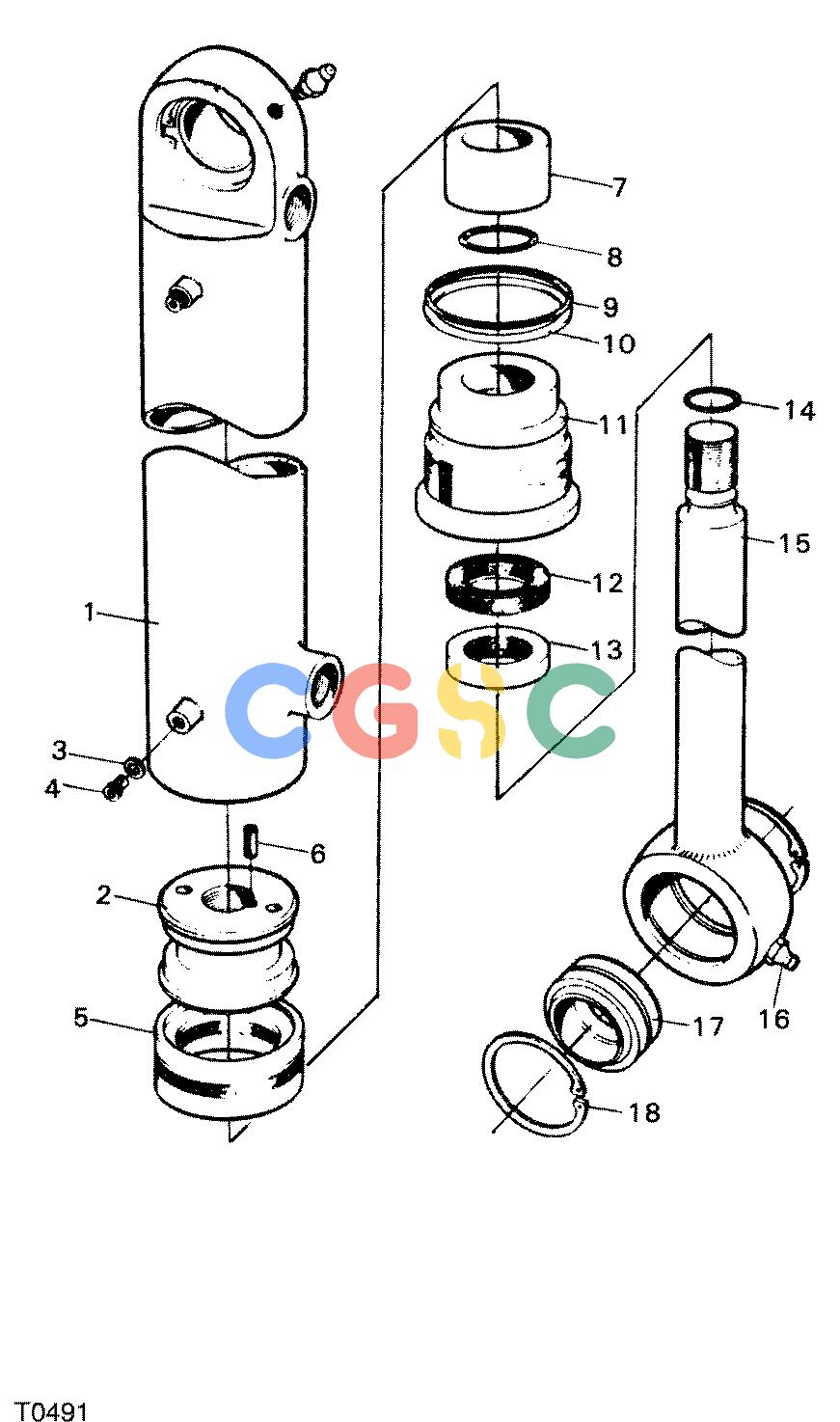

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE CYLINDER F048249 11 30 T0491 [T0491]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
430 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F034341
|
[1] |
Cylinder
|
|
| 1. |
F053316
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F005612
|
[1] |
Piston
|
|
| 5. |
F015236
|
[1] |
Seal
|
|
| 6. |
F011446
|
[1] |
STOP SCREW
|
|
| 9. |
F003291
|
[1] |
O-Ring
|
|
| 10. |
F003765
|
[1] |
SUPPORT RING
|
|
| 11. |
F034281
|
[1] |
Guide
|
|
| 12. |
F034664
|
[1] |
Seal
|
|
| 13. |
F007653
|
[1] |
Scraper
|
|
| 14. |
F005500
|
[1] |
O-Ring
|
|
| 15. |
F034340
|
[1] |
PISTON ROD
|
|
| 17. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 18. |
F003370
|
[4] |
CIRCLIP
|
|
| |
F012925
|
[1] |
Seal Kit
|
|
