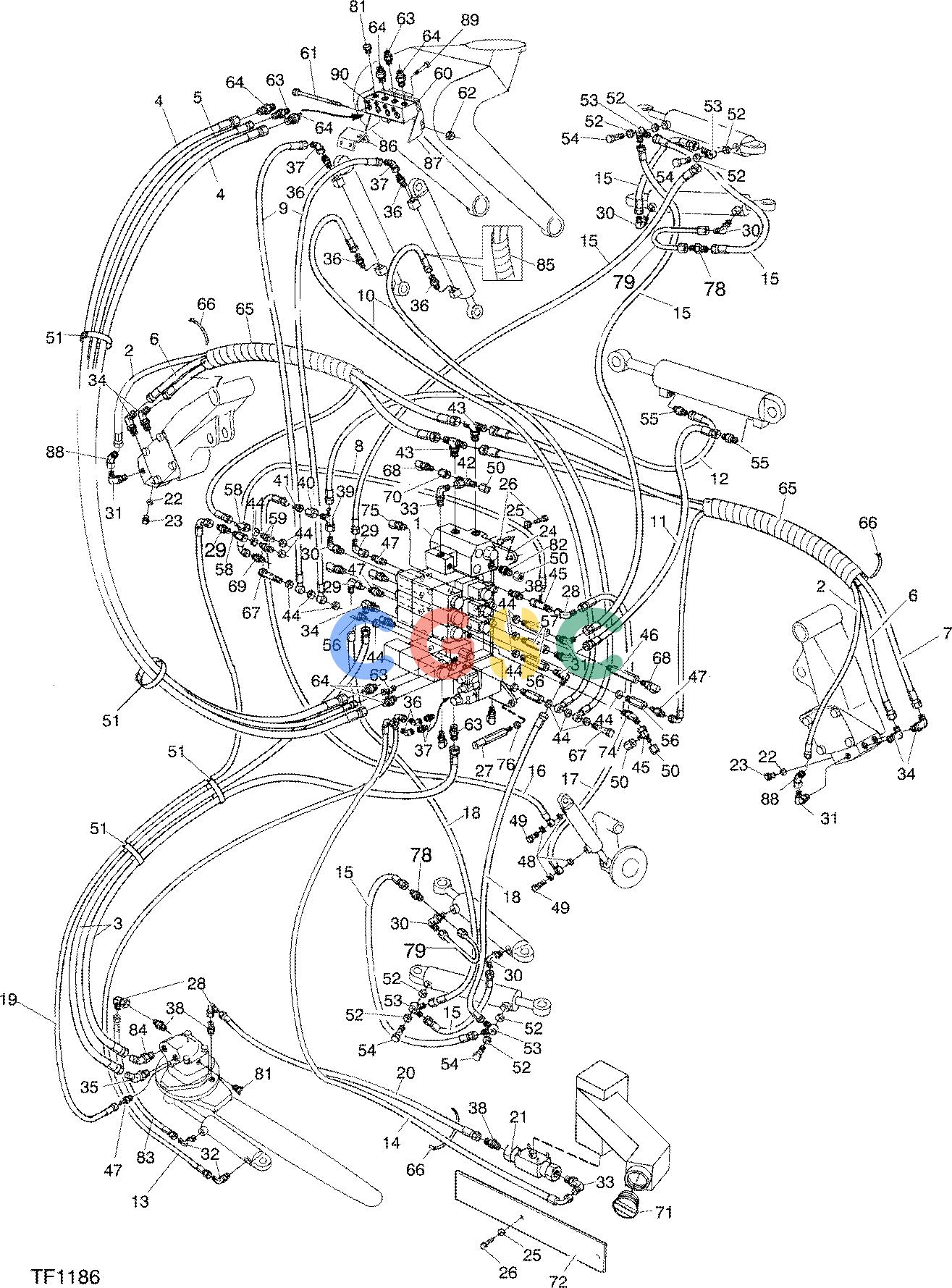

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F048249 11 10.1 TF1186 [TF1186]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
357 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F046451
|
[1] |
HYDRAULIC VALVE
|
|
| 2. |
F051966
|
[2] |
HOSE-ASSY
|
|
| 3. |
F043892
|
[2] |
HOSE-ASSY
|
|
| 4. |
F049942
|
[2] |
HOSE-ASSY
|
|
| 5. |
F049941
|
[1] |
HOSE-ASSY
|
|
| 6. |
F046722
|
[2] |
HOSE-ASSY
|
|
| 7. |
F046723
|
[2] |
HOSE-ASSY
|
|
| 8. |
F046745
|
[1] |
HOSE-ASSY
|
|
| 9. |
F043895
|
[2] |
HOSE-ASSY
|
|
| 10. |
F043894
|
[2] |
HOSE-ASSY
|
|
| 11. |
F046724
|
[1] |
HOSE-ASSY
|
|
| 12. |
F046725
|
[1] |
HOSE-ASSY
|
|
| 13. |
F043919
|
[1] |
HOSE-ASSY
|
|
| 14. |
F051121
|
[1] |
HOSE-ASSY
|
|
| 15. |
F046726
|
[6] |
HOSE-ASSY
|
|
| 16. |
F046728
|
[1] |
HOSE-ASSY
|
|
| 17. |
F046744
|
[1] |
HOSE-ASSY
|
|
| 18. |
F046607
|
[2] |
HOSE-ASSY
|
|
| 19. |
F046727
|
[1] |
HOSE-ASSY
|
|
| 20. |
F046785
|
[1] |
HOSE-ASSY
|
|
| 21. |
F012628
|
[1] |
Pump
|
|
| 22. |
F005162
|
[2] |
SEAL RING
|
|
| 23. |
F010192
|
[2] |
Plug
|
|
| 24. |
F045892
|
[1] |
Bracket
|
|
| 25. |
F002805
|
[10] |
Lock Washer
|
|
| 26. |
F003541
|
[10] |
Screw
|
|
| 27. |
F045894
|
[2] |
HEXAGON BAR
|
|
| 28. |
F022417
|
[3] |
ELBOW NIPPLE
|
|
| 29. |
F005045
|
[3] |
ELBOW NIPPLE
|
|
| 30. |
F012592
|
[5] |
ELBOW NIPPLE
|
|
| 31. |
F010072
|
[5] |
ELBOW NIPPLE
|
|
| 32. |
F024402
|
[2] |
ELBOW NIPPLE
|
|
| 33. |
F024599
|
[2] |
ELBOW NIPPLE
|
|
| 34. |
F005049
|
[5] |
ELBOW NIPPLE
|
|
| 35. |
F020756
|
[1] |
ELBOW NIPPLE
|
|
| 36. |
F005055
|
[6] |
NIPPLE
|
|
| 37. |
F013594
|
[4] |
ELBOW NIPPLE
|
|
| 38. |
F005057
|
[4] |
NIPPLE
|
|
| 39. |
F005073
|
[1] |
L-CONNECTION
|
|
| 40. |
F010079
|
[1] |
COUPLING NUT
|
|
| 41. |
F043110
|
[1] |
NIPPLE
|
|
| 42. |
F005076
|
[1] |
T-CONNECTION
|
|
| 43. |
F046718
|
[2] |
T-CONNECTION
|
|
| 44. |
F005167
|
[16] |
SEAL RING
|
|
| 45. |
F023535
|
[2] |
L-CONNECTION
|
|
| 46. |
F046045
|
[1] |
CONNECTION
|
|
| 47. |
F005060
|
[4] |
NIPPLE
|
|
| 48. |
F008223
|
[4] |
COPPER WASHER
|
|
| 49. |
F012789
|
[2] |
BANJO SCREW
|
|
| 50. |
F039981
|
[4] |
Nut
|
|
| 51. |
F011353
|
[4] |
Belt
|
|
| 52. |
F005168
|
[8] |
SEAL RING
|
|
| 53. |
F012529
|
[4] |
BANJO CONNECTION
|
|
| 54. |
F005557
|
[4] |
BANJO SCREW
|
|
| 55. |
F005059
|
[2] |
NIPPLE
|
|
| 56. |
F019945
|
[3] |
NIPPLE
|
|
| 57. |
F019944
|
[3] |
NIPPLE
|
|
| 58. |
F011485
|
[2] |
NIPPLE
|
|
| 59. |
F004357
|
[2] |
NIPPLE
|
|
| 60. |
F048122
|
[1] |
BLOCK
|
|
| 61. |
F013609
|
[1] |
Screw
|
|
| 62. |
F003590
|
[1] |
Lock Nut
|
|
| 63. |
F005063
|
[4] |
NIPPLE
|
|
| 64. |
F005095
|
[6] |
NIPPLE
|
|
| 65. |
F032113
|
[2] |
HOSE PROTECTION
|
|
| 66. |
F005334
|
[5] |
Binder
|
|
| 67. |
F027699
|
[2] |
BANJO SCREW
|
|
| 68. |
F017320
|
[2] |
MEASURING NIPPLE
|
|
| 69. |
F042067
|
[1] |
THROTTLE NIPPLE
|
|
| 70. |
F027231
|
[1] |
NIPPLE
|
|
| 71. |
F021332
|
[1] |
REFILLING COVER
|
|
| 72. |
F045950
|
[1] |
Bracket
|
|
| 74. |
F046497
|
[1] |
ELBOW NIPPLE
|
|
| 75. |
F047314
|
[1] |
MEASURING NIPPLE
|
|
| 76. |
F005012
|
[2] |
Lock Washer
|
|
| 78. |
F026843
|
[2] |
CONNECTION
|
|
| 79. |
F046920
|
[2] |
PIPE ASSY
|
|
| 81. |
F018111
|
[3] |
Plug
|
|
| 82. |
F005056
|
[1] |
NIPPLE
|
|
| 83. |
F041527
|
[1] |
HOSE-ASSY
|
|
| 84. |
F049283
|
[1] |
THROTTLE NIPPLE
|
|
| 85. |
F031276
|
[2] |
PROTECTION SPIRAL
|
|
| 86. |
F049134
|
[1] |
FASTENING PLATE
|
|
| 87. |
F049133
|
[1] |
Bracket
|
|
| 88. |
F012521
|
[2] |
ELBOW NIPPLE
|
|
| 89. |
F003487
|
[4] |
Screw
|
|
| 90. |
F003588
|
[4] |
Lock Nut
|
|
