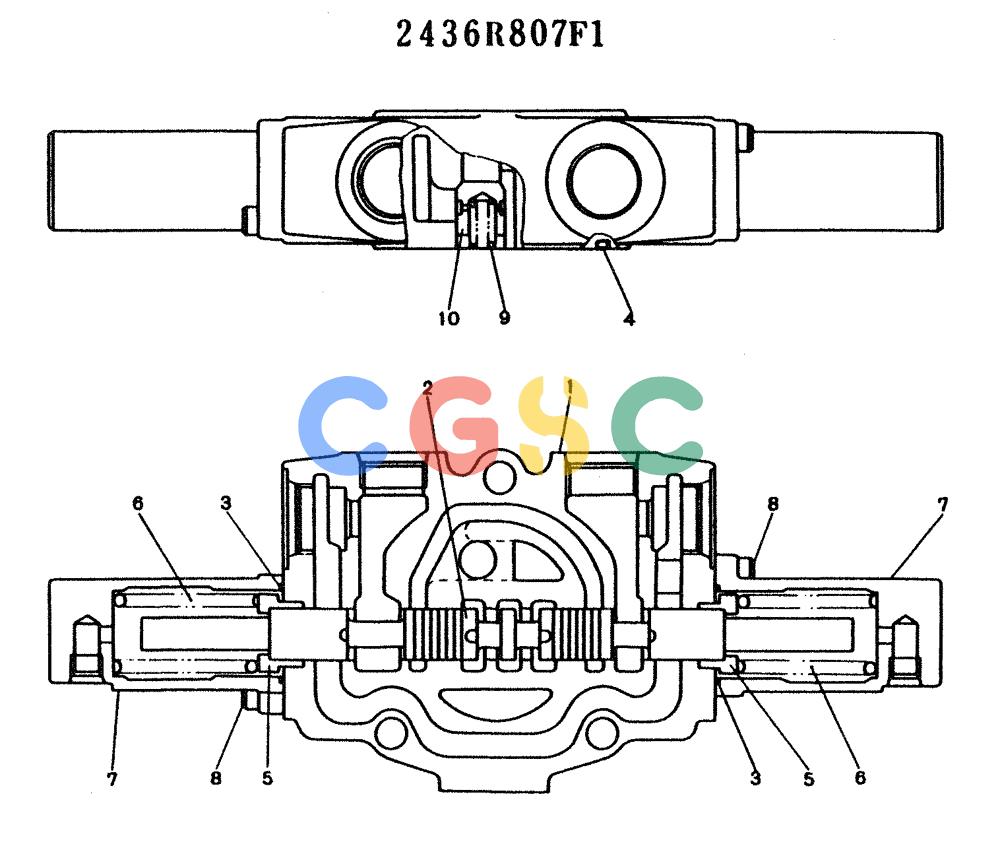

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-015) - SPOOL ASSY, P/N 2436R807F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R807F1 | [1] | SPOOL | KOBSPOOL ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | B36K0019E260 | [2] | O-RING | KOB |
| 4. | B36K0019E212 | [1] | O-RING | KOB |
| 5. | 2436R461S7 | [2] | SPRING SEAT | KOB |
| 6. | 2436R807S6 | [2] | SPRING | KOB |
| 7. | 2436R807S7 | [2] | CAP | |
| 8. | ZS23C06022 | [4] | CAPSCREW,Hex Socket Head, M6 x 22mm | KOBSCREW M06x1.0x22mm |
| 9. | B36K0019E226 | [1] | SPRING | KOB |
| 10. | B36K0019E227 | [1] | POPPET | KOB |
