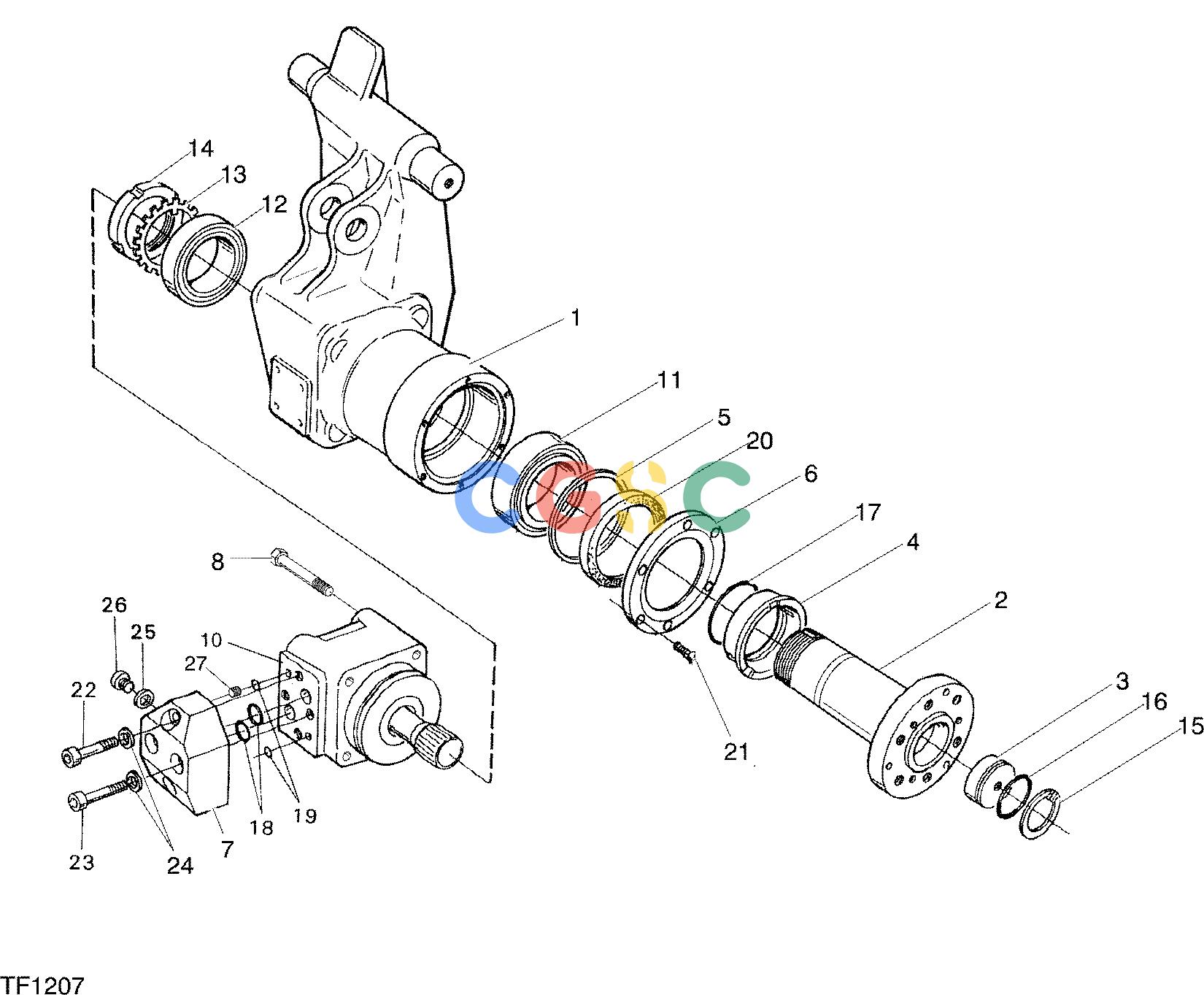

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE WHEEL ARM, DANFOSS 630CC F048249 11 4.A TF1207 [TF1207]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F600408
|
[1] |
WHEEL MOUNTING ASSY
|
|
| |
F600407
|
[1] |
WHEEL MOUNTING ASSY
|
|
| 1. |
F052540
|
[1] |
WHEEL MOUNTING
|
|
| 1. |
F052541
|
[1] |
WHEEL MOUNTING
|
|
| 2. |
F014622
|
[1] |
WHEEL SHAFT
|
|
| 3. |
F014648
|
[1] |
Washer
|
|
| 4. |
F014623
|
[1] |
SLIDE RING
|
|
| 5. |
F014625
|
[1] |
SPACER RING
|
|
| 6. |
F049314
|
[1] |
Cap
|
|
| 7. |
F014651
|
[1] |
BLOCK
|
|
| 8. |
F051619
|
[4] |
Screw
|
|
| 10. |
F046370
|
[1] |
Hydraulic Motor
|
|
| 11. |
F005590
|
[1] |
Roller Bearing
|
|
| 12. |
F005587
|
[1] |
Roller Bearing
|
|
| 13. |
F003830
|
[1] |
Lock Washer
|
|
| 14. |
F003155
|
[1] |
Lock Nut
|
|
| 15. |
F003371
|
[1] |
CIRCLIP
|
|
| 16. |
F003290
|
[1] |
O-Ring
|
|
| 17. |
F005457
|
[1] |
O-Ring
|
|
| 18. |
F003144
|
[2] |
O-Ring
|
|
| 19. |
F010961
|
[2] |
O-Ring
|
|
| 19. |
F004562
|
[2] |
O-Ring
|
|
| 20. |
F049315
|
[1] |
SEAL RING
|
|
| 21. |
F012851
|
[6] |
Screw
|
|
| 22. |
F003431
|
[1] |
Screw
|
|
| 22. |
F003426
|
[1] |
Screw
|
|
| 23. |
F024369
|
[3] |
Screw
|
|
| 24. |
F002805
|
[4] |
Lock Washer
|
|
| 25. |
F005166
|
[1] |
SEAL RING
|
|
| 26. |
F003383
|
[1] |
Plug
|
|
| 27. |
F016407
|
[1] |
Plug
|
|
