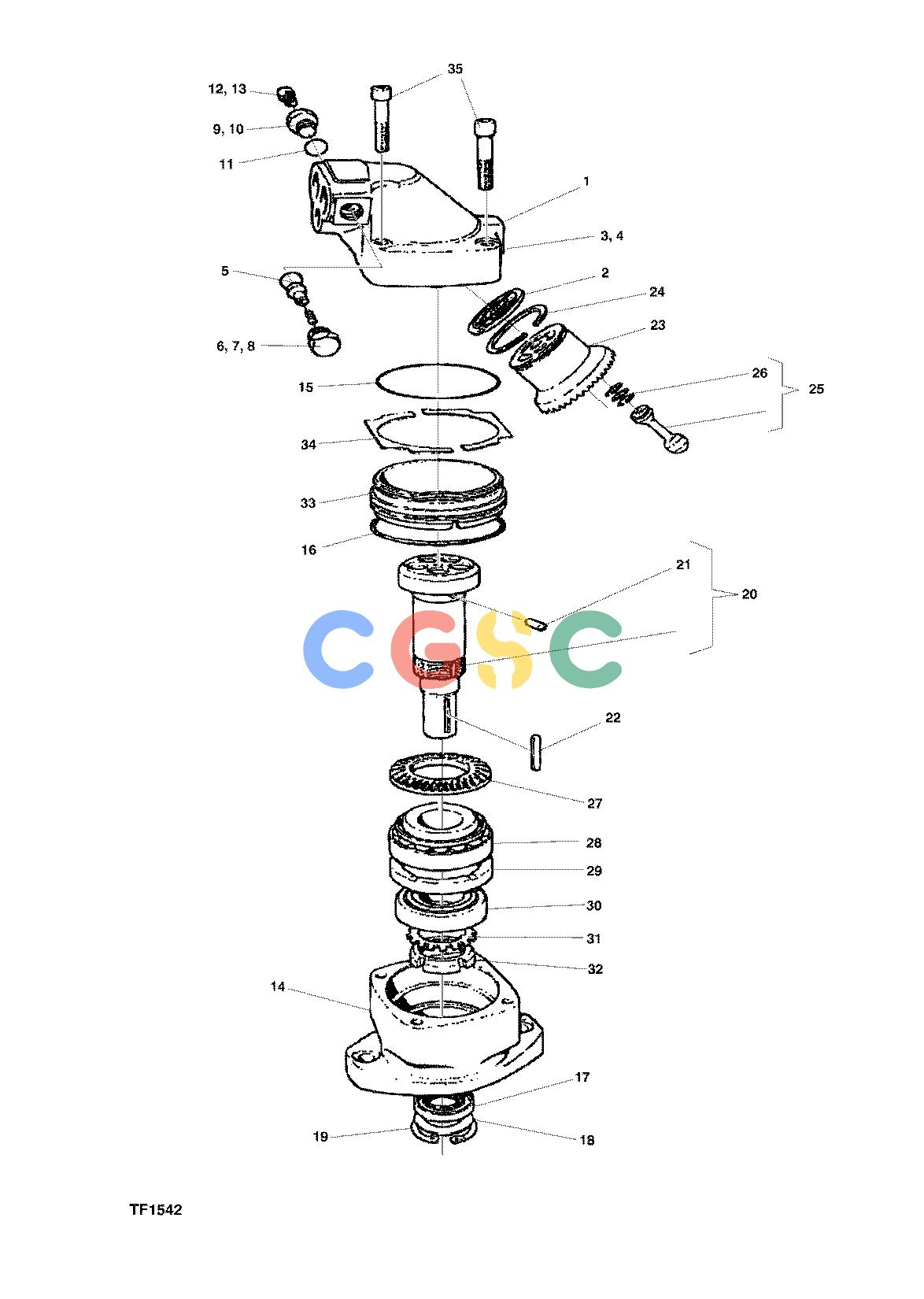

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR, SAW F048249 11 40.1 TF1542 [TF1542]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F055824
|
[1] |
Hydraulic Motor
|
|
| 1. |
F057830
|
[1] |
Housing
|
|
| 2. |
F057831
|
[1] |
DISC
|
|
| 3. |
F003383
|
[1] |
Plug
|
|
| 4. |
F005166
|
[1] |
SEAL RING
|
|
| 5. |
F049077
|
[1] |
Check Valve
|
|
| 6. |
F057832
|
[1] |
Plug
|
|
| 7. |
F056924
|
[1] |
Plug
|
|
| 8. |
F049075
|
[1] |
O-Ring
|
|
| 9. |
F057833
|
[1] |
Plug
|
|
| 10. |
F049076
|
[1] |
Plug
|
|
| 11. |
F049075
|
[1] |
O-Ring
|
|
| 12. |
F003382
|
[1] |
Plug
|
|
| 13. |
F005164
|
[1] |
SEAL RING
|
|
| 14. |
F035012
|
[1] |
Housing
|
|
| 15. |
F003228
|
[1] |
O-Ring
|
|
| 16. |
F003229
|
[1] |
O-Ring
|
|
| 17. |
F003230
|
[1] |
Seal
|
|
| 18. |
F035014
|
[1] |
SUPPORT RING
|
|
| 19. |
F003372
|
[1] |
CIRCLIP
|
|
| 20. |
F035015
|
[1] |
Shaft
|
|
| 21. |
F035016
|
[1] |
GUIDING PIN
|
|
| 22. |
F035017
|
[1] |
Wedge
|
|
| 23. |
F035018
|
[1] |
CYLINDER DRUM
|
|
| 24. |
F035019
|
[1] |
CIRCLIP
|
|
| 25. |
F035020
|
[5] |
Piston
|
|
| 26. |
F035021
|
[15] |
Piston Ring
|
|
| 27. |
F035022
|
[1] |
GEAR RIM
|
|
| 28. |
F022721
|
[1] |
Roller Bearing
|
|
| 29. |
F035024
|
[1] |
SPACER RING
|
|
| 30. |
F035025
|
[1] |
Roller Bearing
|
|
| 31. |
F003828
|
[2] |
Lock Washer
|
|
| 32. |
F003833
|
[1] |
Lock Nut
|
|
| 33. |
F057834
|
[2] |
Sleeve
|
|
| 34. |
F057835
|
[2] |
Shim
|
|
| 34. |
F057836
|
[2] |
Shim
|
|
| 34. |
F057837
|
[2] |
Shim
|
|
| 34. |
F057838
|
[2] |
Shim
|
|
| 34. |
F057839
|
[2] |
Shim
|
|
| 35. |
F003421
|
[4] |
Screw
|
|
