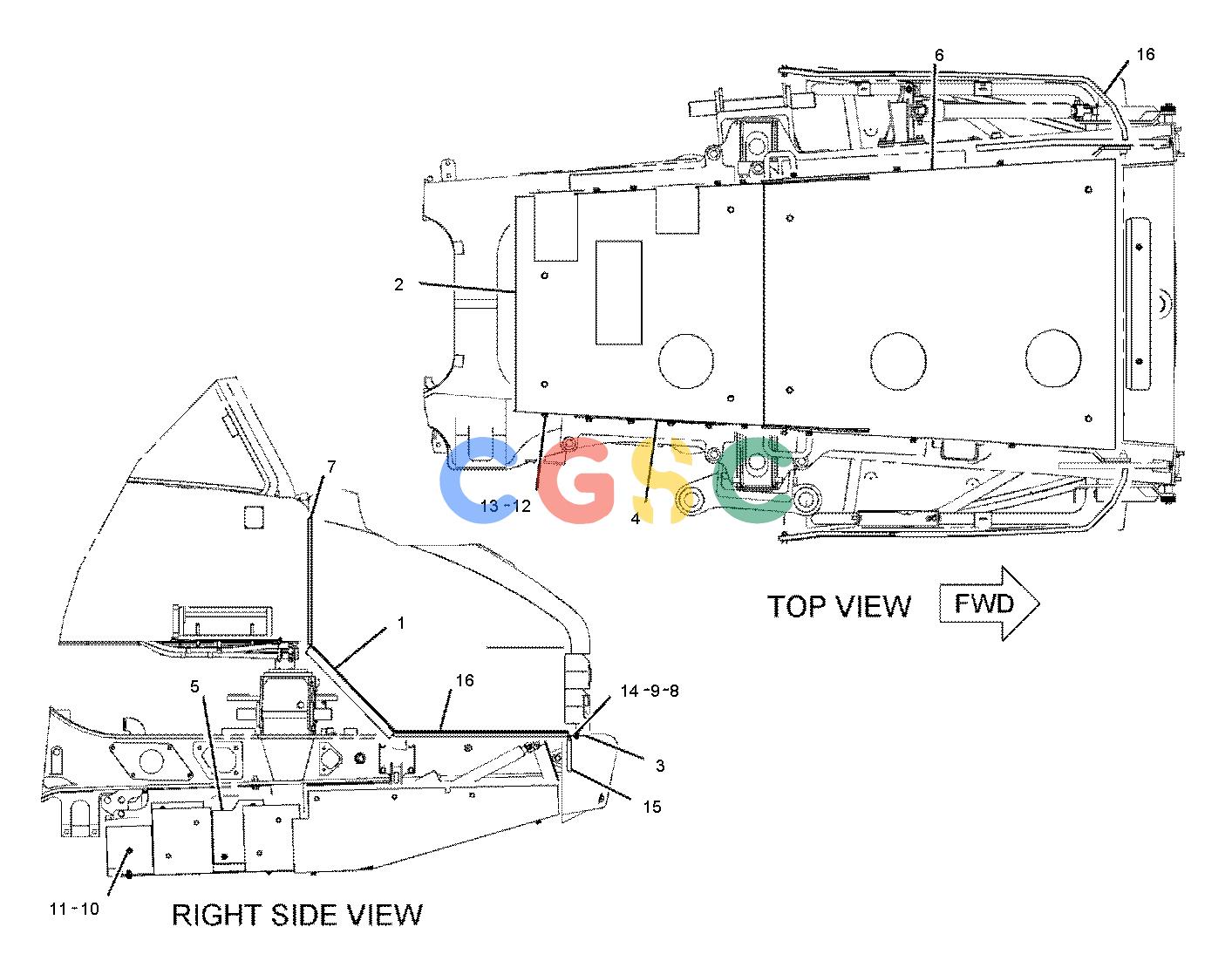

卡特零件查询（730） 264-1929: SUPPRESSION AR-SOUND
广数供应链运营团队, 15 02月, 2025，浏览：
169 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-8699E | | SEAL(56.9-CM EACH) | |
| 2. | 281-1544 | [1] | SHEET AS-SOUND SUPPRESSION | |
| 3. | 217-9642 | [1] | PLATE | |
| 4. | 218-0056 | [1] | PANEL | |
| 5. | 239-4802 | [1] | ABSORBER AS-SHOCK | |
| 6. | 264-1930 | [1] | SHOCK ABSORBER | |
| 7. | 217-8590 | [2] | SEAL-RUBBER | |
| 8. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 9. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 10. | 7X-7729 | [25] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-0389M | [25] | LOCKNUT(M10X1.5-THD) | |
| 12. | 8T-4121 | [25] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4195M | [25] | BOLT(M10X1.5X30-MM) | |
| 14. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 15. | 217-9643 | [1] | SEAL-RUBBER | |
| 16. | 217-8589 | [2] | SEAL-RUBBER | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
