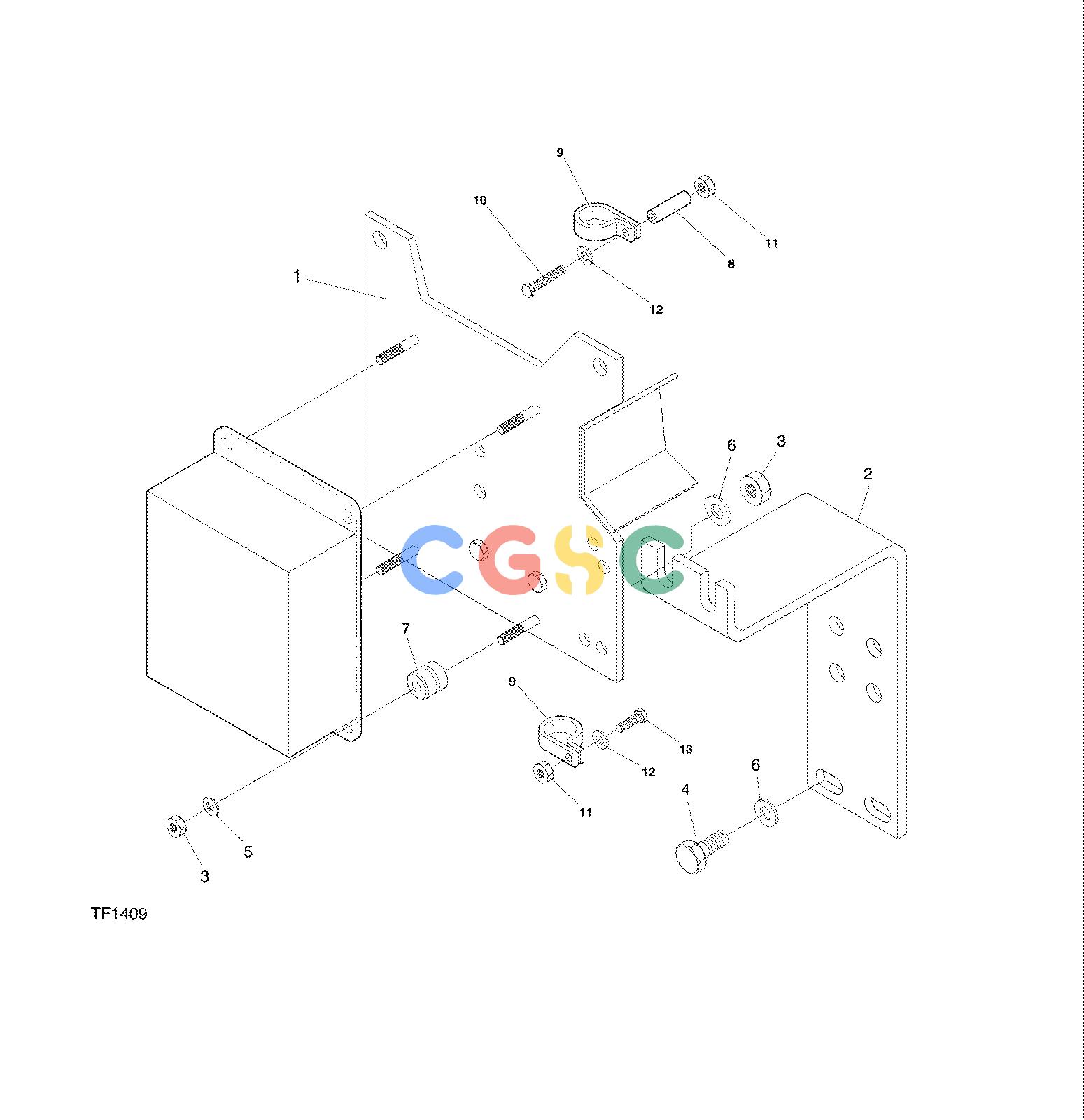

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE ELECTRICAL BOX MOUNTING F048249 11 52.1 TF1409 [TF1409]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
999 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F600399
|
[1] |
FASTENING PLATE
|
|
| 2. |
F600375
|
[1] |
FASTENING
|
|
| 3. |
F040934
|
[6] |
Lock Nut
|
|
| 4. |
F003524
|
[2] |
Screw
|
|
| 5. |
F003339
|
[4] |
Washer
|
|
| 6. |
F003338
|
[4] |
Washer
|
|
| 7. |
F055044
|
[4] |
Grommet
|
|
| 8. |
F616148
|
[1] |
Spacer
|
|
| 9. |
F028842
|
[2] |
HOSE HOLDER
|
|
| 9. |
F017094
|
[2] |
HOSE HOLDER
|
|
| 10. |
F003470
|
[1] |
Screw
|
|
| 11. |
F003586
|
[2] |
LOCKNUT
|
|
| 12. |
F003337
|
[2] |
Washer
|
|
| 13. |
F003519
|
[1] |
Screw
|
|
