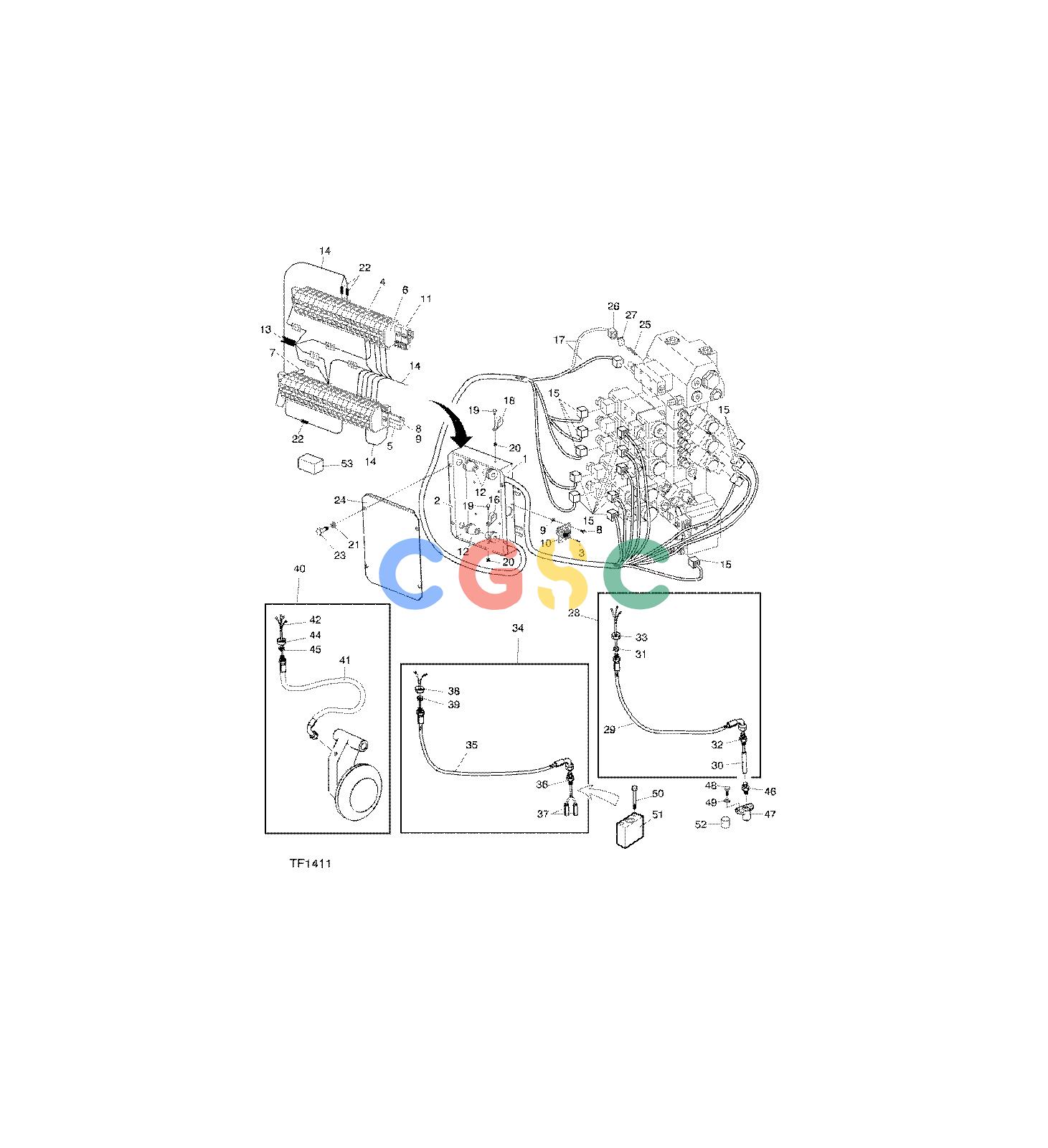

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE ELECTRICAL SYSTEM, DAPT 513/FMG1000/LOC90 F048249 11 44.1 TF1411 [TF1411]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
883 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F603201
|
[1] |
EL. EQUIPMENTS
|
|
| 1. |
F602509
|
[1] |
ELECTRICAL BOX
|
|
| 2. |
F602449
|
[1] |
CONNECTING BOX
|
|
| 3. |
F013785
|
[37] |
Sleeve
|
|
| 4. |
F011490
|
[38] |
Clamp
|
|
| 5. |
F013235
|
[1] |
Rail
|
|
| 6. |
F011492
|
[2] |
Plate
|
|
| 7. |
F017481
|
[1] |
Cable
|
|
| 8. |
F017797
|
[8] |
Screw
|
|
| 9. |
F003584
|
[8] |
Lock Nut
|
|
| 10. |
F015700
|
[1] |
CONNECTOR HOUSING
|
|
| 11. |
F019381
|
[6] |
TERMINAL BLOCK
|
|
| 12. |
F015541
|
[4] |
Grommet
|
|
| 13. |
F041886
|
[1] |
TIME RELAY
|
|
| 14. |
-------
|
[%] |
Cable
|
|
| 15. |
F035038
|
[17] |
Cable
|
|
| 16. |
F041384
|
[1] |
HOSE HOLDER
|
|
| 17. |
F046748
|
[1] |
Cable
|
|
| 18. |
F015015
|
[1] |
HOSE HOLDER
|
|
| 19. |
F003518
|
[2] |
Screw
|
|
| 20. |
F003586
|
[2] |
Lock Nut
|
|
| 21. |
F003338
|
[4] |
Washer
|
|
| 22. |
F032160
|
[3] |
Resistor
|
|
| 23. |
F003523
|
[4] |
Screw
|
|
| 24. |
F602457
|
[1] |
Cover
|
|
| 25. |
F023007
|
[4] |
Sleeve
|
|
| 26. |
F024301
|
[2] |
Connector
|
|
| 27. |
F040655
|
[2] |
Gasket
|
|
| 28. |
F047013
|
[1] |
CABLE HARNESS
|
|
| 29. |
F046740
|
[1] |
HOSE-ASSY
|
|
| 30. |
F033304
|
[1] |
Sensor
|
|
| 31. |
F028803
|
[1] |
Grommet
|
|
| 32. |
F010919
|
[1] |
NIPPLE
|
|
| 33. |
F010079
|
[1] |
COUPLING NUT
|
|
| 34. |
F047011
|
[1] |
Cable
|
|
| 35. |
F046741
|
[1] |
HOSE-ASSY
|
|
| 36. |
F005060
|
[1] |
NIPPLE
|
|
| 37. |
F018091
|
[1] |
SENSOR CABLE
|
|
| 38. |
F010079
|
[1] |
COUPLING NUT
|
|
| 39. |
F028803
|
[1] |
Grommet
|
|
| 40. |
F047010
|
[1] |
CABLE HARNESS
|
|
| 41. |
F604313
|
[1] |
HOSE-ASSY
|
|
| 42. |
-------
|
[%] |
Cable
|
|
| 44. |
F022415
|
[1] |
COUPLING NUT
|
|
| 45. |
F028802
|
[1] |
Grommet
|
|
| 46. |
F010919
|
[1] |
NIPPLE
|
|
| 47. |
F035590
|
[1] |
Holder
|
|
| 48. |
F003541
|
[2] |
Screw
|
|
| 49. |
F002805
|
[2] |
Lock Washer
|
|
| 50. |
F003478
|
[2] |
Screw
|
|
| 51. |
F009843
|
[1] |
Case
|
|
| 52. |
F009957
|
[1] |
Spacer
|
|
| 53. |
F008194
|
[1] |
Amplifier
|
|
