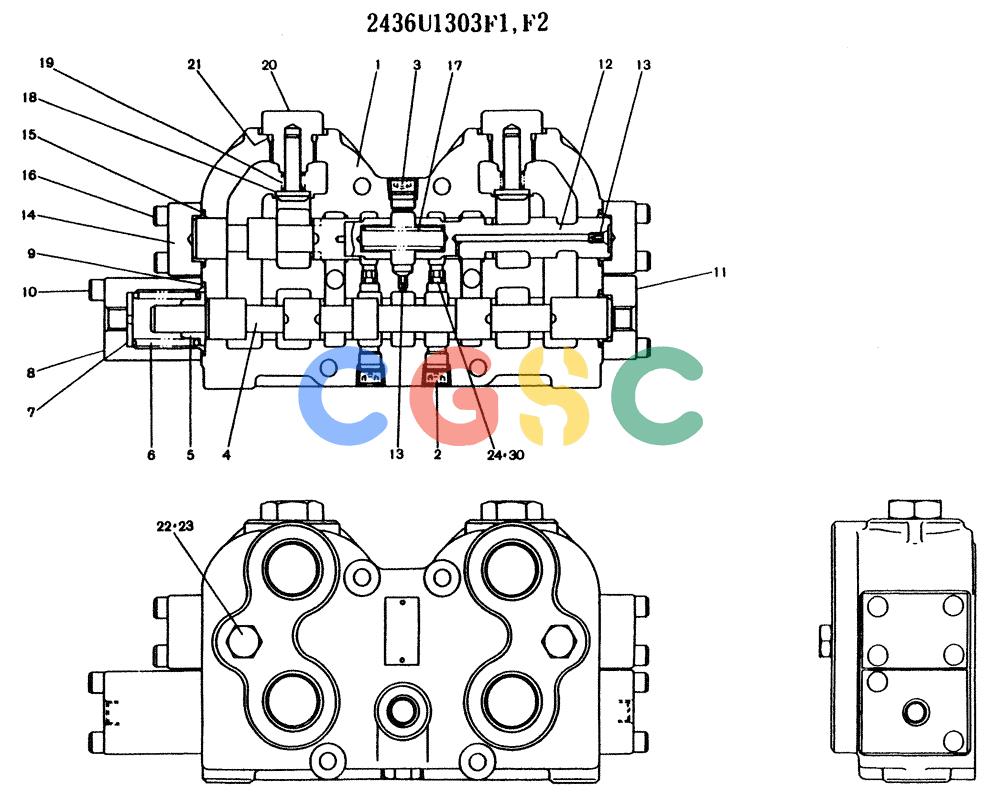

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-033) - VALVE ASSY, FLOW-DIVIDED Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
998 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1303F1 | [1] | PILOT VALVE | KOBASSY. FLOW DIVIDED |
| . . | 2436U1303F2 | [1] | VALVE ASSY. FLOW DIVIDED | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 3. | ZE82T06000 | [3] | PLUG | KOBPipe, 3/8" PT |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 5. | 2436U1303S5 | [1] | SEAT,SPRING | |
| 6. | 2436U1303S6 | [1] | SPRING | |
| 7. | 2436U1303S7 | [1] | STOPPER | |
| 8. | 2436U1303S8 | [1] | CAP | |
| 3. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 10. | ZS23C08070 | [2] | SCREW,Hex Socket Head, M8 x 70mm | KOBM08x1.25x70mm |
| 11. | 2436U1303S11 | [1] | CAP | |
| 12. | NSS | [2] | NOT SOLD SEPARAT | CONSPOOL |
| 13. | 2436U812S4 | [3] | PLUG ORIFICE | PLUG ORIFICE |
| 14. | 2436U1303S14 | [2] | CAP | |
| IS. | ZD12G03000 | [3] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 16. | ZS23C08030 | [10] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 17. | 2436U817SS | [1] | SPRING | |
| 18. | 2436U1303S18 | [2] | POPPET | |
| 19. | 2436U1303S19 | [2] | SPRING | |
| 20. | 2436U1303S20 | [2] | PLUG | |
| 21. | 2483U156S15 | [2] | O-RING | KOB Superseded by part number: 2436U562S8 |
| 22. | 2483U260S21 | [3] | PLUG | KOB |
| 23. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 24. | 2436U1303S24 | [2] | PLUG | KOBORIFICE(F2 ONLY) |
| 30. | 2436U817S23 | [2] | PLUG | HITORIFICE(F1 ONLY) |
