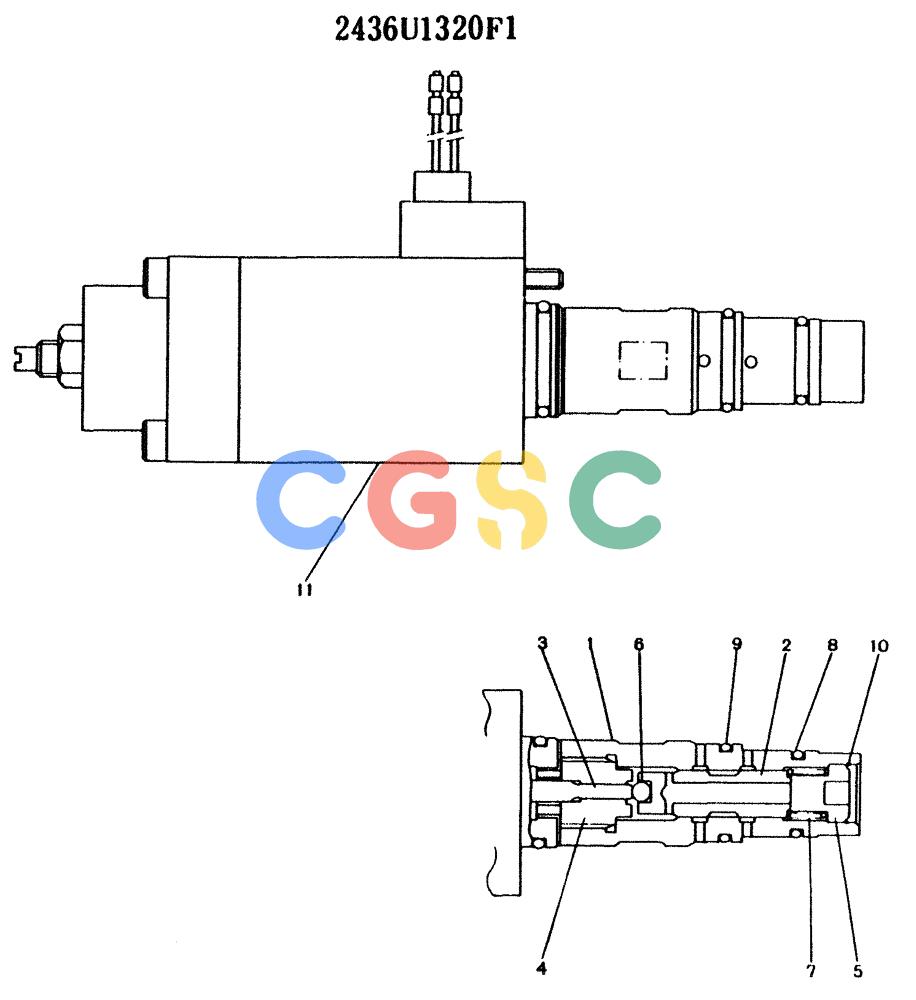

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-039) - VALVE ASSY, SOLENOID,P/N 2436U1320F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
635 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1320F1 | [1] | VALVE | KOBASSY.SOLENOID |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 8. | 2436U2137S113 | [1] | O-RING | KOB Superseded by part number: YN35V00004S362 |
| 9. | 2436R827S13 | [1] | O-RING | KOB Superseded by part number: YN35V00004S363 |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONC-RING |
| 11. | 2436U1320S11 | [1] | SOLENOID | KOB |
