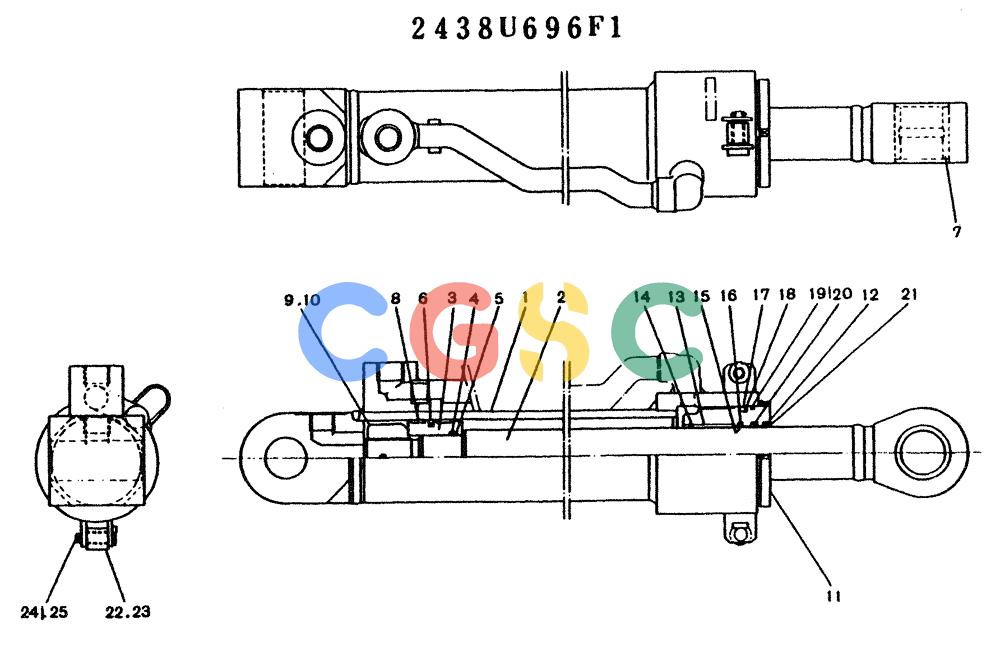

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-044) - CYLINDER ASSY, P/N 2438U696F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
674 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U696F1 | [1] | CYLINDER ASSY | |
| 1. | 2438U696S1 | [1] | TUBE, CYLINDER | TUBE, CYLINDER |
| 2. | 2438U696S2 | [1] | PISTON-ROD | PISTON-ROD |
| 3. | 2438U696S3 | [1] | MANIFOLD | MANIFOLD |
| 4. | ZD12P04000 | [1] | O-RING | KOB |
| 5. | ZD95P04000 | [2] | RING,BACK UP | |
| 6. | 2438U696S6 | [1] | SEAL | KOB |
| 7. | 2438U696S7 | [1] | BUSHING | KOB |
| 8. | 2438U696S8 | [2] | RING, WEAR | RING, WEAR |
| 9. | 2438U696S9 | [1] | HOLDER | HOLDER |
| 10. | ZP26D08050 | [1] | PIN | KOB |
| 11. | 2438U696S11 | [1] | COVER | COVER |
| 12. | 2438U673S20 | [1] | CLIP | KOB |
| 13. | 2438U673S16 | [1] | BUSHING | KOB Superseded by part number: R25N0003D3 |
| 14. | 2438U673S17 | [1] | CLIP | CLIP |
| 15. | 2438U696S15 | [1] | SEAL | |
| 16. | 2438U698S16 | [1] | O-RING | |
| 17. | ZD12P08000 | [1] | O-RING | KOBID 79.60 ± 0.69 x OD 92mm |
| 18. | 24838U42S12 | [1] | RING,BACK UP | |
| 19. | ZD12G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.73 x OD 90mm |
| 20. | 2438U696S20 | [1] | PACKING | KOB |
| 21. | 2438U673S19 | [1] | SEAL DUST | |
| 22. | 2438U696S22 | [1] | ROLLER BEARING | KOBROLLER Superseded by part number: 2438U696S22M |
| 23. | 2438U696S23 | [2] | BUSHING | KOB Superseded by part number: 2405U104D008008 |
| 24. | 2438U696S24 | [2] | PIN | KOB |
| 25. | ZP15K02012 | [2] | COTTER PIN | KOB Superseded by part number: ZP15K02035 |
| K. | 2438U696R100 | [1] | SEAL KIT | KOB(CONSISTS OF Ref: 15 TO 21) |
| K. | 2438U696R110 | [1] | REPAIR KIT | KOB(CONSISTS OF Ref: 4,5,6 & 8) |
