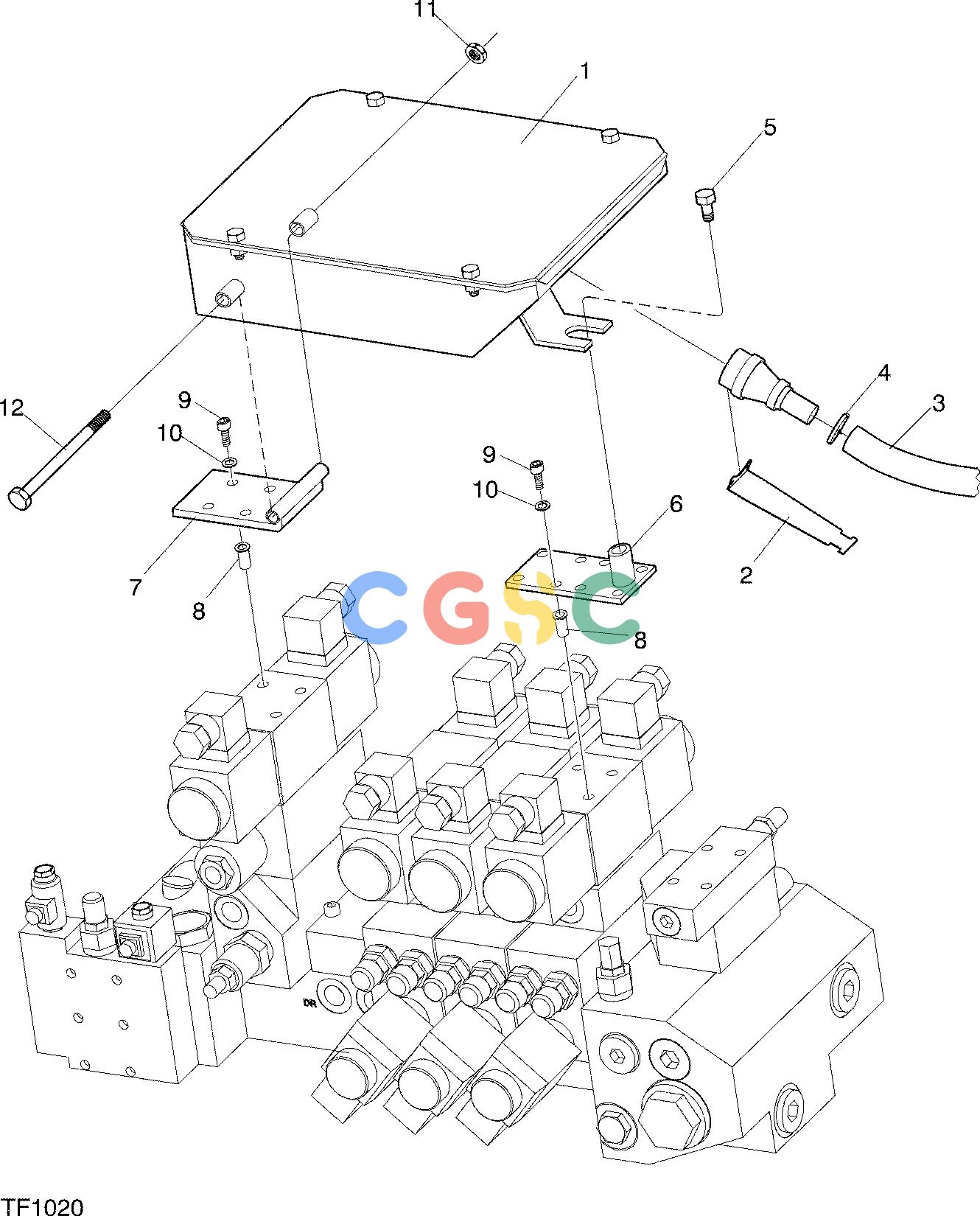

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE ELECTRICAL BOX MOUNTING, DAPT 513/FMG1000/LOC90 F048249 11 46 TF1020 [TF1020]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
858 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F027586
|
[1] |
ELECTRICAL BOX
|
|
| 2. |
F027665
|
[1] |
Bracket
|
|
| 3. |
F013806
|
[1] |
Hose
|
|
| 4. |
F003671
|
[1] |
Hose Clamp
|
|
| 5. |
F038353
|
[1] |
Screw
|
|
| 6. |
F045936
|
[1] |
Bracket
|
|
| 7. |
F045933
|
[1] |
Bracket
|
|
| 8. |
F039671
|
[8] |
Spacer
|
|
| 9. |
F040891
|
[8] |
Screw
|
|
| 10. |
F012616
|
[8] |
Washer
|
|
| 11. |
F003587
|
[1] |
Lock Nut
|
|
| 12. |
F019356
|
[1] |
Screw
|
|
| 13. |
F053452
|
[1] |
Plate
|
|
