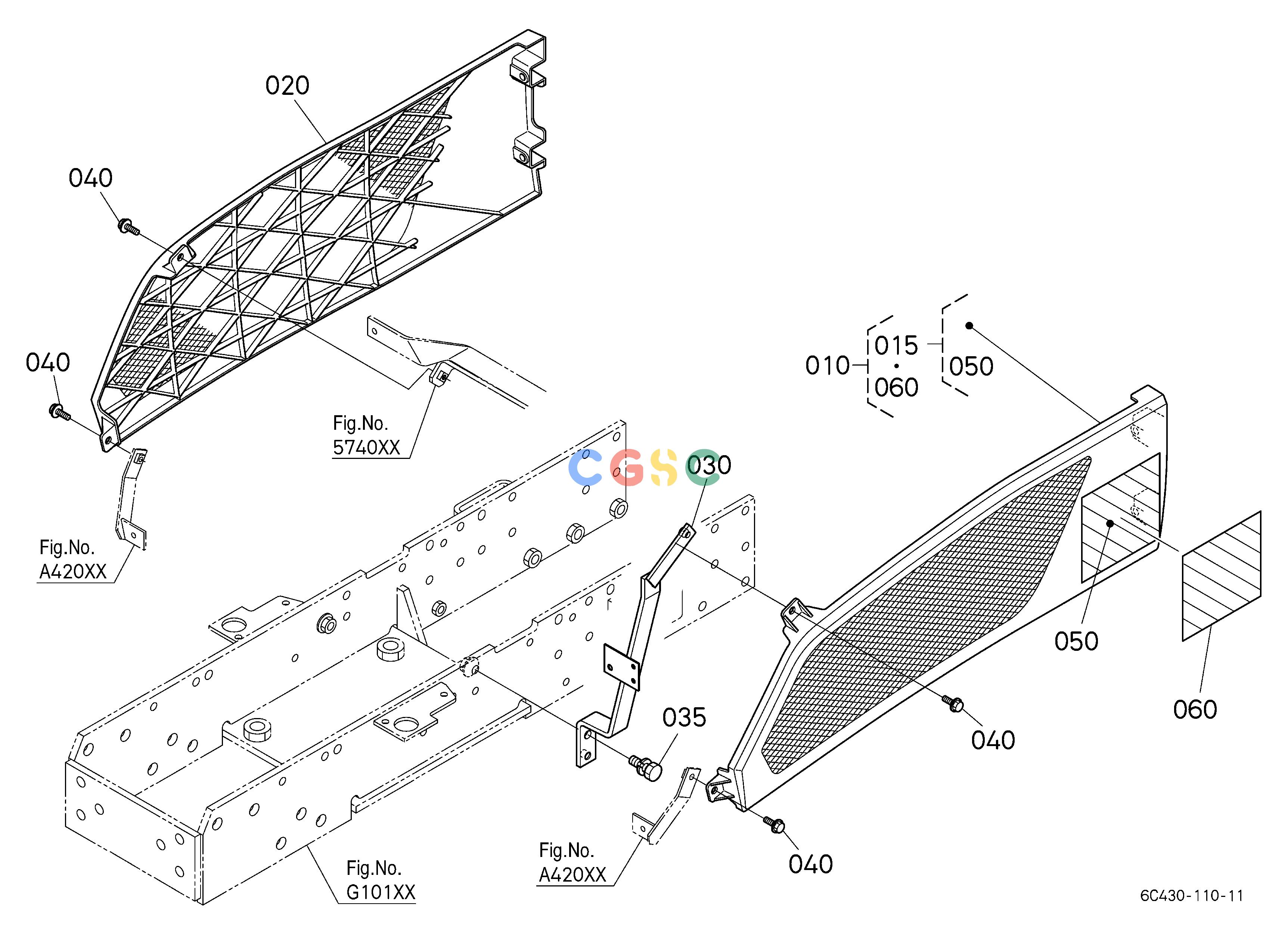

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43199302
|
[1] |
SKIRT,KIT B
|
1.2166(lbs); 0.553
|
| 015. |
6C43099302
|
[1] |
SKIRT,KIT A
|
0.9240(lbs); 0.420
|
| 020. |
6C43054352
|
[1] |
SKIRT(R)
|
0.8976(lbs); 0.408
|
| 030. |
6C41054382
|
[1] |
STAY(SKIRT,LH)
|
1.0714(lbs); 0.487
|
| 035. |
0113351030
|
[1] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 040. |
0175450620
|
[4] |
BOLT,FLANGE
|
0.0154(lbs); 0.007
|
| 050. |
6C43049650
|
[1] |
LABEL(START CAUTION)
|
0.0110(lbs); 0.005
|
| 050. |
6C43049652
|
[1] |
LABEL(START CAUTION)
|
0.0110(lbs); 0.005
|
| 060. |
6C43149650
|
[1] |
LABEL(START CAUTION)
|
0.0132(lbs); 0.006
|
