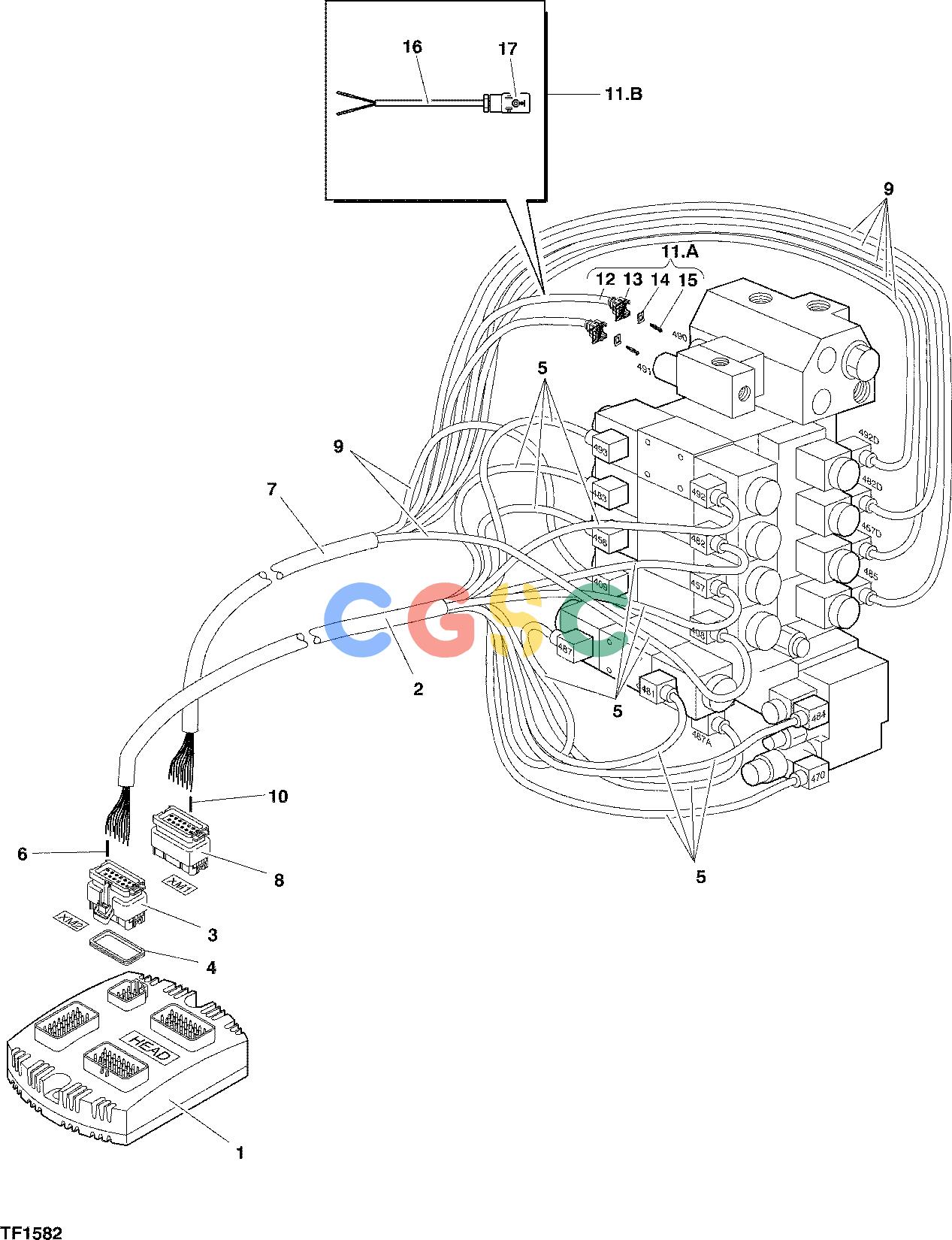

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE ELECTRICAL SYSTEM, TM10 F048249 11 56 TF1582 [TF1582]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F056541
|
[1] |
HEAD MODULE
|
|
| 2. |
F603824
|
[1] |
CABLE ASSY
|
|
| 3. |
F054941
|
[1] |
Connector
|
|
| 4. |
F057690
|
[2] |
Seal
|
|
| 5. |
F035038
|
[12] |
Cable
|
|
| 6. |
F053303
|
[23] |
CABLE LUG
|
|
| 7. |
F603827
|
[1] |
CABLE ASSY
|
|
| 8. |
F054940
|
[1] |
Connector
|
|
| 9. |
F035038
|
[5] |
Cable
|
|
| 10. |
F053303
|
[14] |
CABLE LUG
|
|
| 11.A. |
F603863
|
[2] |
CABLE ASSY
|
|
| 11.B. |
F603863
|
[2] |
Cable
|
|
| 12. |
F046748
|
[1] |
Cable
|
|
| 13. |
F024301
|
[1] |
Connector
|
|
| 14. |
F040655
|
[2] |
Gasket
|
|
| 15. |
F023007
|
[1] |
Sleeve
|
|
| 16. |
-------
|
[2] |
Cable
|
|
| 17. |
F038819
|
[2] |
Connector
|
|
