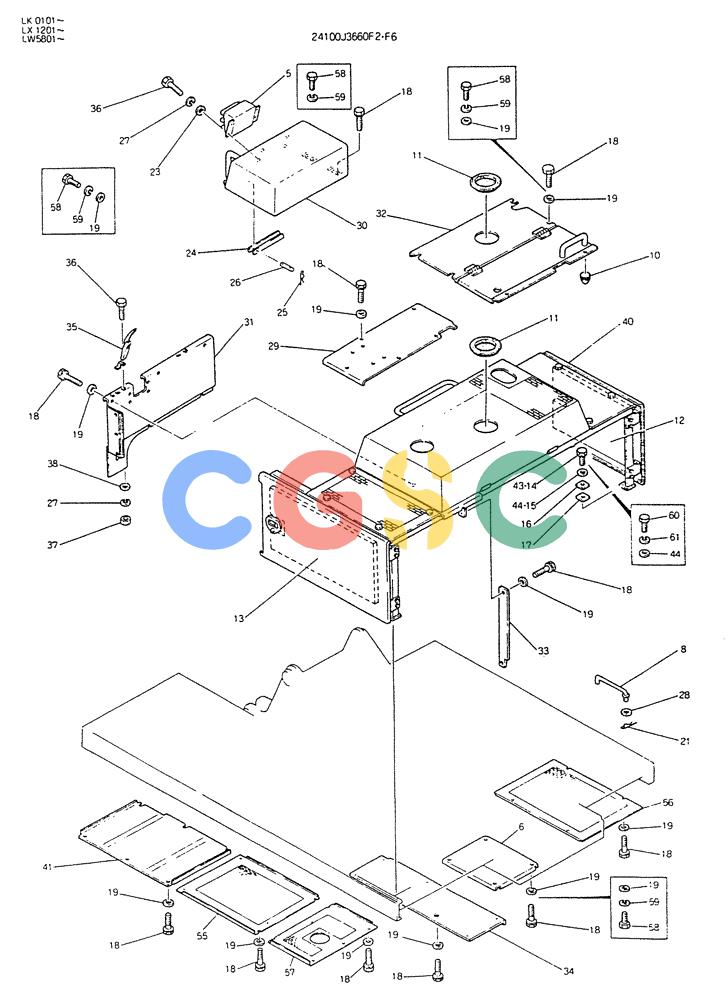

| . . | 24100J3660F2 | [1] | GUARD ASSY, Serial Range: LX1201--LX1206 | |
| . . | 24100J3660F6 | [1] | GUARD ASSY LX1207, Start Serial: - | |
| 5. | 2414P2094 | [1] | COVER | COVER |
| 6. | 2414P2384 | [1] | COVER | |
| 8. | 2416T6289D2 | [2] | STAY | KOB |
| 10. | 2416T8283 | [2] | RUBBER SLEEVE | KOB |
| 11. | 2420Z750 | [3] | GROMMET | GROMMET |
| 12. | 2479T335 | [1] | INSULATION, SOUND | |
| 13. | 2479T336 | [1] | INSULATION, SOUND | |
| 14. | ZM11C12025 | [4] | SCREW | KOBM12x1.75x25mm (Incls. Lockwasher), Serial Range: LW5801--LW6040 Superseded by part number: ZM12C12025 |
| 15. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm, Serial Range: LW5801~-LW6040 |
| 16. | B16T0186D1 | [4] | SHIM, 1.6 | |
| 17. | B16T0186D2 | [4] | SHIM, 2.3 | |
| 18. | ZM11C10025 | [36] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher), Serial Range: LX1201--LX1206 Superseded by part number: ZM12C10025 |
| . . | ZM11C10025 | [49] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher), Serial Range: LX1201--LX1206 Superseded by part number: ZM12C10025 |
| 19. | 2418T5373C2 | [32] | WASHER | KOBID 11 x OD 30 x Th 3.20mm, Serial Range: LX1201--LX1206 Superseded by part number: 2418T12346 |
| . . | 2418T5373C2 | [45] | WASHER | KOBID 11 x OD 30 x Th 3.20mm LX1207, Start Serial: - Superseded by part number: 2418T12346 |
| 21. | 2419R9D3 | [2] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 23. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 24. | 2416T7379 | [1] | STAY | STAY |
| 25. | 2419R9D2 | [2] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 26. | ZP45X08027 | [2] | PIN | KOB |
| 27. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 28. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 29. | 2414P2810 | [1] | COVER | |
| 30. | 2414N1559 | [1] | COMPLETE TOOL BOX | KOB |
| 31. | 2414N1836 | [1] | COVER | |
| 32. | 2414N1792 | [1] | COVER | |
| 33. | 2414T1893 | [1] | COVER | |
| 34. | 2414P2819 | [1] | COVER | |
| 35. | 2406T1583 | [2] | LATCH | KOB |
| 36. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 37. | ZN17C08007 | [1] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 38. | ZW16P08000 | [4] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 40. | 24100J3661F2 | [1] | GUARD ASSY,SEE FIG - 02-022 | |
| 41. | 2414P2512 | [1] | COVER | COVER |
| 43. | ZM11C12030 | [4] | SCREW | KOBM12x1.75x30mm (Incls. Lockwasher), Serial Range: LX1201--LX1219 Superseded by part number: ZM12C12030 |
| 44. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm, Start Serial: LX1201- Superseded by part number: 2418T12345 |
| 55. | 2414T2003 | [1] | COVER LX1207, Start Serial: - | COVER LX1207, Start Serial: - |
| 56. | 2414T1975 | [1] | COVER LX1207, Start Serial: - | COVER LX1207, Start Serial: - |
| 57. | 2414T2002 | [1] | COVER LX1207, Start Serial: - | COVER LX1207, Start Serial: - |
| 58. | ZS18C10025 | [49] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm LK0101- to |
| 59. | ZW26X10000 | [49] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm LK0101- to |
| 60. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm LK0101- to |
| 61. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm LK0101- to |
