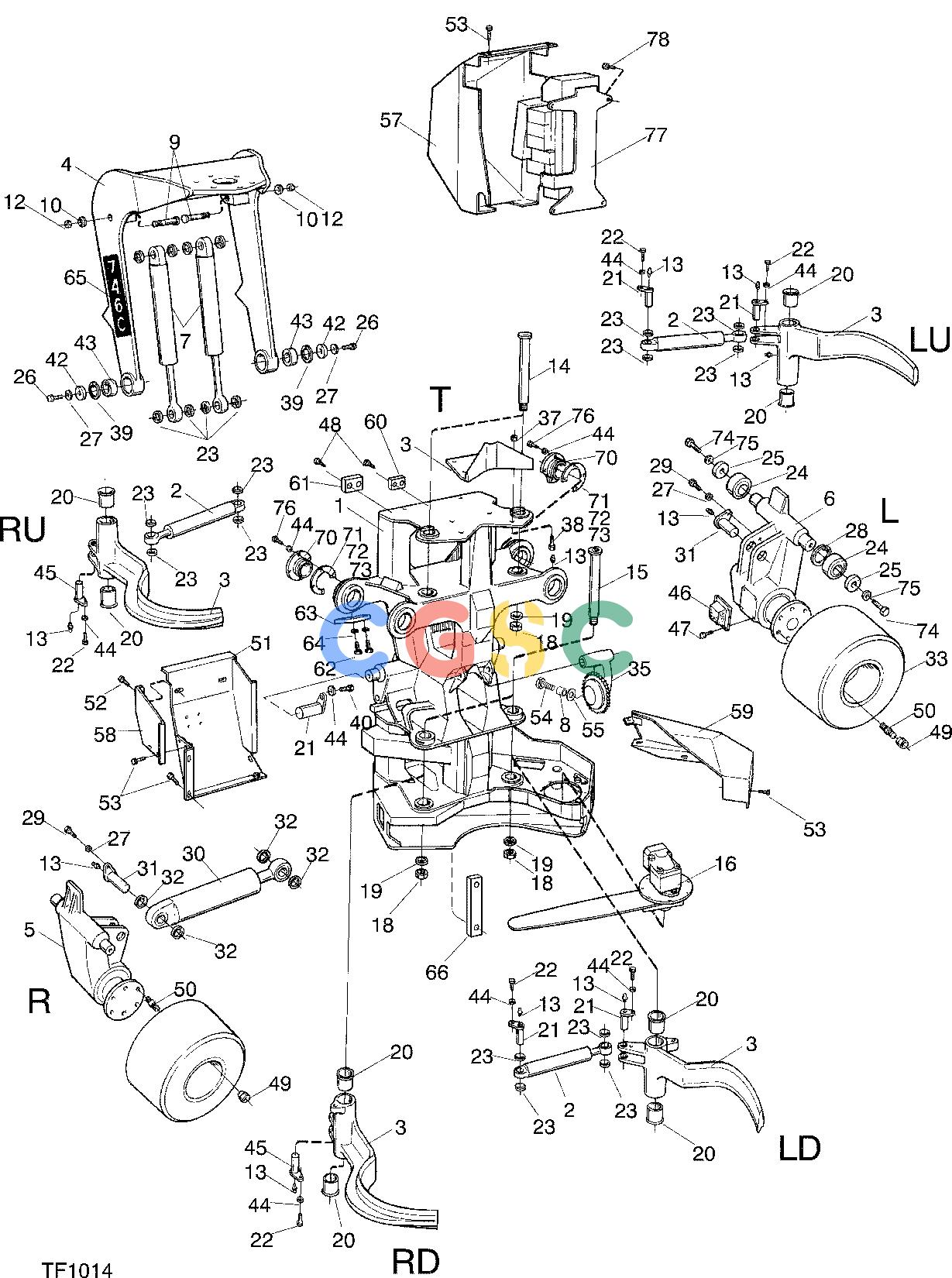

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE HARVESTER HEAD 746C F048249 11 2 TF1014 [TF1014]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
122 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F045904
|
[1] |
HARVESTER UNIT
|
|
| 1. |
F045236
|
[1] |
Frame
|
|
| 2. |
F012663
|
[4] |
Cylinder
|
|
| 2. |
F034341
|
[4] |
Cylinder
|
|
| 3. |
F038519
|
[1] |
DELIMBING TOOL
|
|
| 3. |
F050388
|
[1] |
DELIMBING TOOL
|
|
| |
F012673
|
[2] |
Knife
|
|
| |
F049264
|
[2] |
DELIMBING TOOL
|
|
| |
F012675
|
[1] |
Knife
|
|
| |
F049265
|
[1] |
DELIMBING TOOL
|
|
| |
F012693
|
[1] |
Knife
|
|
| |
F050387
|
[1] |
DELIMBING TOOL
|
|
| |
F018204
|
[1] |
Knife
|
|
| 3. |
F601744
|
[1] |
DELIMBING TOOL
|
|
| |
F049264
|
[2] |
Knife
|
|
| |
F049265
|
[1] |
Knife
|
|
| |
F050387
|
[1] |
Knife
|
|
| |
F601717
|
[1] |
Knife
|
|
| 3. |
F039612
|
[1] |
DELIMBING TOOL
|
|
| 3. |
F052475
|
[1] |
DELIMBING TOOL
|
|
| |
F032892
|
[2] |
Knife
|
|
| |
F051476
|
[2] |
Sign
|
|
| |
F032896
|
[1] |
Knife
|
|
| |
F052477
|
[1] |
DELIMBING TOOL
|
|
| |
F032890
|
[1] |
Knife
|
|
| |
F052478
|
[1] |
DELIMBING TOOL
|
|
| |
F018204
|
[1] |
DELIMBING KNIFE
|
|
| 4. |
F046967
|
[1] |
Link Kit
|
|
| 4. |
F046958
|
[1] |
Link Kit
|
|
| 5. |
F042038
|
[1] |
WHEEL MOUNTING ASSY
|
|
| 6. |
F042034
|
[1] |
WHEEL MOUNTING ASSY
|
|
| 7. |
F037427
|
[2] |
Cylinder
|
|
| 8. |
F600151
|
[1] |
Sleeve
|
|
| 9. |
F029974
|
[2] |
Pin
|
|
| 10. |
F031177
|
[4] |
Spacer
|
|
| 12. |
F031184
|
[2] |
Lock Nut
|
|
| 13. |
F005626
|
[18] |
GREASE NIPPLE
|
|
| 14. |
F018241
|
[2] |
Pin
|
|
| 15. |
F018242
|
[2] |
Pin
|
|
| 16. |
F046946
|
[1] |
SAW TRANSMISSION
|
|
| 18. |
F018838
|
[4] |
Lock Nut
|
|
| 19. |
F012697
|
[4] |
Washer
|
|
| 20. |
F046322
|
[8] |
BEARING BUSHING
|
|
| 21. |
F046013
|
[8] |
Pin
|
|
| 22. |
F012699
|
[8] |
Screw
|
|
| 23. |
F011186
|
[20] |
Sleeve
|
|
| 24. |
F015049
|
[4] |
SPHERICAL BEARING
|
|
| 25. |
F039611
|
[4] |
Washer
|
|
| 26. |
F003432
|
[2] |
Screw
|
|
| 27. |
F002805
|
[8] |
Lock Washer
|
|
| 28. |
F003375
|
[2] |
CIRCLIP
|
|
| 29. |
F003540
|
[2] |
Screw
|
|
| 30. |
F014647
|
[1] |
Cylinder
|
|
| 31. |
F014673
|
[2] |
Pin
|
|
| 32. |
F014675
|
[4] |
SPACER RING
|
|
| 33. |
F018200
|
[2] |
FEED WHEEL
|
|
| 33. |
F013128
|
[2] |
FEED ROLL
|
|
| 33. |
F601631
|
[2] |
FEED WHEEL
|
|
| 33. |
F012677
|
[2] |
SPIKED ROLL
|
|
| 33. |
F041585
|
[2] |
FEED WHEEL
|
|
| 33. |
F062021
|
[2] |
FEED WHEEL
|
|
| 35. |
F021390
|
[1] |
MEASURING ROLL
|
|
| 37. |
F011198
|
[4] |
Lock Nut
|
|
| 38. |
F003544
|
[4] |
Screw
|
|
| 39. |
F015955
|
[2] |
CIRCLIP
|
|
| 40. |
F003530
|
[2] |
Screw
|
|
| 42. |
F049138
|
[2] |
Washer
|
|
| 43. |
F013894
|
[2] |
SPHERICAL BEARING
|
|
| 44. |
F005551
|
[18] |
Lock Washer
|
|
| 45. |
F011193
|
[2] |
Pin
|
|
| 46. |
F019359
|
[2] |
DAMPER
|
|
| 47. |
F007787
|
[8] |
Screw
|
|
| 48. |
F043165
|
[6] |
Screw
|
|
| 49. |
F012692
|
[12] |
WHEEL NUT
|
|
| 50. |
F012691
|
[12] |
PIN SCREW
|
|
| 51. |
F045899
|
[1] |
Cover
|
|
| 52. |
F005596
|
[5] |
Screw
|
|
| 53. |
F040644
|
[8] |
Screw
|
|
| 54. |
F003544
|
[1] |
Screw
|
|
| 55. |
F003340
|
[%] |
Washer
|
|
| 57. |
F045989
|
[1] |
Case
|
|
| 58. |
F045902
|
[1] |
PROTECTION PLATE
|
|
| 59. |
F045223
|
[1] |
Cover
|
|
| 60. |
F045888
|
[1] |
Bracket
|
|
| 61. |
F045887
|
[1] |
Bracket
|
|
| 62. |
F003493
|
[4] |
Screw
|
|
| 63. |
F046969
|
[2] |
Bracket
|
|
| 64. |
F002805
|
[4] |
Lock Washer
|
|
| 65. |
-------
|
[1] |
Decal Kit
|
|
| 66. |
F045950
|
[1] |
Bracket
|
|
| 70. |
F039569
|
[2] |
Cap
|
|
| 71. |
F039573
|
[2] |
Shim
|
|
| 72. |
F039574
|
[2] |
Shim
|
|
| 73. |
F039575
|
[2] |
Shim
|
|
| 74. |
F003503
|
[4] |
Screw
|
|
| 75. |
F005012
|
[4] |
Lock Washer
|
|
| 76. |
F003536
|
[8] |
Screw
|
|
| 77. |
F045892
|
[1] |
Bracket
|
|
| 78. |
F003541
|
[4] |
Screw
|
|
| |
F033710
|
[1] |
LOCKING FLUID
|
|
