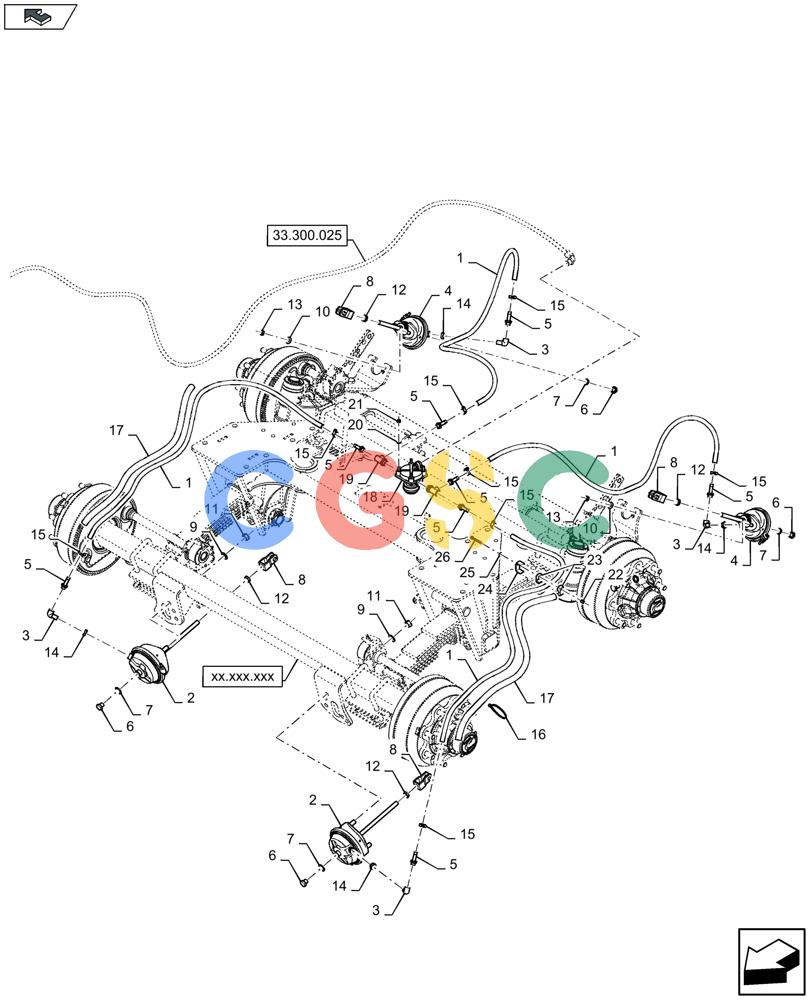

凯斯零件查询(LB424S XL) - BALER (11/16-) (33.300.015) - PNEUMATIC BRAKES - TANDEM AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84014198
|
[1] |
HOSE,18mm OD x 3.5mm Thk
|
ZED
L = 6,3 M Superseded by part number: 87389513
|
| 2. |
84014961
|
[2] |
CYLINDER
|
ZED
|
| 3. |
84100254
|
[4] |
HYD CONNECTOR
|
ZED
|
| 4. |
84078896
|
[2] |
CYLINDER
|
ZED
|
| 4. |
84320807
|
[2] |
CYLINDER
|
ZED
|
| 5. |
9512534
|
[8] |
HYD CONNECTOR
|
PA
|
| 6. |
84014311
|
[4] |
PLUG
|
ZED
|
| 7. |
84014312
|
[4] |
RING
|
ZED
|
| 8. |
84014245
|
[4] |
YOKE
|
ZED
|
| 9. |
140048
|
[4] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 10. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 11. |
331192
|
[4] |
NUT,M16 x 1.5, Cl 8
|
ZED
Superseded by part number: 10790521
|
| 12. |
364164
|
[4] |
THIN NUT,Thin, M16 x 1.5, Cl 04
|
ZED
Superseded by part number: 10791411
|
| 13. |
330327
|
[4] |
NUT,M12 x 1.5, Cl 8
|
NH
|
| 14. |
10791411
|
[4] |
THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND
|
IMO
|
| 15. |
150064
|
[8] |
CLAMP
|
ZED
|
| 16. |
86566990
|
[8] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 17. |
84078637
|
[1] |
WRAPPER
|
ZED
L = 1,9 M
|
| 18. |
48024683
|
[1] |
PNEUMATIC VALVE
|
ZED
|
| 19. |
48027774
|
[2] |
COUPLING
|
ZED
|
| 20. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 21. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 22. |
87716662
|
[1] |
NUT
|
ZED
|
| 23. |
433007
|
[2] |
CLAMP
|
ZED
|
| 24. |
433100
|
[1] |
SUPPORT
|
ZED
|
| 25. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 26. |
338413
|
[1] |
BOLT,Hex, M6 x 60mm, Cl 8.8
|
NH
|
