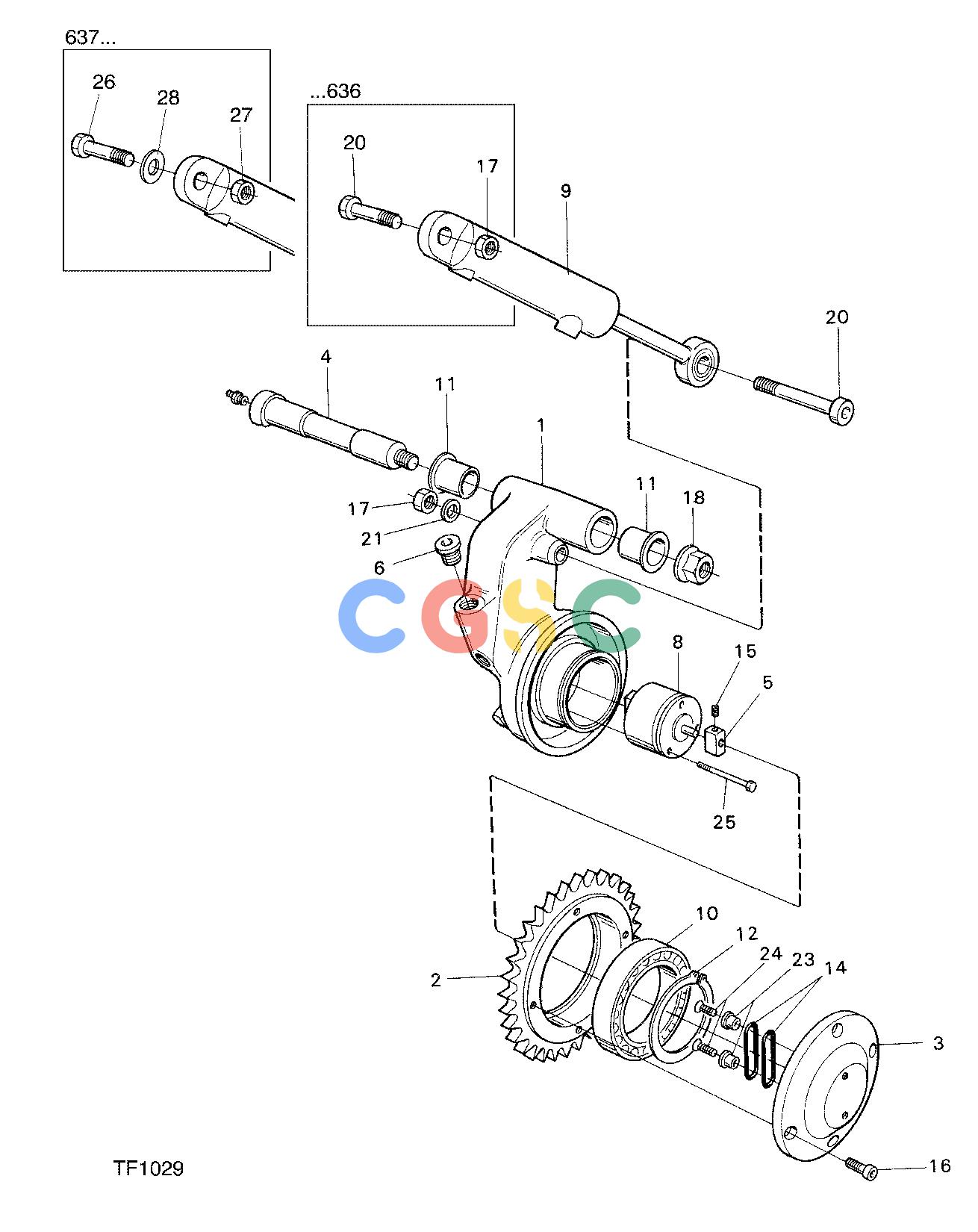

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE MEASURING ROLL F048249 11 62 TF1029 [TF1029]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1021 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F021390
|
[1] |
MEASURING ROLL
|
|
| |
F601874
|
[1] |
MEASURING ROLL
|
|
| 1. |
F013291
|
[1] |
Arm
|
|
| 2. |
F038522
|
[1] |
MEASURING ROLL
|
|
| 2. |
F032886
|
[1] |
MEASURING ROLL
|
|
| 2. |
F049312
|
[1] |
MEASURING ROLL
|
|
| 3. |
F013230
|
[1] |
CENTRE PLATE
|
|
| 4. |
F012793
|
[1] |
Shaft
|
|
| 5. |
F011483
|
[1] |
CARRIER
|
|
| 6. |
F011246
|
[1] |
Plug
|
|
| 8. |
F013227
|
[1] |
LENGTH SENSOR
|
|
| 8. |
F045844
|
[1] |
PULSE SENSOR
|
|
| 8. |
F060369
|
[1] |
LENGTH SENSOR
|
|
| 9. |
F005553
|
[1] |
Hydraulic Cylinder
|
|
| 10. |
F005555
|
[1] |
Ball Bearing
|
|
| 11. |
F046323
|
[2] |
BEARING BUSHING
|
|
| 12. |
F003362
|
[1] |
CIRCLIP
|
|
| 13. |
F005626
|
[1] |
GREASE NIPPLE
|
|
| 13. |
F003732
|
[1] |
GREASE NIPPLE
|
|
| 14. |
F005635
|
[2] |
O-Ring
|
|
| 15. |
F002903
|
[1] |
STOP SCREW
|
|
| 16. |
F012683
|
[4] |
Screw
|
|
| 17. |
F027813
|
[2] |
Lock Nut
|
|
| 18. |
F005494
|
[1] |
Lock Nut
|
|
| 20. |
F012795
|
[2] |
Bolt
|
|
| 21. |
F005551
|
[2] |
Lock Washer
|
|
| 22. |
F005166
|
[1] |
SEAL RING
|
|
| 23. |
F013228
|
[2] |
Retainer
|
|
| 24. |
F013225
|
[2] |
Screw
|
|
| 25. |
F012791
|
[3] |
Screw
|
|
| 26. |
F013226
|
[1] |
Screw
|
|
| 27. |
F022059
|
[1] |
Lock Nut
|
|
| 28. |
F003170
|
[1] |
Washer
|
|
