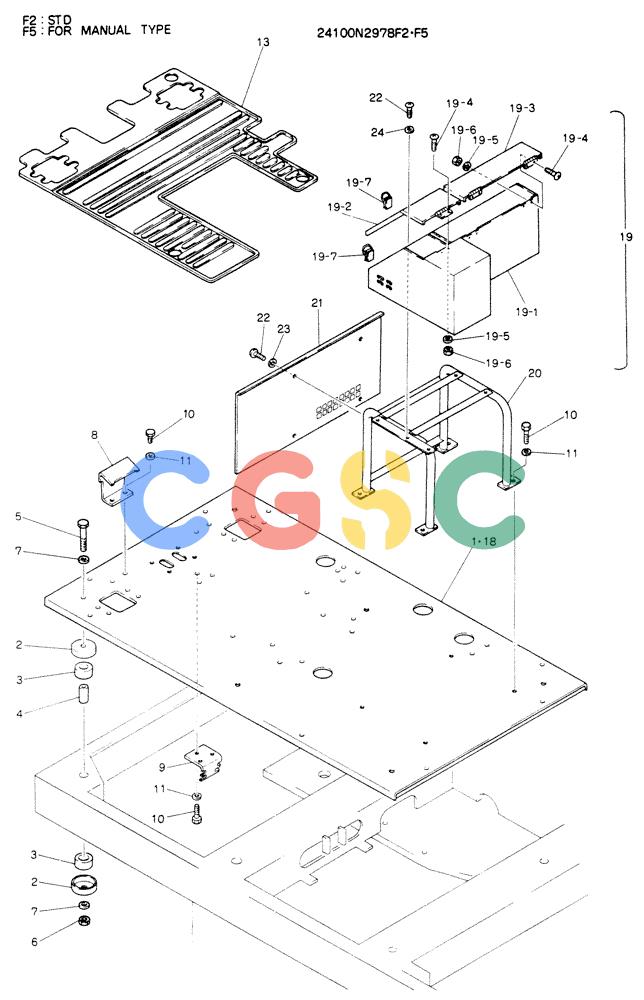

神钢零件查询(K904EL) - EXCAVATOR ASN LX1401 (1/86-12/03) (02-006) - PLATE ASSY, FLOOR, P/N 24100N2978F2, F5 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
757 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2978F2 | [1] | PLATE ASSY,FLOOR | |
| 1. | 2422N837 | [1] | PLATE, FLOOR | PLATE, FLOOR |
| 2. | 2414T2673 | [12] | COVER | KOB |
| 3. | 2416Z253D2 | [12] | RUBBER SLEEVE | KOB |
| 4. | 2418T9226D5 | [6] | SPACER | KOB |
| 5. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 6. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 7. | R16T0152D2 | [12] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 8. | 2422T547 | [2] | STEP | |
| 9. | 2416P8622 | [1] | BRACKET | KOB |
| 10. | ZS18C10025 | [11] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 11. | ZW26X10000 | [11] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | 2427U327D1 | [1] | MAT, FLOOR | MAT, FLOOR |
| 19. | 24100P1137F1 | [1] | BOX ASSY | BOX ASSY |
| 19-1. | 2414N1952 | [1] | BOX | BOX |
| 19-2. | 2414P3968 | [1] | COVER | COVER |
| 19-3. | 2414P3969 | [1] | COVER | COVER |
| 19-4. | ZS31C05010 | [6] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 19-5. | ZW26X05000 | [6] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 19-6. | ZN18C05004 | [6] | NUT | KOBM05x0.8mm |
| 19-7. | 2421Z295 | [2] | LOCK | KOB |
| 20. | 2416N3246 | [1] | STAND,BOX | |
| 21. | 2414P3963 | [1] | COVER | |
| 22. | ZS31C06012 | [9] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 23. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 24. | ZW16X06000 | [5] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| . . | 24100N2978F5 | [1] | PLATE ASSY,FLOOR | |
| 18. | 2422N842 | [1] | PLATE ,FLOOR | |
