神钢零件查询(K905) - EXCAVATOR BTW LP0601 - LP1600 (1/82-12/03) (02-011) - GURAD ASSY (24100J4702F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
633 次

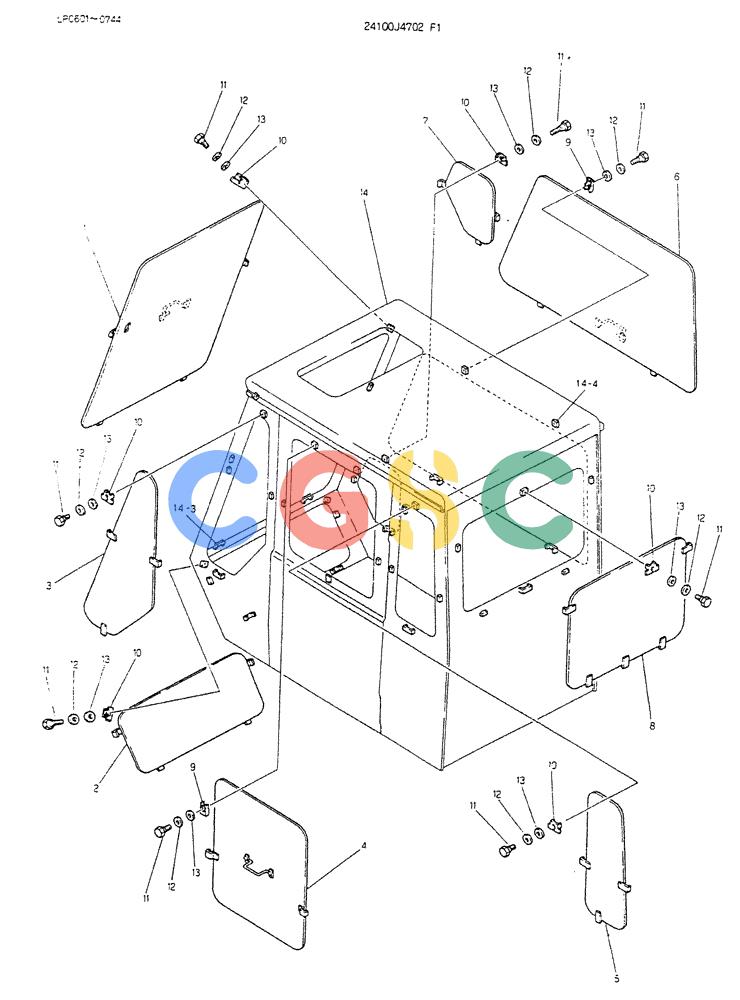

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4702F1 | [1] | GUARD ASSY | GUARD ASSY |
| 1. | 2414P3165 | [1] | GUARD | KOB |
| 2. | 2414P2441 | [1] | GUARD | GUARD |
| 3. | 2414P2024 | [1] | GUARD | GUARD |
| 4. | 2414P2025 | [1] | GUARD | GUARD |
| 5. | 2414P2026 | [1] | GUARD | GUARD |
| 6. | 2414P2313 | [1] | GUARD | GUARD |
| 7. | 2414P2029 | [1] | GUARD | GUARD |
| 8. | 2414P2442 | [1] | GUARD | GUARD |
| 9. | 2432T1440 | [4] | CLAMP | KOB |
| 10. | 2432T1439 | [8] | CLAMP | KOB |
| 11. | 2420T3968 | [12] | BOLT | KOB |
| 13. | R16T0137D3 | [12] | WASHER | KOBCone Disk Spring -- ID 10.2 x OD 20 x Th 0.8mm |
| 15. | 2418T5373C2 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 14. | 2427J1514 | [1] | CAB | |
| 14-3. | 2416T7030 | [10] | BRACKET | BRACKET |
| 14-4. | 2416T7974 | [12] | BLOCK, TAPPED BLOCK, TAPPED | BLOCK, TAPPED BLOCK, TAPPED |
