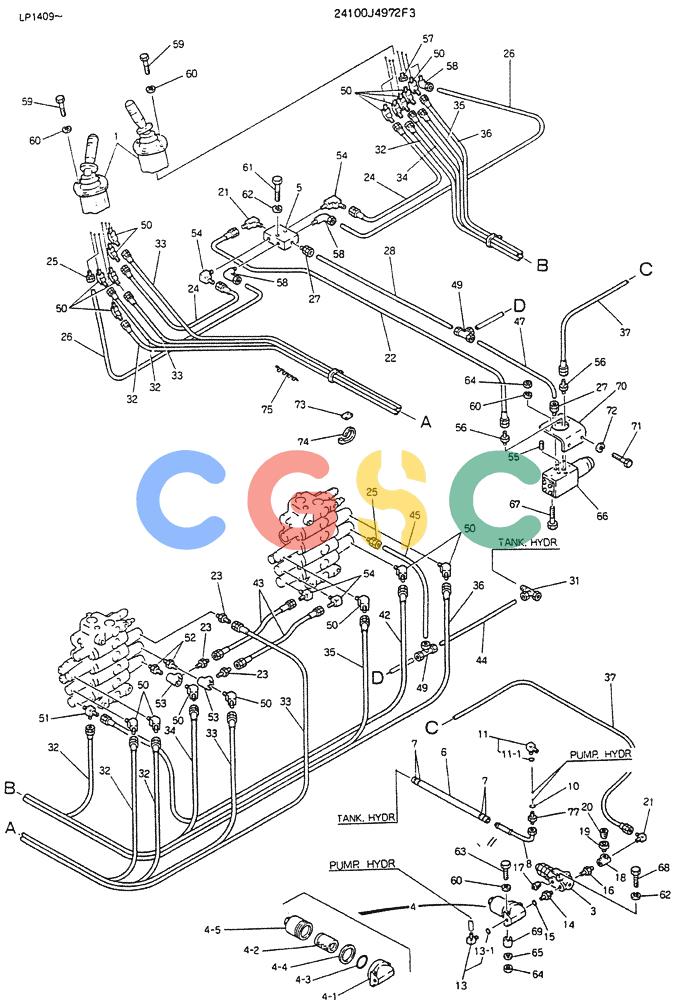

| . . | 24100J4972F3 | [1] | REMOTE-CONTROL ASSY | |
| 1. | 2436U944F3 | [2] | PILOT VALVE | KOB |
| 3. | P36P0048F3 | [1] | VALVE, RELIEF | |
| 4. | 2446R151F1 | [1] | ELEMENT | KOBFILTER, LINE Superseded by part number: 2446R183F1 |
| 4-1. | 2446R15151 | [1] | HEAD | |
| 4-2. | R36P0019 | [1] | HYDRAULIC OIL FILTER | KOB |
| 4-3. | 45Z91084 | [1] | O-RING | |
| 4-4. | 2446R151S4 | [1] | RING | KOB |
| 4-5. | 2446R151S5 | [1] | CASE | KOB |
| 5. | 2416T4212 | [1] | BLOCK | BLOCK |
| 6. | R18P0168D29 | [1] | FLEXIBLE HOSE | KOB |
| 7. | ZC15X03300 | [4] | CLIP | KOB |
| 8. | 2418P7062 | [1] | TUBE | TUBE |
| 10. | ZD12P02240 | [1] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 11. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 11-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 1 3. | ZH32X06008 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 1/2", O-Ring | KOB90° -- 3/8"PFx1/2"PFx40mm Long (Same as ZD12P02400) |
| 13-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 14. | 2444T1793 | [1] | HYD CONNECTOR | KOB |
| 15. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 16. | ZG22E06000 | [1] | HYD CONNECTOR | KOB |
| 17. | ZE72T06000 | [1] | PLUG | PLUG |
| 18. | ZG52U06000 | [1] | TEE | KOB |
| 19. | ZG22H06004 | [1] | | |
| 20. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 21. | ZH32Z016000 | [2] | ELBOW | |
| 22. | 2420R537D240 | [1] | HOSE,9.53mm ID x 2400mm L | KOB |
| 23. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 24. | 2420R349D11 | [2] | HOSE | HOSE |
| 25. | ZH21K08004 | [2] | HYD CONNECTOR | KOB |
| 26. | ZX15K08130 | [2] | FLEXIBLE HOSE | KOB |
| 27. | ZH21K08006 | [2] | HYD CONNECTOR | KOB |
| 28. | ZX15K08110 | [1] | KIT | KOB |
| 31. | 2444Z2086D1 | [1] | TEE | KOB |
| 32. | 2420R3490290 | [3] | HOSE | |
| 33. | 2420R349D16 | [2] | HOSE | KOBHOSE 160mm Long (6-9/32 in) Superseded by part number: HX21E04330DX |
| 34. | 2420R349D310 | [1] | HOSE | KOB3100mm Long (122-3/64 in) Superseded by part number: HX21E04310DX |
| 35. | 2420R349D8 | [1] | HOSE | HOSE |
| 36. | 2420R349D3 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D390 |
| 37. | 2420R5370280 | [1] | HOSE | |
| 42. | 2420R349D130 | [1] | FLEXIBLE HOSE | KOB1/4" PF, 1300mm Long (51-3/16 in) |
| 43. | 2420R349D025 | [2] | HOSE | KOBFLEXIBLE HOSE Superseded by part number: HX21E04025DX, 77254021 |
| 44. | ZX15K08008 | [1] | TUBE, NYLON | TUBE, NYLON |
| 45. | ZX15K08025 | [1] | KIT | KOB |
| 47. | ZX15K08080 | [1] | TUBE, NYLON | TUBE, NYLON |
| 49. | ZH51K08000 | [2] | TEE | KOB |
| 50. | ZH42Z04000 | [17] | ELBOW | KOB45° -- 1/4"PFx1/4"PTx40mm Long (male both ends) |
| 51. | 2444Z2079 | [1] | HYD CONNECTOR | KOBTEE |
| 52. | ZG22E04000 | [2] | HYD CONNECTOR | KOB |
| 53. | ZG52U04000 | [2] | TEE | KOB |
| 54. | ZH32Z04000 | [4] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 55. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 56. | ZH22Z06000 | [2] | CONNECTION | KOB |
| 57. | 2444Z2226 | [1] | CONNECTOR | CONNECTOR |
| 58. | ZH31K08004 | [3] | ELBOW | KOB |
| 59. | ZS23C06020 | [8] | SCREW,Hex Socket Head, M6 x 20mm | KOBM06x1.0x20mm Superseded by part number: ZS28C06020 |
| 60. | ZW26X06000 | [11] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 61. | ZS16C08035 | [2] | CAPSCREW | CAPSCREW |
| 62. | ZW26X08000 | [3] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 63. | 2420T3804 | [1] | CAPSCREW | CAPSCREW |
| 64. | ZN16C06005 | [3] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 65. | ZW16K06000 | [1] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 66. | 24100U322F2 | [1] | SOLENOID VALVE | KOB |
| 67. | ZS23C06025 | [2] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 68. | ZS16C08055 | [1] | SCREW | KOB Superseded by part number: ZS18C08055 |
| 69. | 2418T7100 | [1] | SPACER | SPACER |
| 70. | 2418T10562 | [1] | PLATE | |
| 71. | ZS13C10030 | [2] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 72. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 73. | 2420T3483 | [7] | GROMMET | KOB |
| 74. | 2432Z290 | [18] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 75. | 2414Z1990025 | [4] | GUARD | |
| 77. | ZF23F22012 | [1] | HYD CONNECTOR | KOB |
