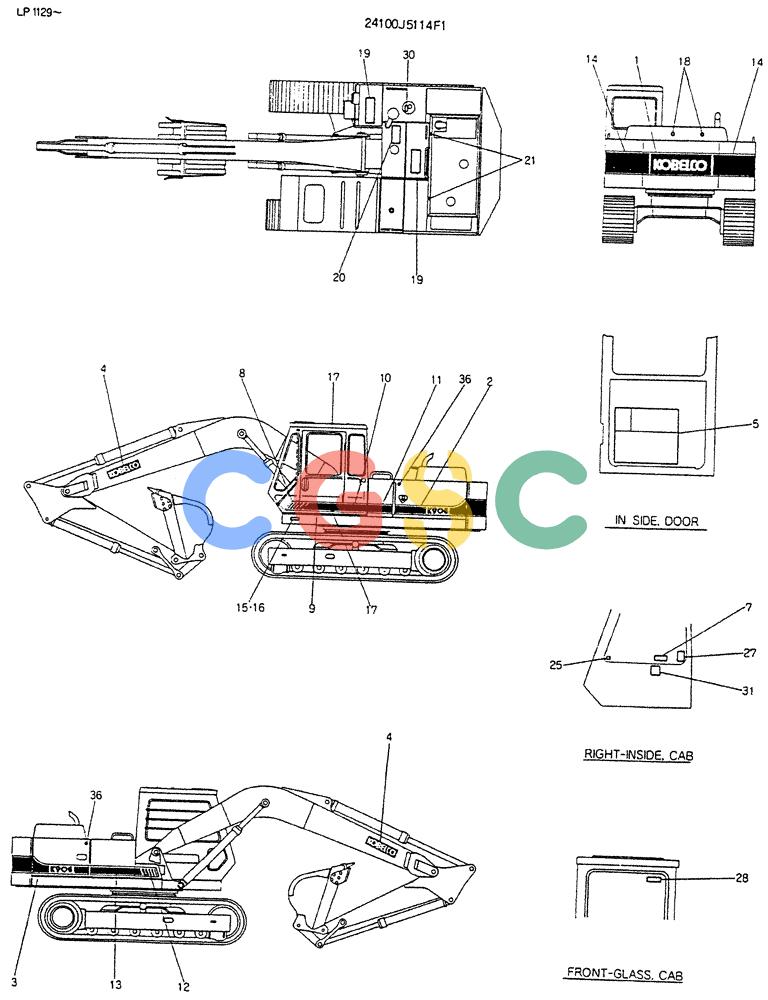

神钢零件查询(K905LC) - EXCAVATOR BTW YP0115 - YP0301 (1/85-12/03) (10-006) - LABLE,NAME- PLATE P/N 24100J5114F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5114F1 | [1] | LABEL,NAME PLATE | |
| 1. | 2432X333 | [1] | TYPE PLATE | KOB |
| 2. | 2432J1064 | [1] | LABEL | KOB |
| 3. | 2432J1063 | [1] | LABEL | KOB |
| 4. | 2432J669 | [2] | LABEL | KOB |
| 5. | 2432J972 | [1] | LABEL | LABEL |
| 7. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 8. | 2432T1717 | [1] | LABEL | KOB |
| 9. | 2432T1718 | [1] | LABEL | KOB |
| 10. | 2432T1719 | [1] | LABEL | KOB |
| 11. | 2432T1716D1 | [1] | LABEL | KOB |
| 12. | 2432T1720 | [1] | LABEL | KOB |
| 13. | 2432T1716D2 | [1] | LABEL | KOB |
| 14. | 2432T1715D1 | [2] | LABEL | KOB |
| 15. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 16. | 2432T1530 | [1] | IDENTITY PLATE | KOB |
| 17. | 2432T1142 | [2] | LABEL | KOB |
| 18. | 2432T1176 | [2] | LABEL | LABEL |
| 19. | 2427Z329D2 | [2] | SHEET | KOBAnti-Slip (400x150mm) |
| 20. | 2427Z329 | [1] | SHEET | KOBAnti-Slip (300x150mm) |
| 21. | 2418T10311 | [2] | PLATE | KOBØ30mm round Superseded by part number: 2418T27058 |
| 25. | 2432T1753 | [1] | LABEL | KOBDecal, Kobelco Operation Superseded by part number: YN20T01407P1 |
| 27. | 2432T1754 | [1] | LABEL | LABEL |
| 28. | 2432T892 | [1] | LABEL | KOB |
| 30. | 2432T884 | [1] | LABEL | KOB |
| 31. | 2432T1759 | [1] | PLATE | KOB |
| 36. | 2432T2250 | [6] | LABEL | KOB |
