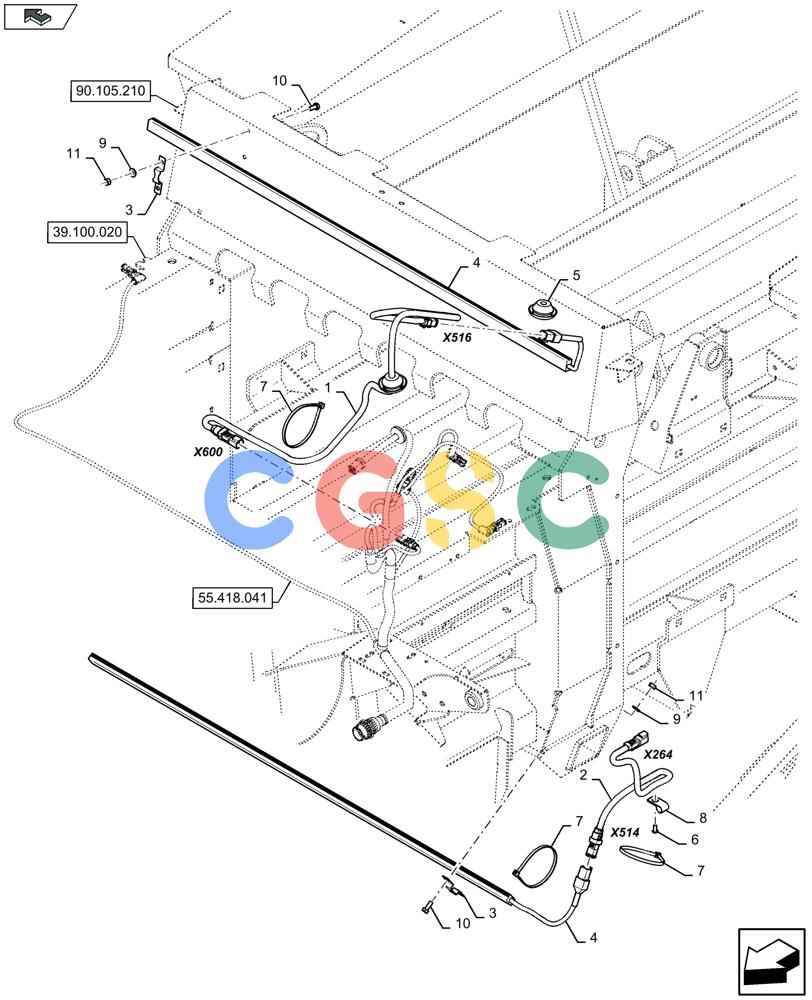

凯斯零件查询(LB424S XL) - BALER (11/16-) (55.404.080) - KNOTTER AND NEEDLE LIGHTS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
889 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47966393
|
[1] |
WIRE HARNESS
|
ZED
|
| 2. |
47966394
|
[1] |
WIRE HARNESS
|
ZED
|
| 3. |
47533109
|
[4] |
SUPPORT
|
ZED
|
| 4. |
47506757
|
[2] |
COURTESY LIGHT
|
ZED
|
| 5. |
82016008
|
[1] |
GROMMET
|
BAS
|
| 6. |
445394
|
[1] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 7. |
86566990
|
[5] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 8. |
858956
|
[1] |
CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 9. |
322357
|
[8] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 10. |
86508568
|
[8] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 11. |
9706755
|
[8] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
