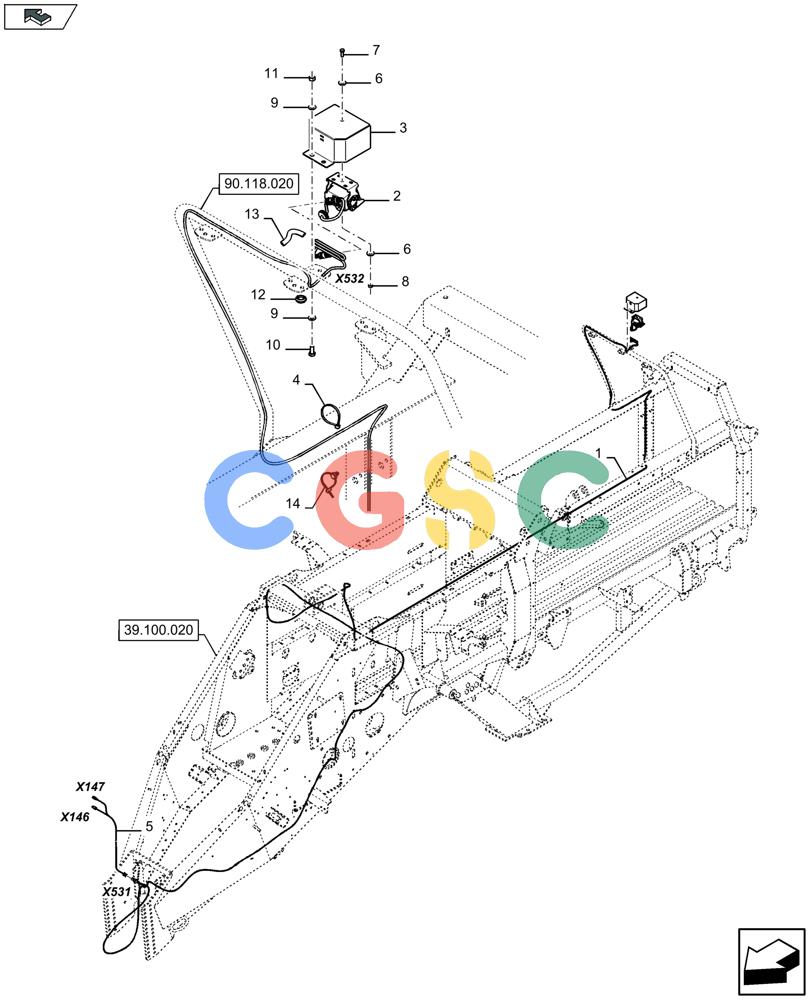

凯斯零件查询(LB424S XL) - BALER (11/16-) (55.418.060) - CAMERA KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84481016
|
[1] |
WIRE HARNESS
|
ZED
|
| 1. |
47966335
|
[1] |
WIRE HARNESS
|
ZED
|
| 2. |
84315054
|
[1] |
VIDEO CAMERA
|
SM
, Serial Range: -C136 Superseded by part number: 47768902
|
| 2. |
47768902
|
[1] |
VIDEO CAMERA
|
BER
, Start Serial: D137
|
| 3. |
84474591
|
[1] |
GUARD
|
ZED
|
| 4. |
86566989
|
[1] |
CABLE TIE,208mm L
|
ZED
CABLE STRAP
|
| 5. |
84136553
|
[1] |
WIRE HARNESS
|
ZED
|
| 5. |
47533755
|
[1] |
WIRE HARNESS
|
ZED
, Start Serial: D097
|
| 6. |
84188433
|
[2] |
WASHER,6.15mm ID x 18mm OD x 2mm Thk
|
BAS
|
| 7. |
10977834
|
[1] |
BOLT,Hex, M5 x 16mm, Cl 10.9, Full Thd
|
HIT
Superseded by part number: 10977831
|
| 8. |
86508813
|
[1] |
NUT,M5, Cl 8
|
ZED
Superseded by part number: 10788811
|
| 9. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 10. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 12. |
81844483
|
[1] |
PLUG,.73" x 1"
|
A
Superseded by part number: 81819333
|
| 13. |
47427651
|
[1] |
CONDUIT
|
CUR
L = 0,1 M
|
| 14. |
84292754
|
[2] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
