| . . | 2438U419F1 | [1] | LINK CHAIN CONSISTS OF THE FOLLOWING PARTS | LINK CHAIN CONSISTS OF THE FOLLOWING PARTS |
| . . | 2438U419F2 | [1] | LINK CHAIN CONSISTS OF THE FOLLOWING PARTS | LINK CHAIN CONSISTS OF THE FOLLOWING PARTS |

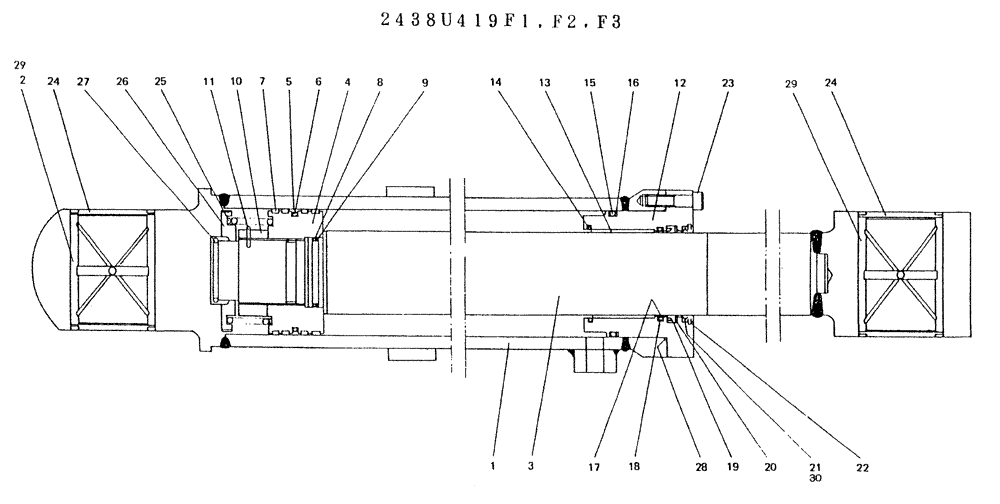

| . . | 2438U419F3 | [1] | CYLINDER CONSISTS OF THE FOLLOWING PARTS | CYLINDER CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U419S1 | [1] | TUBE, CYLINDER | TUBE, CYLINDER |
| 2. | 2438U419S2 | [2] | BUSHING | BUSHING |
| 3. | 2438U419S3 | [1] | PISTON-ROD | PISTON-ROD |
| 4. | 2438U419S4 | [1] | PISTON | KOB |
| 5. | R45P0049D10 | [1] | SEAL | KOB |
| 6. | R45P0051D17 | [1] | O-RING | O-RING |
| 7. | R45T0014D9 | [4] | WEAR RING | KOB |
| 8. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 9. | ZD85P09500 | [2] | RING-BACKUP | |
| 10. | 2438U419S10 | [1] | NUT | KOB |
| 11. | 2438U324S35 | [1] | RING | KOB |
| 12. | 2438U419S12 | [1] | HEAD, CYLINDER | HEAD, CYLINDER |
| 13. | 2438U419S13 | [1] | BUSHING | KOB Superseded by part number: 2438U324S15 |
| 14. | 2438U419S14 | [1] | CLIP | KOBRING, SNAP Superseded by part number: 2438U323S22 |
| 15. | ZD12G17000 | [1] | O-RING,169.30mm ID x 180.70mm OD x 5.70mm | KOB |
| 16. | ZD85G17000 | [1] | BACK-UP RING | KOB |
| 17. | R45P0050D4 | [1] | SEAL | KOB |
| 18. | R45P0051D7 | [1] | O-RING | KOB |
| 19. | 2418U130D27 | [1] | KIT | KOBROD PACKING |
| 20. | 2445R206D16 | [1] | BACK-UP RING | KOBRING,BACK-UP Superseded by part number: 2438U324S22 |
| 21. | 2418U131D25 | [1] | SEAL | KOBSEAL, DUST Superseded by part number: 2438U180-24 |
| 22. | 2438U419S22 | [1] | SNAP RING | KOBRING, SNAP Superseded by part number: 2438U1260S13 |
| 23. | ZS23C16060 | [16] | SCREW,Hex Socket Head, M16 x 60mm | KOBM16x2.0x60mm |
| 24. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
| 25. | 2438U419S25 | [1] | SPRING | |
| 26. | 2438U419S26 | [1] | CUSHION PLATE | |
| 27. | 2438U419S27 | [1] | LOCKING RING | KOB |
| 28. | 2438U419S28 | [1] | O-RING | KOBO-RING Superseded by part number: 2438U1029S18 |
| 29. | 2438U419S29 | [2] | BUSHING(F2,F3 ONLY) | |
| 30. | 2438U324S42 | [1] | SEAL | KOB |
| . . | 24038R92F1 | [1] | REPAIR KIT | KOBCONSISTS OF REF 5,6,7,8 AND 9) |
| . . | 24038R93F1 | [1] | REPAIR KIT | KOBCONSISTS OF REF15.16.17.18.19,20, 21 AND 28) |
| . . | 2438U419R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 15.16,17.18,19.20, 28 AND 30) |
