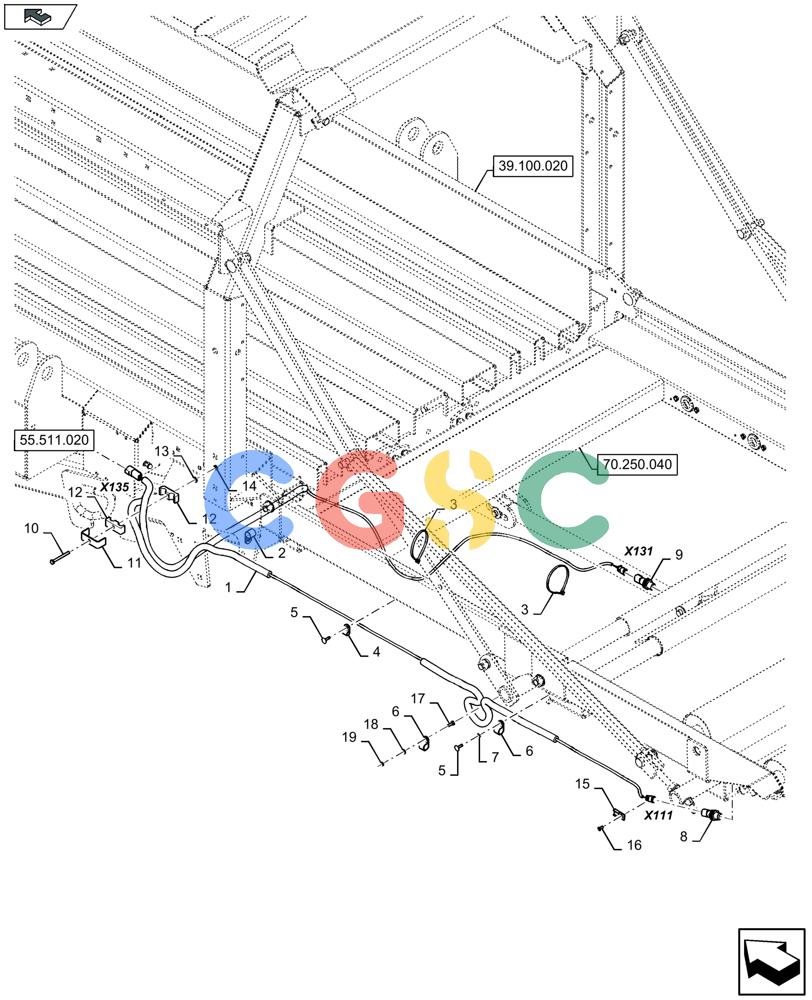

凯斯零件查询(LB424S XL) - BALER (11/16-) (55.422.010) - ROLLER BALE CHUTE, ELECTRICITY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
835 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84273460
|
[1] |
WIRE HARNESS
|
ZED
, Serial Range: -C136
|
| 1. |
47834433
|
[1] |
WIRE HARNESS
|
ZED
, Start Serial: D137
|
| 2. |
87010656
|
[2] |
CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type
|
GI
|
| 3. |
86566990
|
[1] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 4. |
9507807
|
[1] |
CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 5. |
9512290
|
[1] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 6. |
84818443
|
[1] |
CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 7. |
9824326
|
[2] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
, Serial Range: -C136
|
| 8. |
87342073
|
[1] |
SENSOR
|
GI
B011 - Sensor Bale Drop, Serial Range: -C136
|
| 8. |
84391774
|
[1] |
SENSOR
|
ZED
B011 - Sensor Bale Drop, Start Serial: D137
|
| 10. |
338413
|
[1] |
BOLT,Hex, M6 x 60mm, Cl 8.8
|
NH
|
| 11. |
84814948
|
[1] |
SUPPORT
|
ZED
|
| 12. |
430356
|
[2] |
CLAMP
|
ZED
|
| 13. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 14. |
412152
|
[1] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 15. |
84058832
|
[1] |
CLIP
|
ZED
, Serial Range: -C136
|
| 16. |
445394
|
[1] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
, Serial Range: -C136 Superseded by part number: 151-573
|
| 17. |
374891
|
[1] |
CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8
|
ZED
, Start Serial: D147
|
| 19. |
9706755
|
[1] |
NUT,M6, Cl 8
|
NH
, Start Serial: D147 Superseded by part number: 86500688
|
