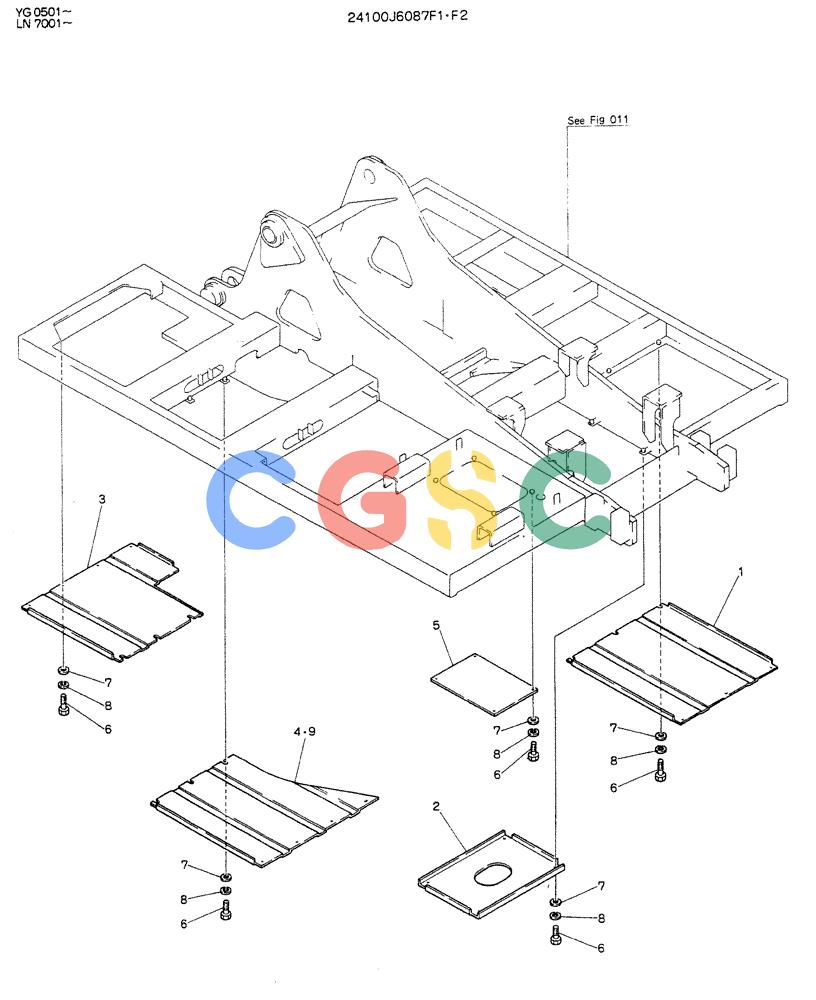

神钢零件查询(K907D) - EXCAVATOR ASN LN7001 (1/86-12/03) (02-019) - COVER ASSY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
846 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6087F1 | [1] | COVER, UNDER, Serial Range: YG0501--YG0617 | |
| . . | 24100J6087F2 | [1] | COVER, UNDER, Start Serial: YG0618 | |
| 1. | 2414P2989 | [1] | COVER | KOB |
| 2. | 2414P2988 | [1] | | |
| 3. | 2414P3894 | [1] | | |
| 5. | 2414T2687 | [1] | COVER | KOB |
| 4. | 2414P3895 | [1] | COVER, Serial Range: YG0501--YG0617 | COVER, Serial Range: YG0501--YG0617 |
| 6. | ZS18C12030 | [28] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm, Serial Range: YG0501--YG0617 |
| . . | ZS18C12030 | [29] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm, Start Serial: YG0618 |
| 7. | 2418T12345 | [28] | WASHER | KOBID 13 x OD 30 x Th 3.2mm, Serial Range: YG0501--YG0617 |
| . . | 2418T12345 | [29] | WASHER | KOBID 13 x OD 30 x Th 3.2mm, Start Serial: YG0618- |
| 8. | ZW26X12000 | [28] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Serial Range: YG0501--YG0617 |
| . . | ZW26X12000 | [29] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Start Serial: YG0618- |
| 9. | 2414P4068 | [1] | COVER, Start Serial: YG0418- | |
