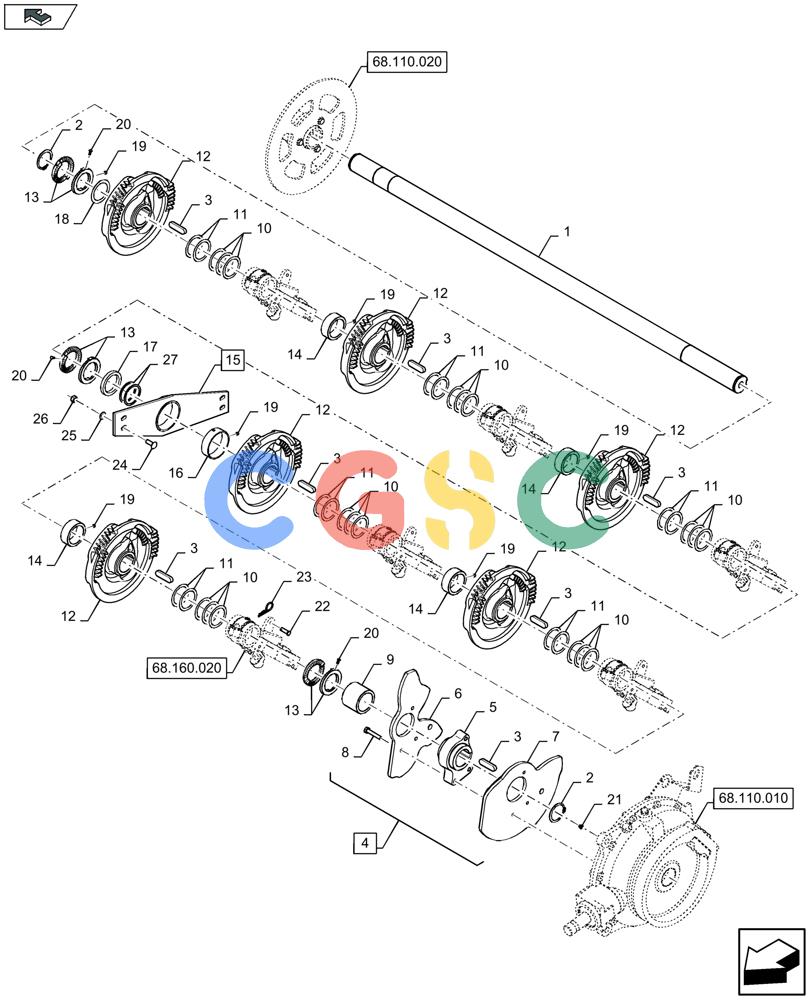

凯斯零件查询(LB424S XL) - BALER (11/16-) (68.140.010) - KNOTTER SHAFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84244066
|
[1] |
SHAFT
|
ZED
|
| 1. |
84244170
|
[1] |
SHAFT
|
ZED
|
| 2. |
327911
|
[2] |
CIRCLIP,55mm ID
|
BHB
|
| 3. |
412077
|
[1] |
KEY
|
ZED
|
| 4. |
87667868
|
[1] |
CAM
|
ZED
Incl 5 - 8
|
| 4. |
87667869
|
[1] |
CAM
|
ZED
Incl 5 - 8
|
| 5. |
84473995
|
[1] |
SPLINED COUPLING
|
ZED
|
| 6. |
87668106
|
[1] |
CAM
|
ZED
|
| 7. |
87667865
|
[1] |
CAM
|
ZED
|
| 7. |
87667867
|
[1] |
CAM
|
ZED
|
| 8. |
412151
|
[3] |
BOLT,M10 x 1.5 x 61.58mm, Cl 8.8
|
NH
Superseded by part number: 73161469
|
| 9. |
87692029
|
[1] |
BUSHING,58.5mm ID x 76.1mm OD x 60.8mm L
|
ZED
|
| 10. |
87519492
|
[1] |
SHIM,56mm ID x 72mm OD x 0.2mm Thk
|
ZED
|
| 11. |
87519491
|
[1] |
SHIM,57.15mm ID x 76.2mm OD x 0.8mm Thk
|
ZED
|
| 12. |
84019174
|
[6] |
CAM
|
ZED
|
| 13. |
9838865
|
[6] |
SPACER
|
ZED
|
| 14. |
87645412
|
[4] |
BUSHING,58.5mm ID x 76.1mm OD x 28.5mm L
|
ZED
|
| 14. |
87665384
|
[2] |
BUSHING
|
ZED
, Start Serial: D048
|
| 15. |
47370311
|
[1] |
SUPPORT
|
ZED
Incl 16
|
| 16. |
9838824
|
[1] |
BRONZE BUSHING
|
ZED
|
| 17. |
84165514
|
[1] |
BUSHING,58.5mm ID x 76.1mm OD x 10mm L
|
ZED
|
| 18. |
9838834
|
[1] |
SHIM,57.15mm ID x 76.2mm OD x 0.8mm Thk
|
ZED
|
| 19. |
84022935
|
[1] |
SET SCREW,Hex Soc, M8 x 8
|
ZED
|
| 20. |
9838867
|
[12] |
DRIVE SCREW,Rd Hd, #10 x 1/2", U Type
|
ZED
|
| 21. |
62161
|
[1] |
LUBE NIPPLE,M8 x 1.25, Str
|
NH
|
| 22. |
358885
|
[1] |
CLEVIS PIN,M10 x 25
|
NH
Superseded by part number: 80358885
|
| 23. |
370539
|
[1] |
COTTER PIN,4.4mm x 52.8mm L
|
ZED
, Serial Range: -C161
|
| 23. |
87383335
|
[1] |
COTTER PIN,4mm x 68mm L
|
TTF
, Start Serial: D162
|
| 24. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 25. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 26. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 27. |
9838835
|
[2] |
SHIM,57.15mm ID x 76.2mm OD x 0.25mm Thk
|
ZED
, Start Serial: D162
|
