神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (11-015) - VALVE ASSY, HOLDING, 2436U1311 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
900 次

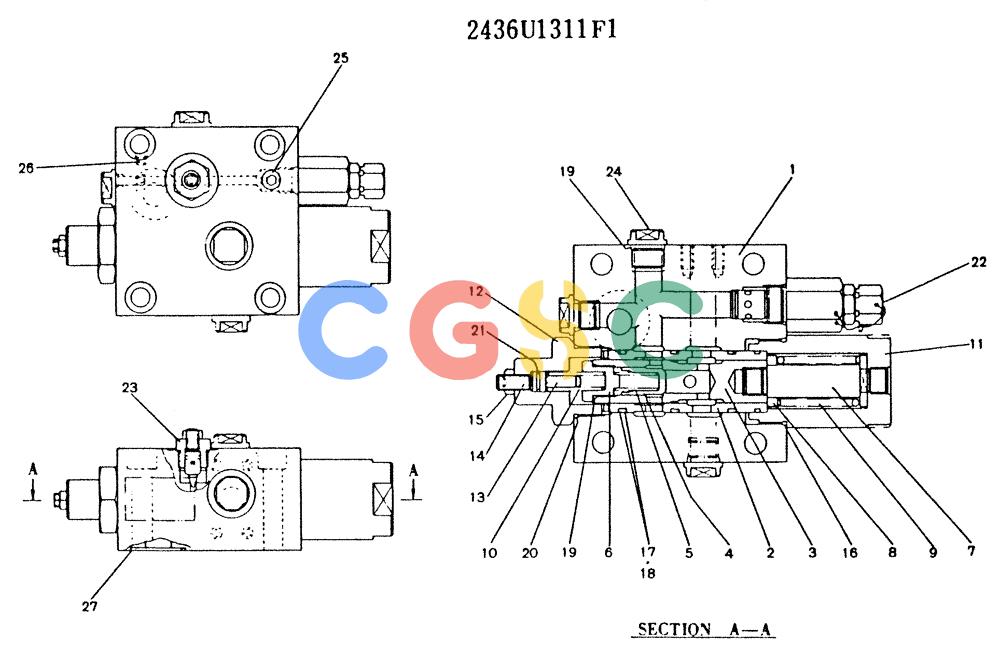

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1311F1 | [1] | VALVE ASSY, HOLDING, CONSISTS OF THE FOLLOWING PARTS | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | 2436U1311S2 | [1] | SOCKET | |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE |
| 5. | 2483U276S4 | [1] | SPRING | |
| 6. | 2436U1311S6 | [1] | PLUG | |
| 7. | 2436U1311S7 | [1] | SEAT, SPRING | |
| 8. | 2436U1311S8 | [1] | SEAT, SPRING | |
| 9. | 2436U1311S9 | [1] | SPRING | SPRING |
| 10. | 2436U1311S10 | [1] | SPRING | KOBSPRING |
| 11. | 2436U1311S11 | [1] | PLUG | |
| 12. | 2436U1311S12 | [1] | PLUG | |
| 13. | 2436U1311S13 | [1] | SPRING SEAT | KOBSEAT, SPRING |
| 14. | 2436U1311S14 | [1] | SETSCREW | |
| 15. | ZN16C10006 | [1] | NUT | NUT |
| 16. | ZD12G05000 | [1] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOBID 49.40 ± 0.45 x OD 55mm |
| 17. | ZD12G03500 | [4] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 18. | ZD85G03500 | [3] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 19. | ZD12P01800 | [5] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 20. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 21. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 22. | 2436R858F1 | [1] | VALVE PRESSURE RELIE | KOBASSY, OVER-LOAD |
| 23. | 2436R859F1 | [1] | VALVE | KOBVALVE ASSY, STOP |
| 24. | 2436U1327S27 | [4] | PLUG | |
| 25. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 26. | 2436U279S3 | [3] | PLUG | KOB |
| 27. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
